Manual Pipe Bender
Section Bending MachineA Manual Pipe Bender is a hand-operated tool used to bend pipes and tubes into desired angles and shapes without the need for electricity or hydraulics. It is widely used in plumbing, automotive, construction, and fabrication industries where precise pipe bending is required.
Working Principle
The pipe is placed into the appropriate die (groove) of the bender. By pulling the lever arm, pressure is applied to the pipe, which bends smoothly around the die without flattening or damaging it.
The pipe is placed into the appropriate die (groove) of the bender. By pulling the lever arm, pressure is applied to the pipe, which bends smoothly around the die without flattening or damaging it.
Advantages
- Easy to use and cost-effective.
- No power supply required.
- Produces clean and accurate bends.
- Portable and suitable for on-site work.
From ₹
16,000
To
35,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Pipe Diameter Range | 10mm-25mm |
| Bending Formers (inc.) | 3/8" ,1/2" ,9/16" ,5/8" , 3/4" ,7/8" , 1'' |
| Bending Formers (mm) | 10mm,12mm,14mm,16mm,19mm,22mm,25mm |
| External Diameter of Half Circle | 80mm,100mm,125mm,140mm,150mm,195mm,195mm |
| Package Dimensions | 540 x 210 x 160mm (21.26'' x 8.27'' x 6.30'') |
| Wall Thickness of Pipe | 0.8-2.0mm |
| Total Length (w/ Handle on) | 86cm (33.5'') |
| Net Weight | 23kg (50.7ibs) |
| Cross Weight | 25kg (55.1ibs) |
It is a manual bending machine that is designed for many purposes like gas pipes, thick steel pipes. It should be bent for more than 5 mins to get the required result. And the angle for bending should be almost 90 degree. It has dual active holders that help in getting the perfect result. This machine operates on a twin active cylinder.

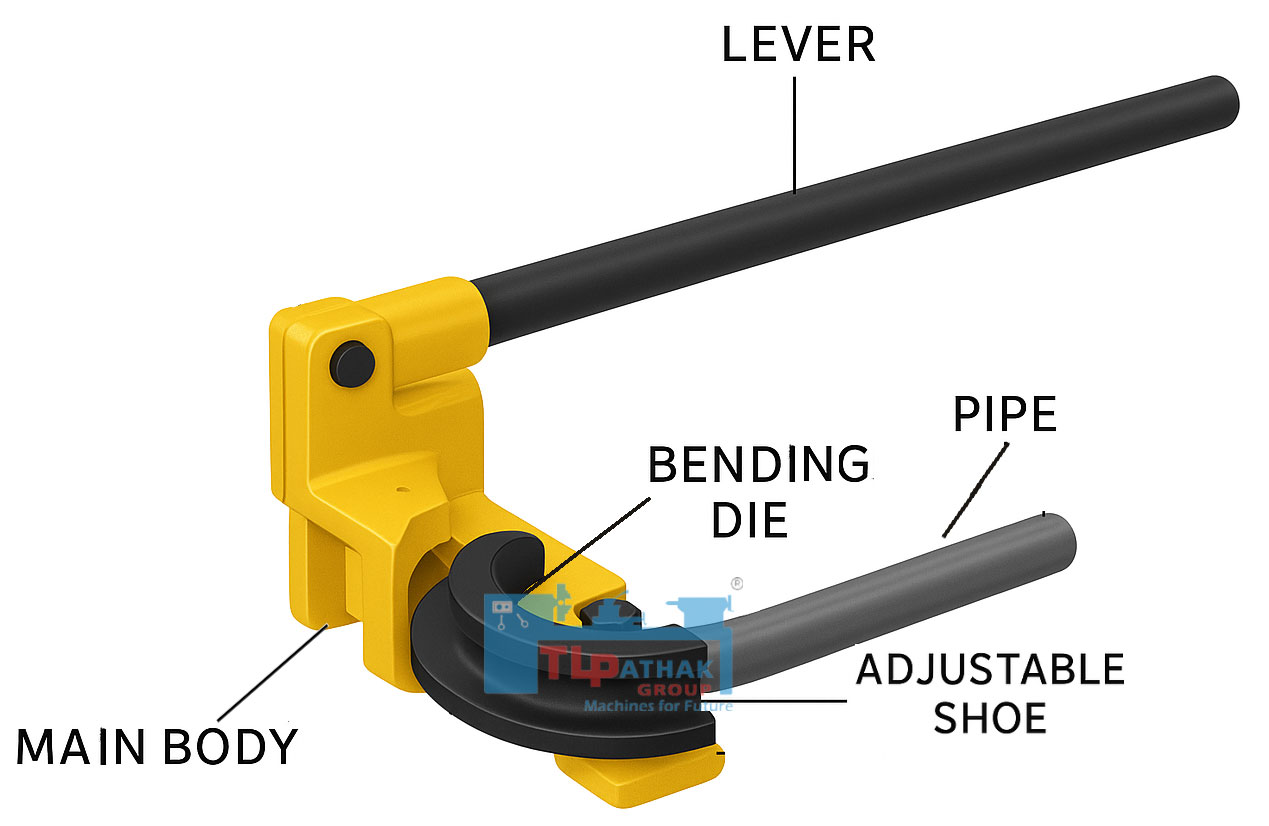

3D angled front view with all parts labeled for Manual Pipe Bender
Key Features
| Portable Design Compact and lightweight, usually provided in a sturdy carrying case with multiple dies. | Interchangeable Dies: Comes with different size formers (dies) to bend pipes of various diameters. |
| Manual Operation Operated by hand force using a long lever arm for leverage. | Durability Made of hardened steel for long-lasting performance. |
Manual Pipe Bender Application
Plumbing installations - water, gas pipelines
Electrical conduit bending
Automotive brake and fuel line shaping
Furniture frame manufacturing
Metal frame railing manufacturing.
