Pipe Square Notching Machine
Special Purpose Machines (SPM'S)A Square Pipe Notching Machine is a specialized industrial machine designed to accurately notch, cut, and shape square or rectangular pipes and tubes. It is widely used in metal fabrication industries where precise joint preparation is required for welding, assembly, or structural fitting. The machine shown operates on a hydraulic system, ensuring high force, smooth operation, and consistent results even during continuous production.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | PSNM-50 | PSNM-100 |
| Body | Steel Body Heavy Duty | Steel Body Heavy Duty |
| Pipe Size | 50x50 mm | 100x100 mm |
| Pannel | Electrical Panel | Electrical Panel |
| Hydraulic Valve | Yuken Made | Yuken Made |
| Power Pack | 120 Ltr Power Pack | 120 Ltr Power Pack |
| Cylinder | 1 Nos | 1 Nos |
| Motor | 3 HP | 3 HP |
| Switch | 1 Foot Switch | 1 Foot Switch |
| Tooling Kit | Extra | Extra |
| Die Set | One Die Set | One Die Set |
A Square Pipe Notching Machine significantly improves productivity, precision, and consistency in fabrication work. It eliminates manual errors, reduces labor effort, and ensures professional-quality joints, making it an essential machine for modern metalworking units.

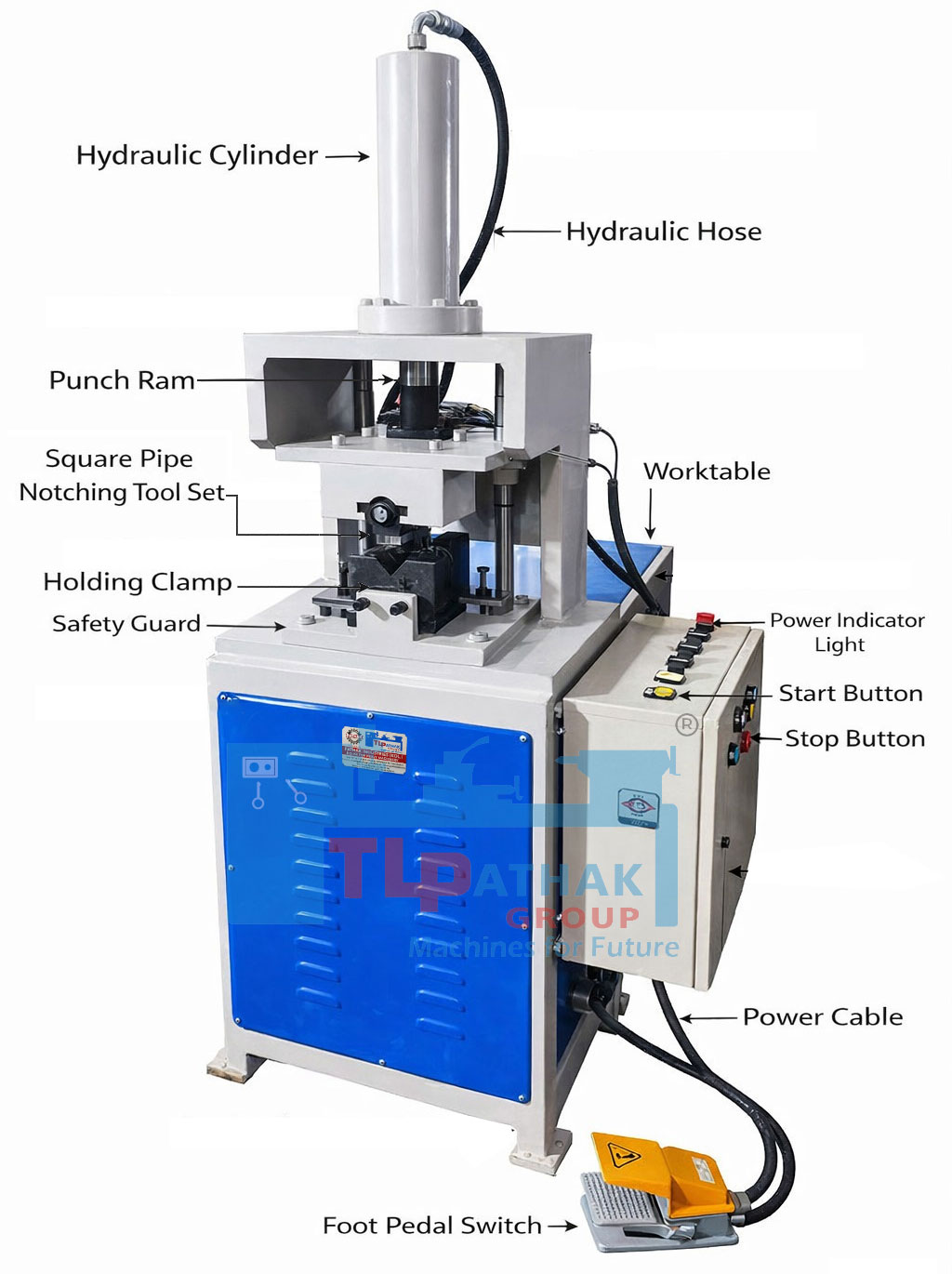

3D angled front view with all parts labeled for Square Pipe Notching Machine
Key Features
| Heavy-Duty Welded Steel Frame Ensures vibration-free operation and long service life. |
| Hydraulic Power System Delivers high tonnage force with smooth and controlled motion. |
| Precision Notching Dies Provides accurate notch profiles for square and rectangular pipes. |
| User-Friendly Control Panel Push-button controls for easy operation and safety. |
| Foot Pedal Operation Allows hands-free control for better productivity. |
| Low Maintenance Design Fewer moving parts reduce downtime and servicing costs. |
Square Rectangular Pipe
Furniture
Gymnasium Equipment
London 14 Dual Swing Gate
Metal Ornaments Img 1
Metal Ornaments Img 2
Metal Ornaments Img 3
Metal Ornaments Img 4
Metal Ornaments Img 5
Fabrication of gates
Fabrication of railings
Fabrication of balconies
Fabrication of window grills
Fabrication of furniture frames
Fabrication of decorative panels
Fabrication of artistic metalwork
