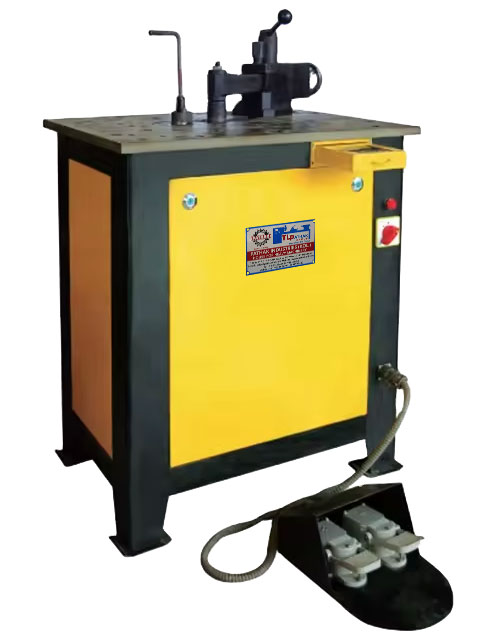

Multifunction Scroll Bender Machine
Special Purpose Machines (SPM'S)Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Angle Bending Device
Small Round Spring Bening Device
Are Beding Device
Scroll Bender Machine Other Part
| Model | PMASBM |
| Max Work Ability | Flat Iron : <500mm x 8mm |
| Round Steel : < 16mm | |
| Square Steel : 16mm x 1600 | |
| Motor | Power : 2.2 KW |
| Voltage : 380 V | |
| Die novelty designed, surface smooth, mold our spread a large space, convenient for operation. | |
| Main Features | It is convenient for changing dies. |
| The high working ability can bend square steel 16*16mm | |
| High produce efficiency, it can bend C sample as 20*6mm | |
Comprehensive function, it can bend all kinds and specification of C.P, and S patterns. The Machine for processing products pattern of all kinds and sizes, is equipped with three kind of Holdup wheels : 50 mm, 30mm, 20mm |
|
| Packing Dimension | LxWxH = 1000 x 700 x 1200 |
| N.W. (kg) | 310 |
| G.W. (kg) | 370 |
Combining robust construction with advanced mechanical leverage, the scroll bender delivers repeatable results, even for complex designs. Its multifunction capability allows multiple operations—scroll forming, bending, curving, and shaping—to be performed on a single platform, improving productivity, reducing production time, and ensuring uniform quality across batches.
The machine accommodates a range of metal thicknesses and profiles, from flat bars and round bars to square sections. With simple tooling changes, fabricators can expand design possibilities without investing in separate machines. Its user-friendly interface and adjustable settings make it suitable for both small workshops and high-volume manufacturing environments.
As a versatile and reliable solution for artistic and industrial metal forming, the Multifunction Scroll Bender Machine is an essential asset for businesses seeking efficiency, precision, and creative flexibility.

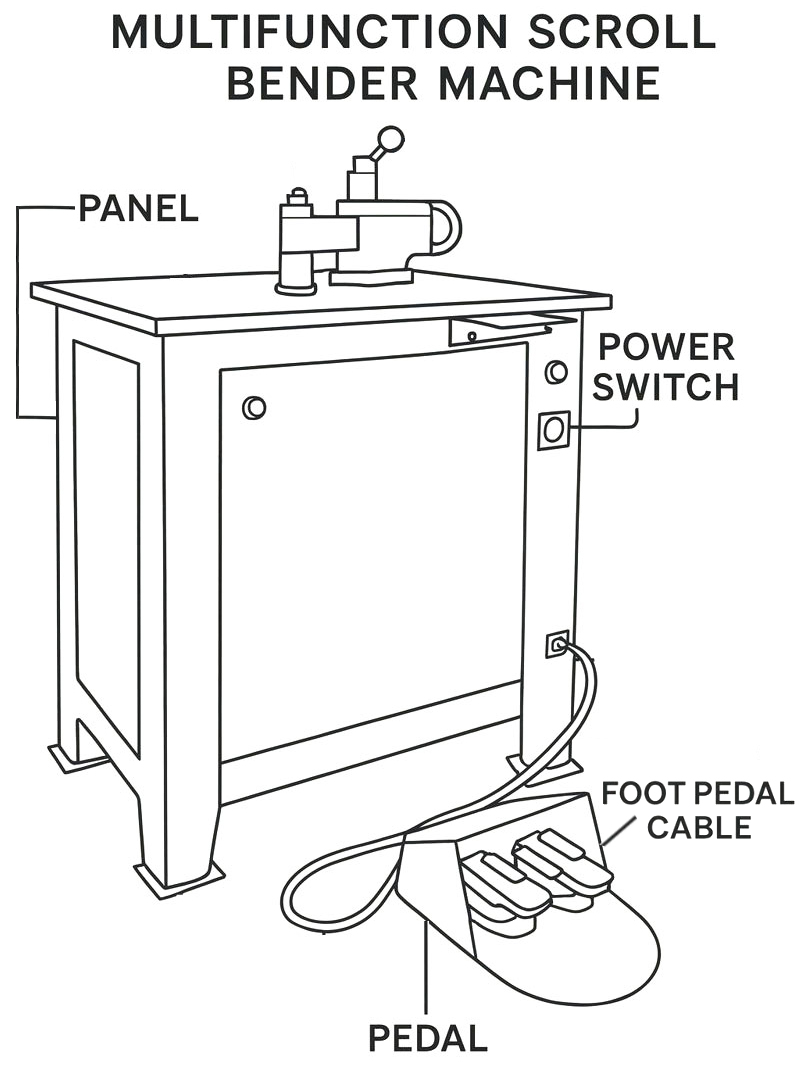

3D angled front view with all parts labeled for Multifunction Scroll Bender Machine
| Multi-Purpose Forming Capability | Designed for scrolls, twists, rings, bends, embossing, and other decorative metal forms. |
| Supports flat bar, square bar, round bar, and mild steel strip forming. | |
| Heavy-Duty Industrial Construction | Fabricated with reinforced steel frames for stability under continuous load. |
| Vibration-resistant body to ensure accuracy during high torque operations. | |
| Adjustable Forming System | Interchangeable forming dies, rollers, and pins for diverse shape creation. |
| Adjustable forming arm and working height to accommodate different workpiece sizes. | |
| Precision Control Mechanisms | Manual and foot-operated controls allow both incremental and continuous bending. |
| Fine-tuning knobs for precise adjustment of scroll radius and curvature. | |
| High Torque Motor (in motorized models) | Ensures consistent forming of heavy steel sections without speed drop. |
| Overload protection for motor and gearbox to prevent overheating. | |
| Safety and Accessibility Features | Front-facing emergency stop switches. |
| Electrical panel with overload trip, isolator, and power indicators. | |
| Foot pedal operation allows hands-free forming, enhancing operator safety. |
London 14 Dual Swing Gate
Metal Ornaments Img 1
Metal Ornaments Img 2
Metal Ornaments Img 3
Metal Ornaments Img 4
Metal Ornaments Img 5
Fabrication of gates
Fabrication of railings
Fabrication of balconies
Fabrication of window grills
Fabrication of furniture frames
Fabrication of decorative panels
Fabrication of artistic metalwork
