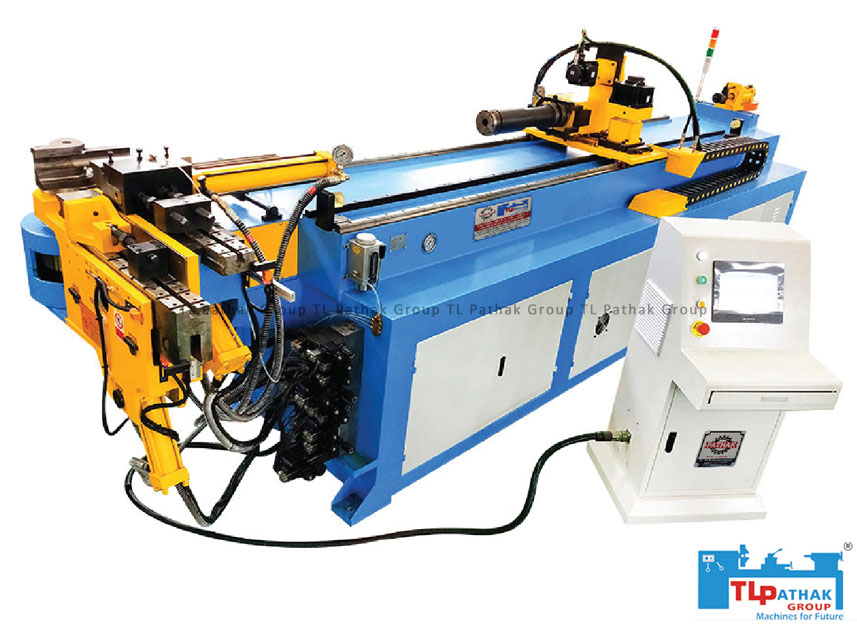

Cnc NC Heavy Duty Pipe Tube Bending Machine
Section Bending MachineThis machine aims to give you trouble-free and hassle free service. It works with minimal pressure. It contains a PLC system having a touchscreen HMI. It works on a toggle mechanism that helps in the reduction of pressure. The bends that this machine creates are just flawless and clear in nature. And the best part is it has a memory capacity of almost 50 programs.
From ₹
1,545,000
To
2,500,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL NO | PL32 (3 Axis) | PPL45 (3 Axis) | PPL65 ( 3 Axis) | PPL100 (3 Axis) | ||||
| Max. Tube Capacity ( D x T) | 32mm x 2mm (ferrous tubes UTS 45 kg/mm2) |
45mm x 3mm (Ferrous tubes UTS 45 kg /mm2) |
65mm x 5mm (Ferrous tubes UTS 45 kg/mm2) |
114mm x 7mm (Ferrous tubes UTS 45 kg/mm2) |
||||
| Min. Tube Capacity (D) | 6mm | 12mm | 20mm | 20mm | ||||
| Max. Bend Radius (CLR) | 120mm | 150mm | 350mm | 350mm | ||||
| Min. Bend Radius (CLR) | 20mm | 25mm | 30mm | 30mm | ||||
| Min. Bend Radius (in terms of D) | 1.5D | 1.5D | 1.5D | 1.5D | ||||
| Length over mandrel | 2 Meters | 2 Meters | 2 Meters | 4 Meters | ||||
| Carriage travel | 1.5 Meters | 1.5 Meters | 1.5 Meters | 2.5 Meters | ||||
| Bend Angle Range | 5 to 180 degrees | 5 to 180 degrees | 5 to 180 degrees | 5 to 180 degrees | ||||
| Bending Direction | Clockwise | Clockwise | Clockwise | Clockwise | ||||
| Max .Bend Speed (Accaracy) | 30 degrees (+-0.2) | 30 degrees (+-0.2) | 30 degrees (+-0.2) | 30 degrees (+- 0.2) | ||||
| Push & Turn - Electric AC Servo Bend - Hydraulically | Push & Turn - Electric AC Servo Bend - Hydraulically | Push & Turn - Electric AC Servo Bend - Hydraulically | Push & Turn - Electric AC Servo Bend - Hydraulically | |||||
| Axis (Programmable) | Max. Speed | Max. Speed | Max. Speed | Accuracy | Accuracy | Max. Speed | Accuracy | Accuracy |
| 400 mm / sec | +- 0.1 mm | |||||||
| Push (DBB) - Y Axis | 600 mm /sec | +- 0.1 mm |
600 mm / sec | +- 0.1 mm | 600 mm / sec | +- 0.1 mm | 120 deg / sec | +- 0.1 deg |
| Turn (POB) - B Axis | 200 deg / sec | +- 0.1 deg | 200 deg / sec | +- 0.1 deg | 200 deg / sec | +- 0.1 deg | 30 deg / mm | +- 0.2 deg |
| Bend (DOB) - C Axis | 90 deg / mm | +- 0.2 deg | 90 deg / mm | +- 0.2 deg | 90 deg / mm | +- 0.2 deg | ||
| Plc & Servo System | PLC, MMI & Servo Sysems of Mitsubishi make | PLC, MMI & Servo Systems of Mitsubishi make | PLC, MMI & Servo Systems of Mitsubishi make | PLC, MMI & Servo Systems of mitsubishi make | ||||
| Memory Capacity | 12 bends per program, 50 programs | 12 bends per program, 50 programs | 12 bends per program, 50 programs | 12 bends per program, 50 programs | ||||
| Connected Load | 5 KW for Hydraulics & 2 KW for Servo Motor | 5 KW for Hydraulics & 2 KW for Servo Motor | 5 KW for Hydraulics & 2 KW for Servo Motor | 5 KW for Hydraulics & 2 KW for Servo Motor | ||||
| 3 Phase AC, 415 V, 50 H2 | 3 Phase AC, 415 V, 50 H2 | 3 Phase AC, 415 V, 50 H2 | 3 Phase AC, 415 V, 50 H2 | |||||
| Oil Tank Capacity | 150 litres (built in) | 150 Litres (built in) | 200 Litres (built in) | 300 litres (built in) | ||||
| Machine Lubrication | Manual Centralized Lubrication System | Manual Centralized Lubrication System | Manual Centralized Lubrication System | Manual Centralized Lubrication System | ||||
