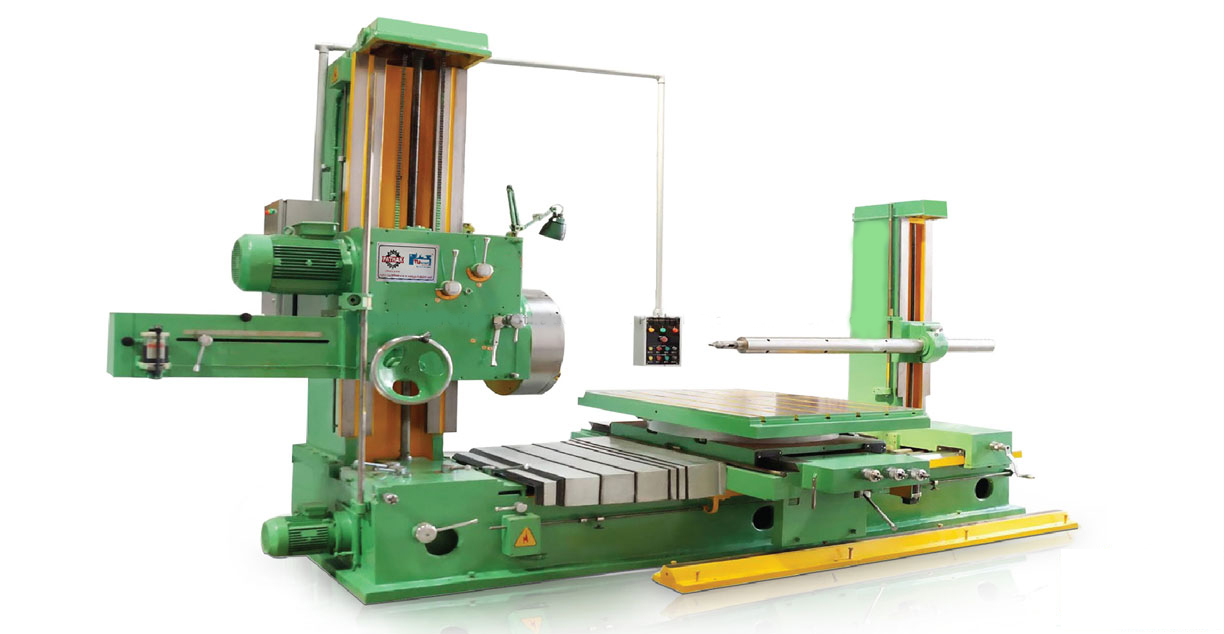

Horizontal Boring Machine
Workshop EquipmentsThe Horizontal Boring Machine by TL Pathak Group in India is a versatile and efficient tool designed for precision drilling and machining of large workpieces. This machine features a horizontal orientation, allowing for accurate and stable operations. It is equipped with a robust spindle and a powerful motor, providing high torque and cutting power. The Horizontal Boring Machine offers a wide range of spindle speeds and feeds, enabling flexibility for different drilling and boring tasks. With its sturdy construction and advanced features, this machine is suitable for industries such as automotive, aerospace, and heavy machinery manufacturing, where accuracy and reliability are paramount.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
Coolant Pump With Tank
Digital Read Out
| MODEL | PHB-65 | PHB-80 | PHB-100 | PHB-110 | PHB-125 |
| Alloy Steel Work Spindle Hardened & Ground - Diameter | 65 | 80 | 100 | 110 | 125 |
| MorseTaper Number | 4 | 5 | 6 | 6 | 6 |
| Max.Longitudinal Movements of Working Spindle | 410 | 510 | 510 | 600 | |
| Number of Spindle Speeds | 9 | 9 | 9 | 9 | 9 |
| Range of Spindle Speeds - R.P.M. | 20 to 300 | 15 to 300 | 15 to 300 | 15 to 250 | 15 to 250 |
| Longitudinal Work Spindle Feeds Nos. | 9 | 9 | 9 | 9 | 9 |
| Max.Height of The Spindle Axis from Table Surface | 800 | 925 | 1000 | 1100 | 1200 |
| Min.Height of The Spindle Axis from Table Surface | 20 | 25 | 30 | 30 | 30 |
| Dimensions of The Rotary Table | 840 x 1050 | 900 x 1105 | 1030 x 1375 | 1100 x 1450 | 1220 x1675 |
| Longitudinal Table Traverse | 1500 | 1625 | 1725 | 1925 | 2050 |
| Long.Table Traverse Feeds (Including one Rapid) | 10 | 10 | 10 | 10 | 10 |
| Transversal Table Travel Feeds (Including one Rapid) | 10 | 10 | 10 | 10 | 10 |
| Vertical Head Stock Travel Feeds Including one Rapid | 4 | 4 | 4 | 4 | 10 |
| Rotary Table Automatic Feeds (Including one Rapid) | Nil | 10 | 10 | 10 | 10 |
| Max.Cross Movement of The Table | 910 | 1000 | 1100 | 1300 | 1500 |
| Max.Distance between Stay Bearing & Facing Head | 2150 | 2400 | 2690 | 2800 | 2950 |
| Facing Head Diameter | 450 | 505 | 555 | 600 | 650 |
| Weight Approximate in kgs. (With packing & Accessories) | 7500 | 9500 | 11500 | 14500 | 18000 |
| Weight Approximate in kgs. (Without packings Accessories) | 7000 | 8500 | 9500 | 11000 | 13500 |
| Power Motor (HP) | 3 & 1.5 | 5 & 2 | 7.5 & 2 | 10 & 3 | 12.5 & 5 |
