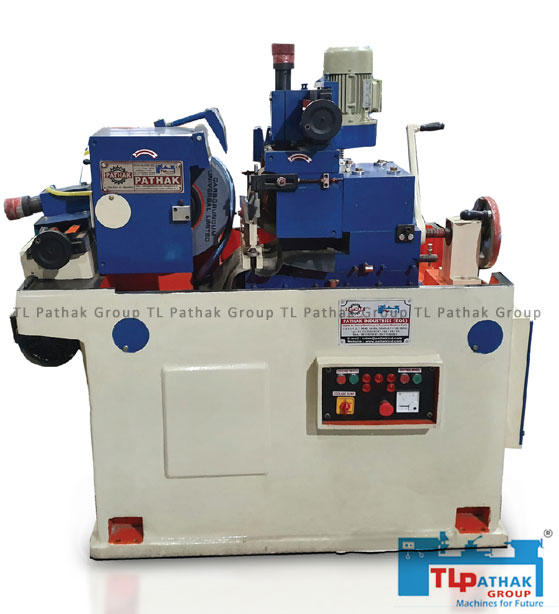

Centerless Grinding Machine
Grinding MachinesThe Centerless Grinding Machine by T.L Pathak Group Leading Manufacturer. There are many benefits of this grinding machine such as no room for deflection. This machine is supported by the regulating wheel and it presses it to the Abra grains on the grinding wheel. It has short loading time and it has the ability to grind brittle materials and distorted parts. It has a longer yield and grinds large quantities.
From ₹
545,000
To
885,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Description | Model SL - 75 | Model SL - 100 | Model SL - 150 |
| Grinding Range Diameter | 2-75 mm | 2-100 mm | 5- 150 mm |
| Grinding Wheel Size (OD x W x I.D.) |
350 x 100 x 127 mm | 350 x 150 x 127 mm | 500 x 200 x 304.8 mm |
Regulating Wheel Size |
225 x 100 x 76.2 mm | 225 x 150 x 76.2 mm | 300 x 200 x 127 mm |
| Maximum Length in Feed Grinding | 100 mm | 150 mm | 200 mm |
| Maximum Length in Through Feed Grinding |
300 mm x 75 mm length x od | 250mm x 100 mm length x od | 200 mm x 150 mm length x od |
| Grinding Wheel Speed | 1800 R.P.M. | 1800 R.P.M. | 1200 R.P.M. |
| Regulating Wheel Speed | 20-40-60 R.P.M. (Variable speed (optional) |
20-40-60 R.P.M. (Variable speed (optional) |
Infinitely Variable D.C/A.C./Hydraulic drive motor |
| Grinding Wheel Motor | 5 HP/3.7 Kw 1440 R.P.M. - 3 Phase |
7.5 HP/5.5 Kw 1440 R.P.M. - 3 Phase |
20 HP/15 Kw 1440 R.P.M. - 3 Phase |
| Regulating Wheel Motor | 1 H.P Flange x 1440 R.P.M. - 3 Phase |
1 H.P Flange x 1440 R.P.M. - 3 Phase | 3 HP Flange D.C.Motor |
| Coolant Pump Motor | 0.15 HP 3 Phase | 0.15 HP 3 Phase | 0.15 HP 3 Phase |
| Hydraulic Power Pack (For dressing unit) |
0.5 HP Flange 3 Phase |
0.5 HP Flange 3 Phase |
0.5 HP Flange 3 Phase |
| Regulating Wheel Angel tilting | 5 degree | 5 degree | 5 degree |
| Upper Slide Swiveling | 3 degree | 3 degree | 3 degree |
| Approx Weight | 1800 kg. | 2000 kg. | 4500 kg. |
Approx Machine size |
1850 x 1100 x 1600 mm | 1850 x 1100 x1600 mm | 2500 x 1700 x 1650 mm |
