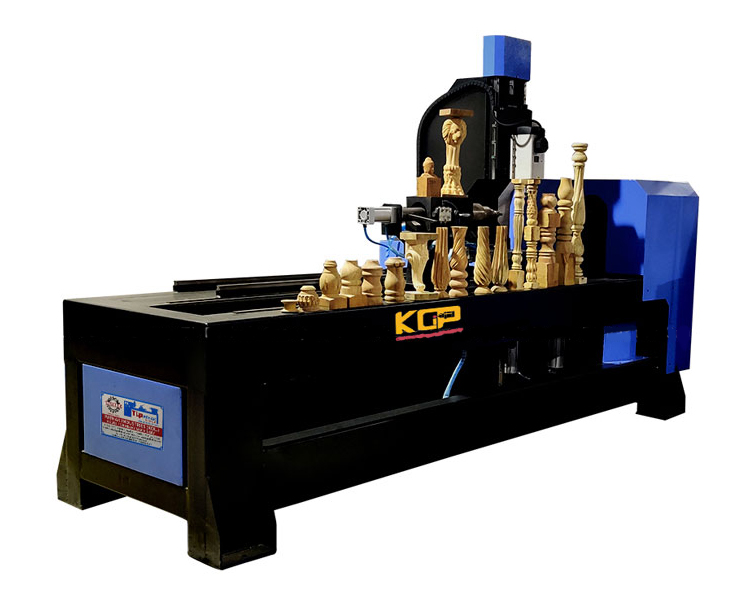

4 Axis Cnc Wood Turning Lathe Carving Machine
CNC MachinesAs one of the manufacturers and producers who give the best quality of a wide range of 4 axis CNC wood turning lathe carving machines at affordable prices for the past few years to our customers, we make all our machines with modern and sophisticated technology. The machines are fully automated and you do not even have to put the wood into the machine that saves you the labour and time.
Features
- Auto Center
- Single Lathe Cutter
- 4 Axis Carving/Sloting
- Auto Tool Changing
- Auto Tool Zero
- Easy Software Training
From ₹
980,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | KCP-CWT 4. -4 Axis cnc wood lathe |
| Working area | 1500mm (length)*300mm (diameter) when one spindle work |
| Whole Machine | Stable and low inertia |
| Spindle motor | Servo motor, 4 KW frequency spindle CVT (belt-type drive, easy to replace) |
| Inverter motor | Fulling (high-end brand) High-precision motor drive, through the program calculates, can ensure the accuracy of prosseing |
| Feeding parts | Combined high -quality rails with precise screw drive, effective control error |
| Working speed | 5X60cm Standard staircase column 405/one |
| Auxiliary hardwork and software | Turning center with the knife (5cm wood, 6cm wood) tail top pin manual streching, combined with pneumatic,convenient and flexible, intelligent protection work table (limit alarm system) to prevent the collision phenomenon |
| Control system | Original DSP control system support 4 axis |
| Software supported | TYPE3/ARTCAM/UCANCAM/CAXA/MASTERCAM
/ Other software output code |
| Lathe Tool Post | Single |
| Max Wood Size | 4 feet, 5x5 inch |
| Spindle | 5 HP, 18000 RPM |
| Machine Power | 3 phase 7 HP |
| Machine Weight | 1000 kg |
| Machine Size | 7x3x6 Feet |
| Opeating System | Computer Panel |

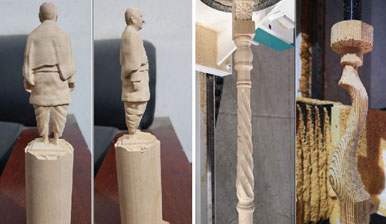

4 Axis Cnc Wood Turning Lathe Carving Machine Application Image
