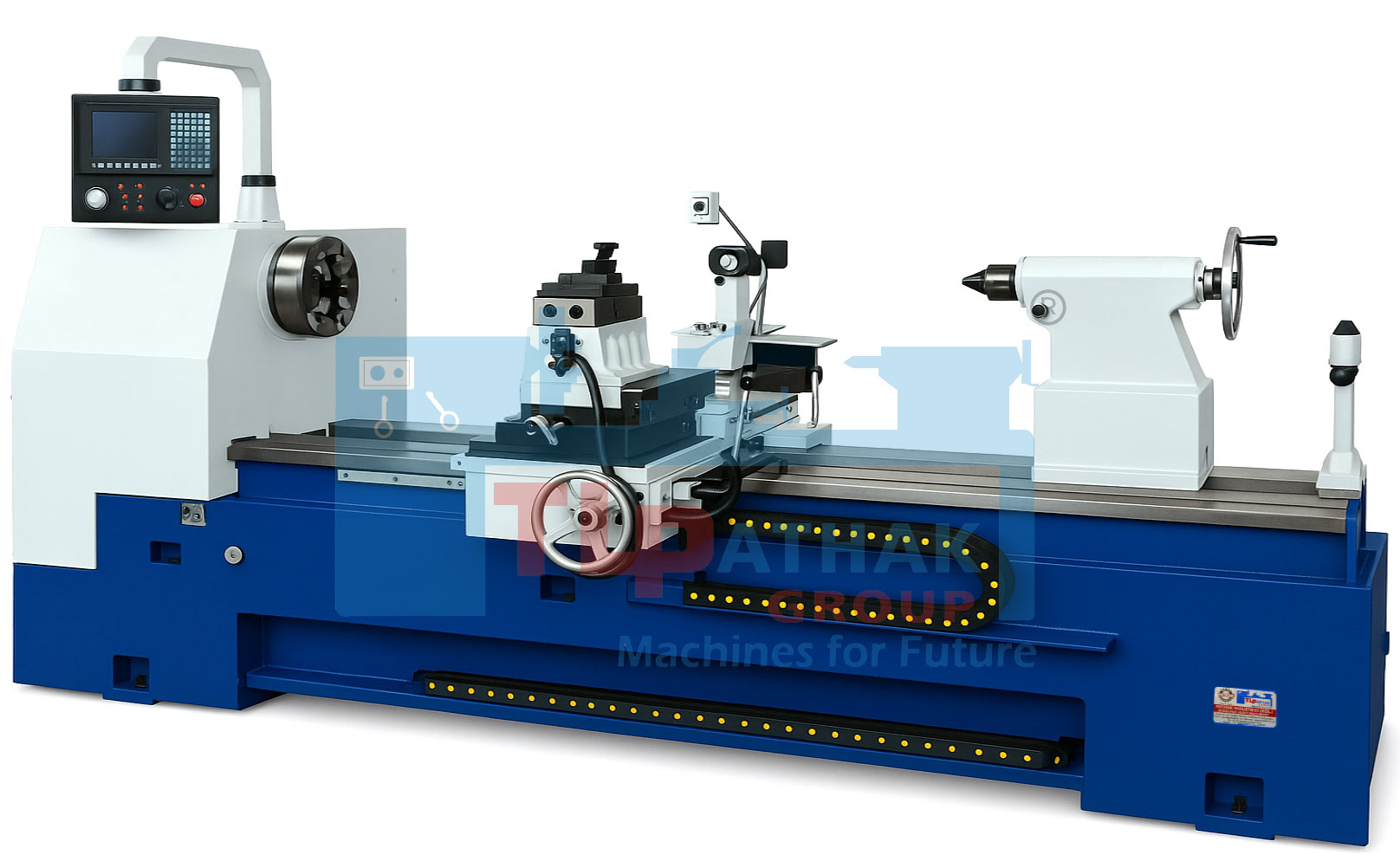

Engraving Branding Lathe Machine
Lathe MachinesAn Engraving Branding Lathe Machine is a specialized lathe used for precision engraving, marking, and branding on cylindrical or round components. It is designed for creating logos, serial numbers, text, or decorative patterns directly on metal, wood, or plastic surfaces using rotary tools, stylus systems, or CNC-controlled engraving heads.
From ₹
2,800,000
To
3,800,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Specifications | Model : PRGE-2 |
| Max. Diameter of Processed Roller | 22 mm |
| Max. Length of Processed Roll | 22 mm |
| Nothing for Re-Bar Diameter | 18 mm |
| Notching Per Rolls | 40 mm |
| Omitting Ribs | 40 mm |
| Min.Feed Rate | 2 Hp |
| Spindle Speed of Flying Cutter Head (Notching) | 1440 Rpm |
| Spindle Speed of Flying Cutter Head (Notching) | 22 mm |
| Head Stock Spindle Bore | 22 mm |
| Head Stock Chuck diameter (4 Jaw chuck Diameter) | 18 mm |
| CNC 4-Axis Control System | 40 mm |
| Motors & Drives | 40 mm |
| Overall Dimension (L x W x H) (Approx) | 2 Hp |
| Machine Weight (Approx) | 1440 Rpm |
We are the best manufacturer and exporter of engraving branding lathe machines as we manufacture a single machine that helps in both roll knurling and name engraving. The engraving can be done in about 10 minutes on one groove. This machine is made under the supervision of our team of experts..
Key Features:
| Precision Spindle System for accurate rotation |
| Engraving Stylus or Rotary Tool Attachment |
| Manual, Semi-Automatic, or CNC Control Options |
| Adjustable Carriage and Cross Slide for fine engraving movement |
| Rotary Axis Synchronization for consistent branding on curved surfaces |
| Fixture or Chuck to Hold Cylindrical Workpieces |
| Custom Tooling Available for logos, dies, and patterns |

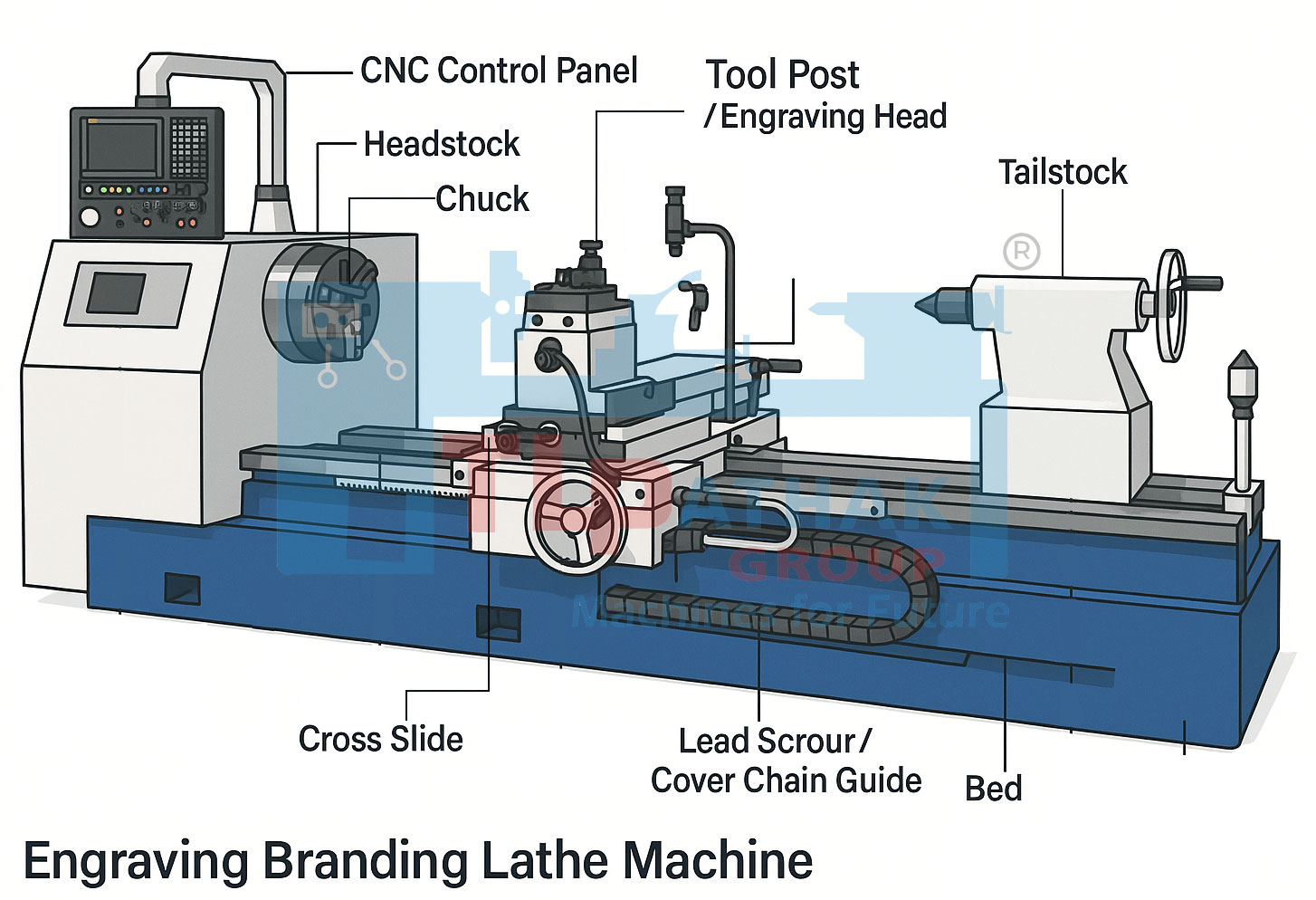

3D angled front view with all parts labeled for Engraving Branding Lathe Machine
Applications of Engraving Branding Lathe Machine
| Metal part engraving for identification or branding |
| Custom logo or serial number marking on cylindrical parts |
| Engraving patterns, symbols, or text on tools or machine components |
| Wood branding or decorative engraving |
| Custom pipe and tube engraving |
| Marking parts in automotive and aerospace industries |
| Engraving on jewelry, nameplates, and gift items |
Uses of Engraving Branding Lathe Machine
| Used for precision engraving on round or cylindrical surfaces |
| Creates permanent branding marks on products for traceability |
| Enhances the aesthetic or decorative value of wood/metal items |
| Supports batch engraving in production environments |
| Ensures anti-counterfeit labeling and part authentication |
| Adds logos and model details on industrial components |
| Personalization of items like pens, rings, or trophies |
Tool Rooms
Automotive
Die & Mould Manufacturers
Automotive Industry
Aerospace Industry
Heavy Engineering
DIY metalworking and model engineering
