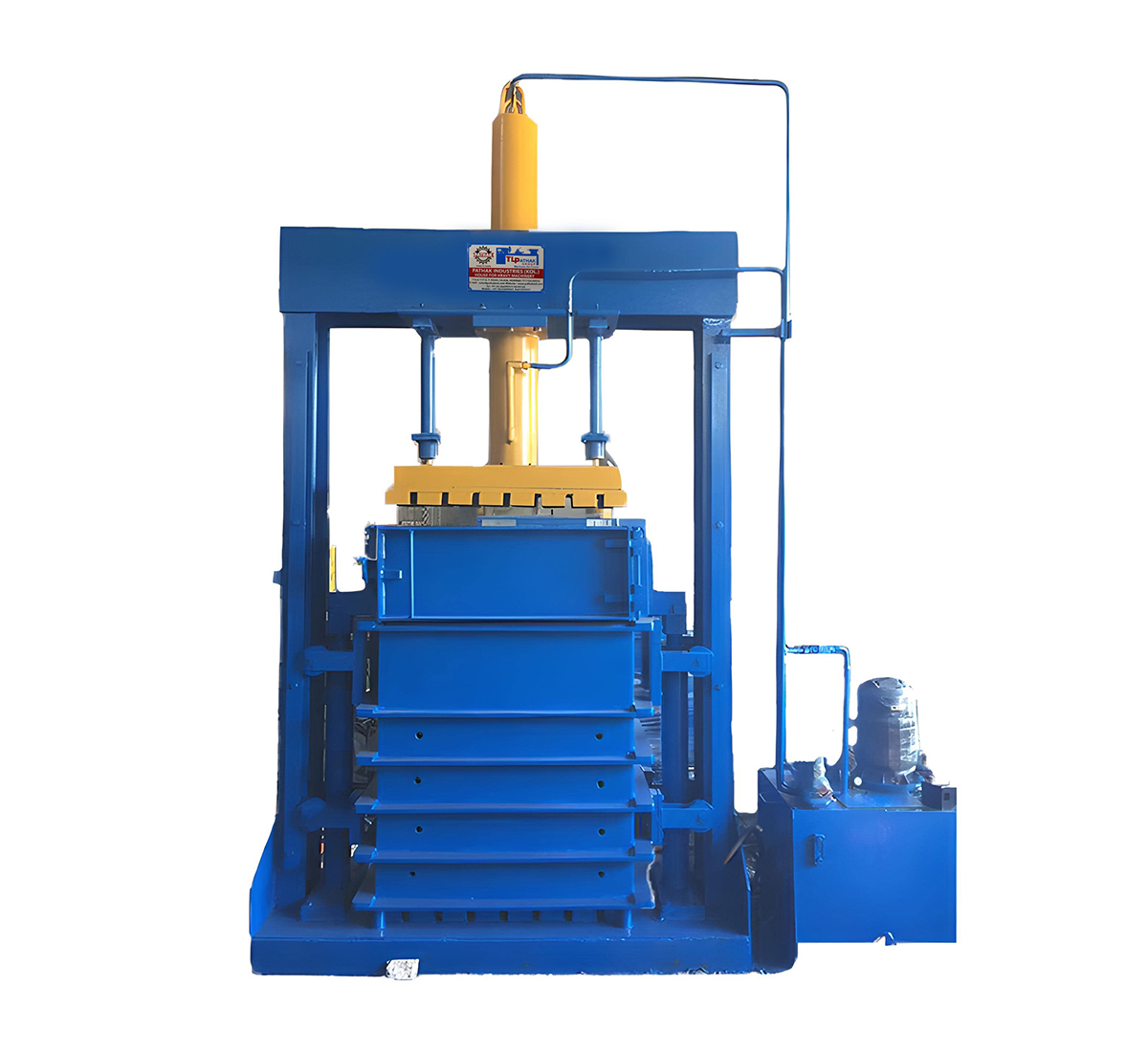

Single Chamber Single Cylinder Baler
Scrap Baling MachinesTL Pathak Group's Single Chamber Single Cylinder Baler is a compact and efficient waste compaction solution designed for simplicity and effectiveness. This baler features a single chamber powered by a hydraulic cylinder, streamlining the process of compressing various materials. With user-friendly controls and safety measures, it ensures easy and secure operation for waste management. The vertical design optimizes floor space, making it suitable for facilities with limited areas. Versatile in handling materials like cardboard, paper, plastics, and textiles, the baler offers a customized solution for diverse waste streams. Its automatic bale ejection system further enhances operational efficiency. The TL Pathak Group's Single Chamber Single Cylinder Baler is a reliable choice for businesses prioritizing space-saving and straightforward waste compaction in their recycling processes.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Capacity | 60 Ton Pressure Single Chamber Single Cylinder Baler Machine (lifting chamber) |
| Bale Size | 40(L)x20(W) in inch |
| Bale Weight | 80 to 120 kg |
| Chamber Size | 40(L)x20(W)x60(H) in inch |
| No. of Cylinder | 1+2 (3 nos.) |
| No. of Tie | 6 nos. |
| No. of Door | 1 nos. |
| Cylinder Size | 180 (Bore)x220 (OD)x110 (RAM)x1100 (Stroke) mm |
| Bale Eject | By Cylinder |
| Oil Tank Capacity | 250 lit. |
| Production Rates | 10 to 15 minutes |
| Hydraulic System | Double Vane Pump System |
| Day Light Gap | 60 inch |
| Operation | Hand levers operate systems |
| Electric Motor | 10 H.P. Motor,3 Phase,1440 RPM,50 Hz |
| Overall Dimension | 150(L)x50(W)x140(H) in inch |
| Body Plate | 8 mm,10 mm,12 mm,30 mm |
