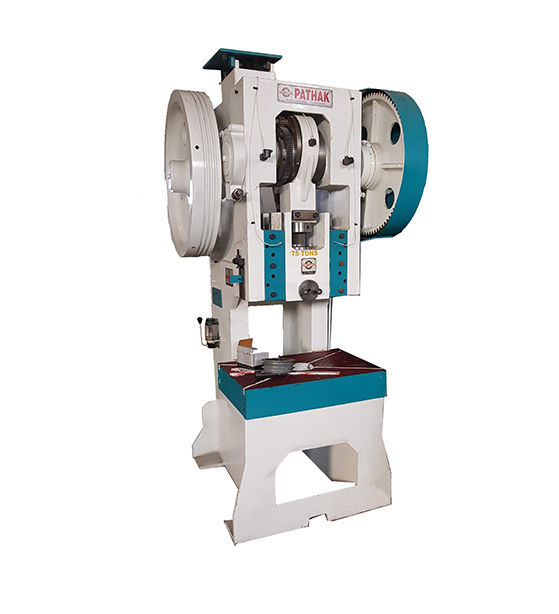

C Type Power Press Machine 75 Ton
Press MachinesPathak is a leading brand providing the best quality C type power press machine 75 ton made with premium quality raw material and latest technology under the supervision of our technical team. It's efficient to use this machine and results in higher output. It provides all features required by customers and is highly efficient in working.
From ₹
345,000
To
985,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel |
PC1 10 Tons |
PC2 20 Tons |
PC3 30 Tons |
PC5 50 Tons |
PC7 |
PC10 100 Tons |
PC15 150 Tons |
|
Dia of Crank Shaft | mm | 80 | 90 | 100 | 115 | 125 | 150 | 175 |
Adjustability of Stroke | mm | 50 | 76 | 76 | 100 | 100 | 125 | 150 |
Punch Bore in Ram | mm | 25 | 31 | 31 | 38 | 38 | 45 | 50 |
Width of Bed | mm | 300 | 375 | 440 | 525 | 600 | 650 | 700 |
Length of Bed | mm | 450 | 550 | 615 | 700 | 800 | 900 | 1000 |
Gear Dia | mm | 450 | 525 | 600 | 650 | 890 | 960 | 1060 |
Fly Wheel Dia | mm | 525 | 650 | 700 | 800 | 900 | 1000 | 1125 |
Gap (Bed to Bottom ) | mm | 250 | 325 | 350 | 375 | 400 | 450 | 500 |
Stroke per Minute | mm | 60 | 55 | 50 | 45 | 40 | 40 | 35 |
H.P. Required (1440) | mm | 2 | 3 | 3 | 5 | 7.5 | 10 | 15 |
Bore in Bed | mm | 110 | 125 | 140 | 160 | 190 | 220 | 250 |
Weight in kgs (Approx) | mm | 900 | 1550 | 2050 | 2700 | 4000 | 5500 | 7800 |
