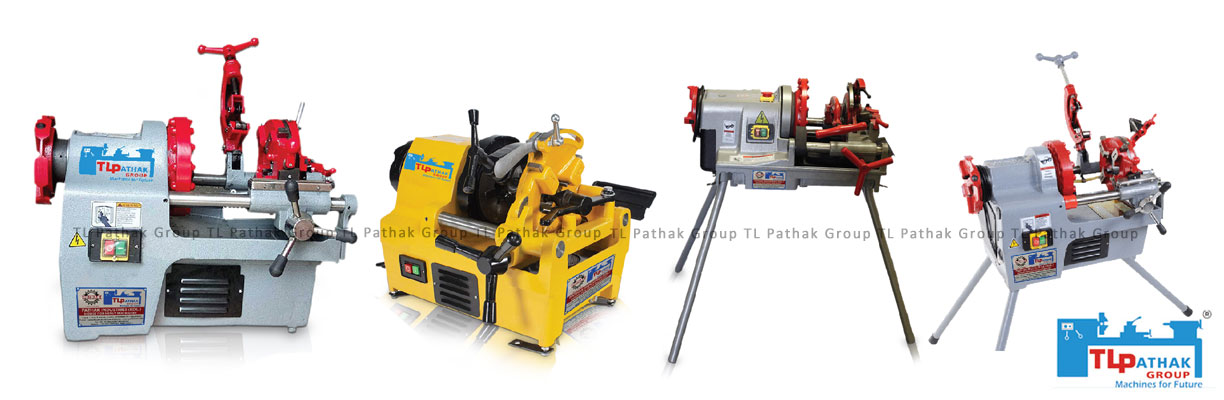

Portable Pipe Threading Machine
Threading MachinesThis machine is known as a portable pipe threading machine needed for a skilled operator or special training, it is Cost-efficient compared to CNC machining and its the production of Class 2A threads from 1/4" to 2-1/4” bolt and 1/8” to 2” pipe and it has high production as well as Semi-automatic operation. The T.L Pathak Group Leading manufacturer of exporters of Portable Pipe Threading Machine
From ₹
65,000
To
265,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PT-1/2 to 2 | PT-1/2 to 3 | PT-1/2 to 4 | PT-2.1/2 to 6 |
| Sizes For pipe Threading (Inches) | 1/2'' to 2'' | 1/2'' to 3'' | 1/2'' - 4'' | 2.1/2'' to 6'' |
| Specification | 230V/50 Hz. , 750W,27RPM |
230V/50 Hz. , 750W,26/11RPM |
230V/50 Hz. , 750W,26/10RPM |
230V/50 Hz. , 750W,26/10RPM |
| Threading Die-Head included (inches) | 1/2'' - 2'' | 1/2'' - 2'' & 2.1/2'' -3'' | 1/2'' - 2'' & 2.1/2'' - 4'' | 2.1/2'' - 4'' & 5'' - 6'' |
| Threading Dies included (inches) BSPT or NPT |
1/2'' -3/4'' & 1''-2'' | 1/2'' -3/4'',1'' -2''& 2.1/2'' -3'' | 1/2'' -3/4'', 1'' -2''& 2.1/2'' -4'' | 2.1/2'' - 4'' & 5''-6'' |
| Weight | 81 kgs. | 135 kgs. | 150 kgs. | 215 kgs. |
