Clutch Plate Riveting Machine
Drill MachinesA Clutch Plate Riveting Machine is a specialized industrial machine designed for the precise riveting of friction linings onto clutch plates. This machine ensures accuracy, uniform pressure, and strong joint formation, which are critical for the performance and durability of automotive clutch systems.
Advantages:
- Increases production efficiency
- Ensures uniform rivet setting for longer clutch life.
- Reduces manual labor and human error.
- Suitable for small-scale workshops as well as large-scale production units.
From ₹
45,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| MODELS | Riveting capacity (M.S.38kg/mm U.T.S) (mm) | Throat depth (mm) | Shut height (Max) (mm) |
Stroke Adjustable (mm) | Cycle time Adjustable(mm) | Over all dim.(mm) | Motor3 415V | Air Pressure |
| Model-003 | 3 | 110 | 200 | 0-30 | 0-9.9 sec. | 470x400x860 | 0.25 HP (0.18 kw) | 3-7 kg/cm |
| Model-005 | 6 | 110 | 180 | 0-30 | 0-9.9 sec. | 470x400x860 | 0.5 HP (0.37 kw) | 3-7 kg/cm |
| Model-008 | 8 | 140 | 225 | 0-45 | 0-9.9 sec. | 570x525x1100 | 1 HP (0.75 kw) | 3-7 kg/cm |
| Model-012 | 12 | 200 | 280 | 0-45 | 0-9.9 sec. | 625x585x1325 | 1.5 HP (1.2 kw) | 3-7 kg/cm |
| Model-016-H | 16 | 225 | 220 | 0-45 | 0-9.9 sec | 540x615x1375 | 6.0 HP (4.5 kw) Including Power Pack | 0-80 kg/cm (Hydraulic Pressure) |
We are considered as immense expertise in manufacturing, exporting, and supplying a huge range of clutch plate riveting machines. These machines are developed as per the standards of our industry with the use of high-quality raw materials and advanced technology.It can be used for a range of jobs from freely swivelling joints to torque resistance joints.

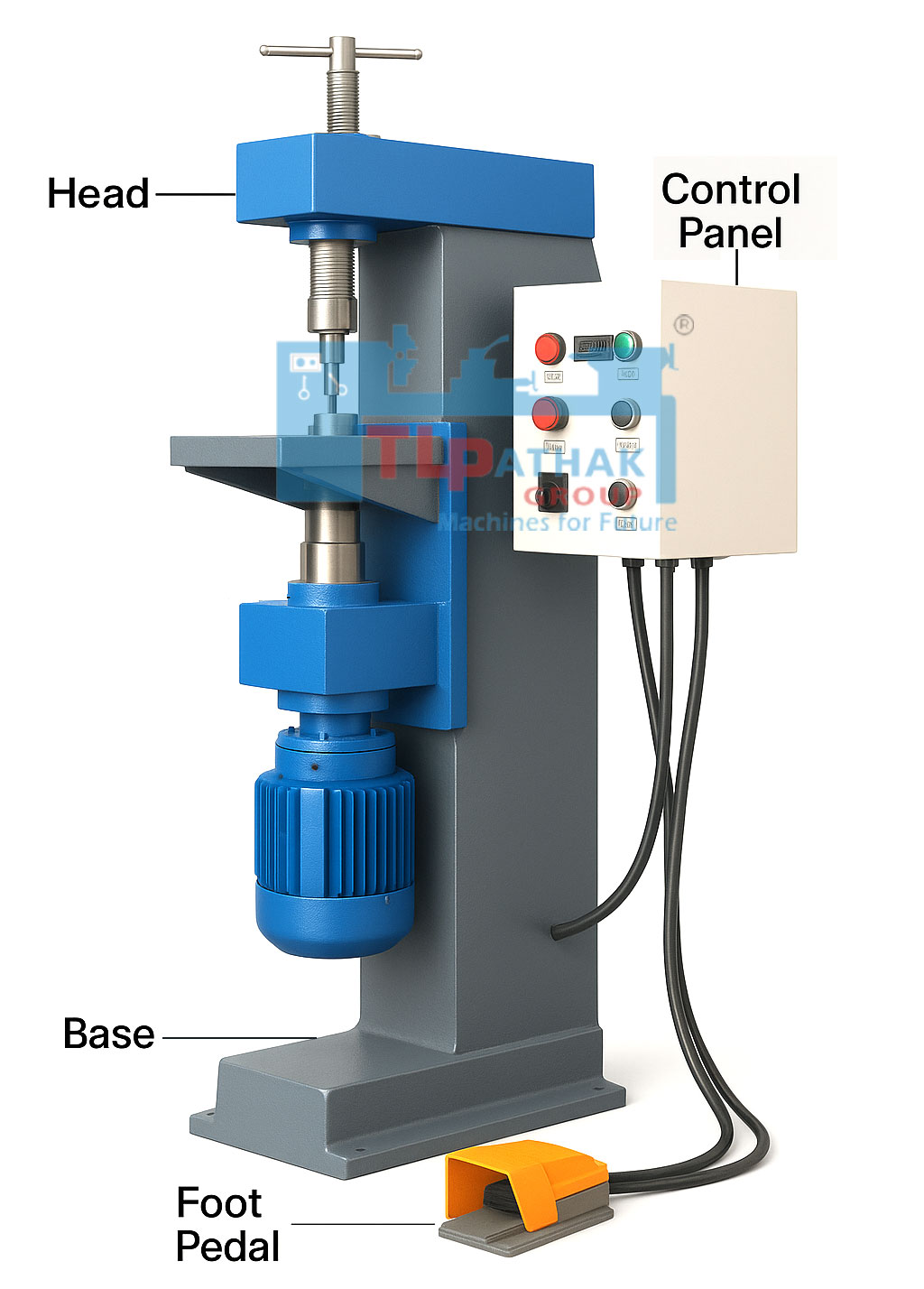

3D angled front view with all parts labeled for Clutch Plate Riveting Machine
Key Features:
| High Precision Riveting Ensures accurate alignment and strong fastening of clutch plate linings. |
| Pneumatic/Electric Operation Available in both types for efficient riveting with minimal operator effort. |
| Adjustable Pressure Control Allows operators to regulate riveting force based on material and rivet size. |
| Foot Pedal Operation Provides hands-free control for easy handling and operator safety. |
| Sturdy Construction Built with robust materials to withstand continuous industrial use. |
Advantages:
| Increases production efficiency. | Ensures uniform rivet setting for longer clutch life. |
| Reduces manual labor and human error. | Suitable for small-scale workshops as well as large-scale production units. |
