Vertical Injection Moulding Machine

Plastic Making Machine

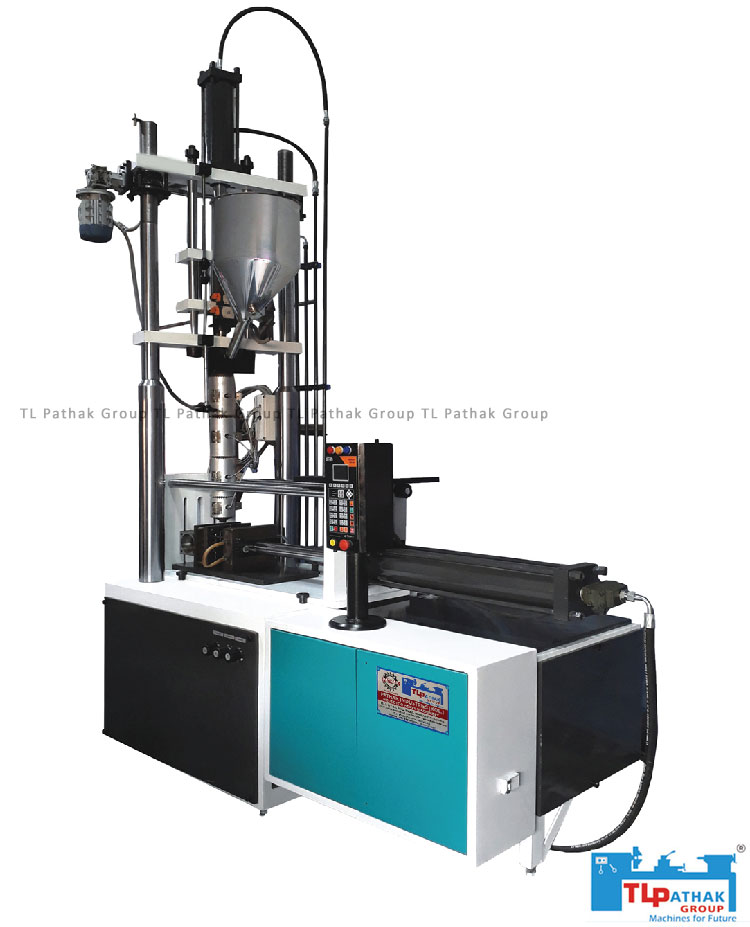

Vertical Injection Moulding Machine enables simultaneous pre-moulding, injection moulding, and post-moulding operations with many moulds.The two parts of the mould move vertically, up and down, to open and close in vertical injection moulding. the injection mechanism is situated near the top of the mould. As a result, it needs less need for manual intervention and operation, as well as enhanced efficiency, productivity, and cost savings.

Send Enquiry

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back

Specifications

INJECTION UNIT	TOP PP	85	100	130	170	220	260	290	350	400	450	550	650	750
Screw Diameter	MM	35	38	42	45	50	55	60	70	75	80	85	90	95
Screw L/D Ratio	-	19	20.3	22	22	22	22	22	20	20	20	21.1	21	22
Shot size (Theroretical)	CM3	160	193.2	277	357	490	704	805	1226	1520	1910	2468	2582	3195
Injection Weight (PS)	CMS	146	176	252	325	446	641	733	1226	1383	1738	2246	2350	2907
Injection Pressure	MPA	170	184	171	177	168	170	170	168	173	172	167	164	175
Screw Speed	R/MIN	225	210	185	180	155	220	220	160	160	155	150	125	130
CLAMPING UNIT
Toggle Stroke	MM	320	350	380	435	475	540	590	670	710	760	900	930	1000
Clamp Tonnage	KN	850	1000	1300	1700	2200	2600	2900	3500	4000	4500	5500	6500	7500
Tia Bar Diameter	MM	60	65	70	80	90	95	100	110	120	130	150	160	165
Space Between Tia Bar	MM	360x 340	370x 370	420x 420	470x 470	520x 520	570x 570	620x 620	710x 630	760x 670	800x 720	900x 820	960x 880	1000x 940
Max.Mold Height	MM	350	380	450	520	560	600	630	710	780	800	850	900	1000
Min Mold Height	MM	150	150	160	180	200	200	200	260	250	300	350	350	400
Ejector Stroke	MM	90	120	140	140	150	150	150	200	200	200	250	260	300
Ejector Tonnage	KN	30	38	50	50	70	70	70	90	110	110	250	200	200
OTHERS
Max.Pump Pressure	MPA	16	16	16	16	16	16	16	16	16	16	16	16	16
Electric Motor	KW	11	13	13	18.5	18.5	30	30	37	37	45	55	30+30	30+37
Heater Power	KW	6.5	7.5	8	12.5	14	19	19	24.5	26	34	36	37.2	49
Machine Dimension (LxWxH)	M	3.9 x 1.2 x 1.8	4.3 x 1.3 x 2.0	4.6 x 1.5 x 2.1	5.1 x 1.5 x 2.2	5.7 x 1.6 x 2.3	6.2 x 1.5 x 2.2	6.3 x 1.7 x 2.4	7.3 x 1.8 x 2.2	7.3 x 1.8 x 2.2	7.6 x 1.96 x 2.41	9.3 x 2.1 x 2.4	9.6 x 2.4 x 2.7	1.6 x 2.6 x 2.8
Machine Weight	T	2.8	3.4	4	6	7	8.3	9.3	12.5	14.2	18.8	23	32	39

Applications

Moulding Machine Application 1

Moulding Machine Application 2

Moulding Machine Application 3

Moulding Machine Application 4
