All Geared Radial Drill Machine RD-50-A-Series

Drill Machines
The All Geared Radial Drill Machine is a powerful industrial drilling machine designed for heavy-duty operations on large and heavy workpieces. Its radial arm allows the drill head to move both vertically and horizontally, making it highly versatile for a variety of drilling operations.
From ₹
550,000 To 785,000

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-8035735963 OR Call Me Back

Electric Coolant Pump

Electric Motor & Starter

Box Table

Electric Wiring & Limit Switches

Pannel Board

Digital Read Out

Machine Lamp

Tilting Table

Machine Vice

TYPE RD50A
Drilling Capacity in Mild Steel 50 mm
Maximum Drilling Radius 1300 mm
Max. Distance between Spindle and Base 1250 mm
Spindle Travel 250 mm
No.of Spindle Speeds 12
Range of Spindle Speeds RPM 45-1000
No.of Spindle Feeds 6
The range of Spindle Feeds mm/rev. 0.12-1.25
Main Drive Motor 5 HP
Elevating Motor 3 HP

We are one of the most reputable manufacturers and exporters of all geared radial drill machines for the last 20 years. However, our company is ISO certified, therefore, we provide the best quality machines to our customers. We use only chrome-nickel steel to make the gear and spindle. We also provide an additional feature of hydraulic clamping, if required by our customers.

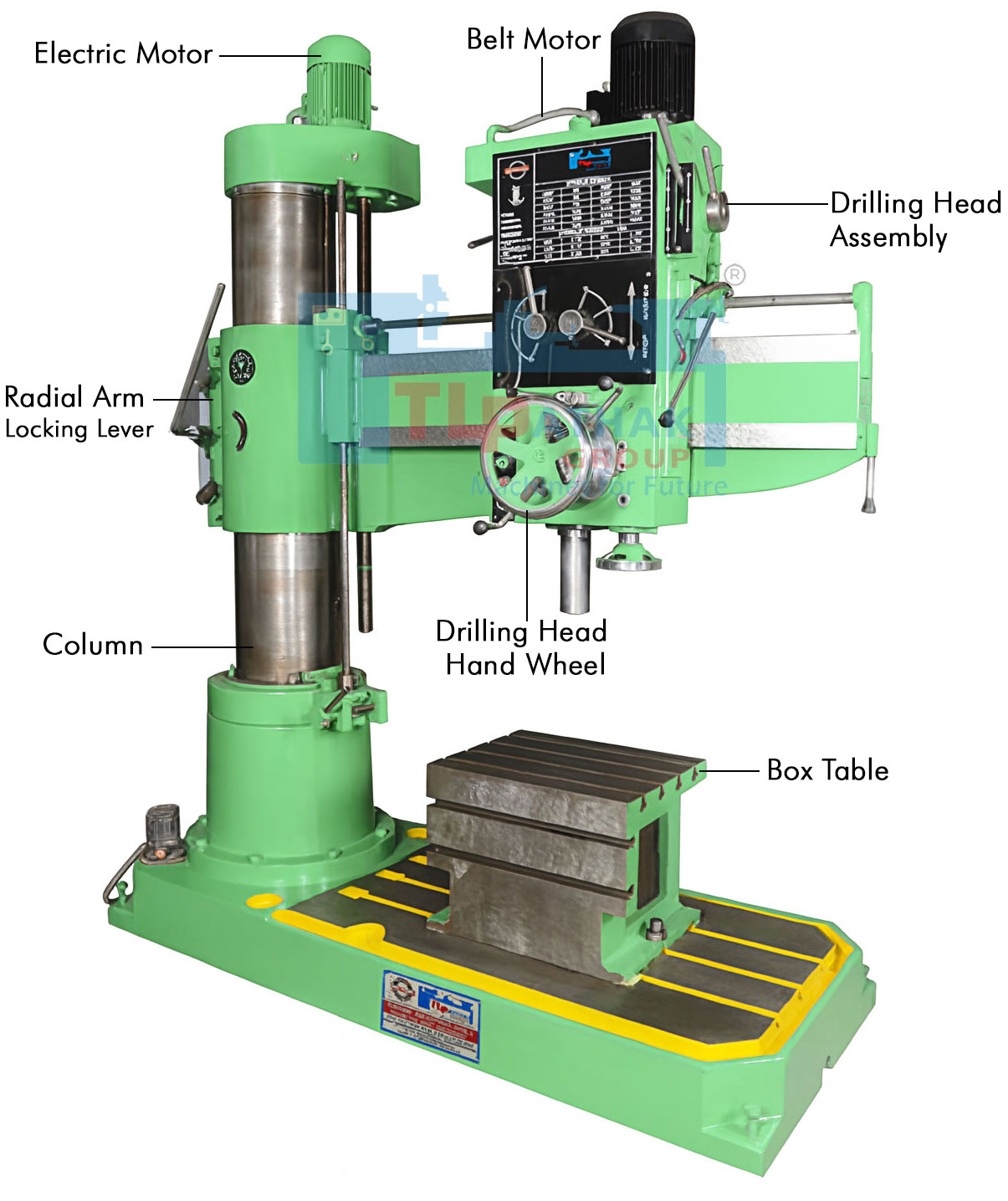

3D angled front view with all parts labeled for All Geared Radial Drill Machine

Key Features:

All Geared Drive:
Gear-driven system provides high torque and consistent speed control without belt slippage.
Radial Arm Movement:
The arm can rotate around the column and move vertically, allowing the drill head to reach multiple positions on the workpiece.
Rigid Construction:
Made from high-grade cast iron and steel components for stability and vibration-free operation.
Auto Feed & Manual Feed Options:
Equipped with automatic feed for efficient drilling and manual control for precision.
Gearbox-Driven Spindle:
Multiple spindle speeds and feeds are available via gear change for working with different materials.

Rolling Mill

Tool Rooms

Educational Institutes

Workshops

Small & Medium Scale Industries

Fabrication Workshops

Precision drilling

Fabrication units

Drilling metal

Drilling wood

Drilling plastic
