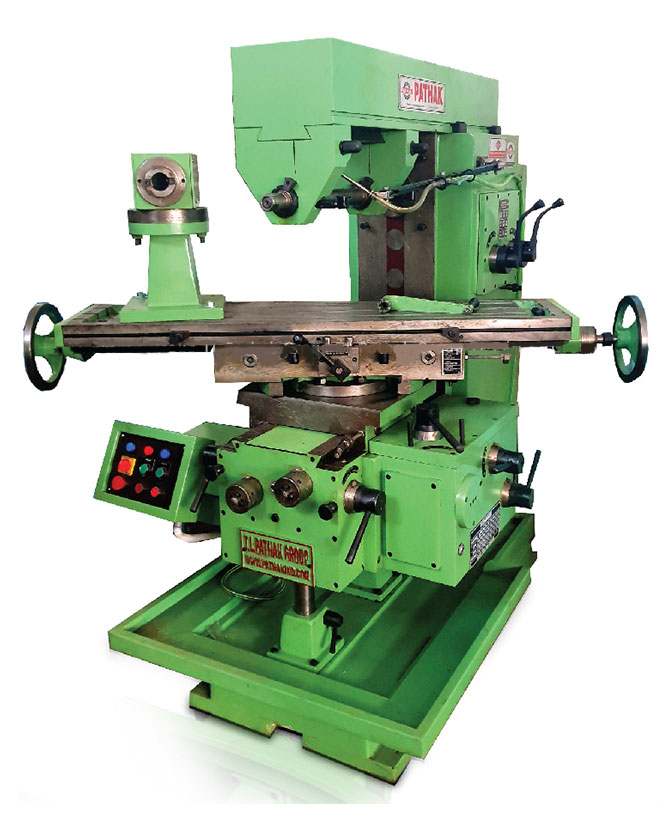

All Geared Milling Machine
Milling MachinesAn All Geared Milling Machine is a highly versatile and robust industrial machine tool designed for precision cutting, shaping, and drilling of solid materials such as metals, wood, and plastics. Unlike belt-driven models, this machine is equipped with a gear-driven system, which provides greater torque, stability, and efficiency, making it ideal for heavy-duty operations and continuous production in workshops and industries.
From ₹
600,000
To
750,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Machine Vice
Rotary Table
Rack Cutting Attachment
Slotting Attachment
Dividing Head
Vertical Attachment
| MODEL | PUM 2 | PUM 3 | PUM 4 | PUM 5 | PUM 6 |
TABLE |
|||||
| Working Surface | 1300 x 300 | 1400 x 330 | 1600 x 350 | 180 x 400 | 2000 x 450 |
| T.Slot Nos./ Size | 3.16 | 3.22 T | 3.22 T | 3.22 T | 3.22 T |
| T.Slot Centre | 70 | 80 | 85 | 90 | 95 |
| Swivel | + 45 deg | + 45 deg | + 45 deg | + 45 deg | + 45 deg |
| Longitudinal Travel- X | 700 | 800 | 1000 | 1200 | 1300 |
| Cross Travel-Y | 215 | 260 | 340 | 380 | 450 |
| Vertical Travel-Z | 450 | 510 | 600 | 650 | 700 |
FEEDS |
|||||
| No. of Feeds | 18 | 18 | 18 | 18 | 18 |
| Long.Feed/Min | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Cross Feed/Min | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Vert.Feed/Min | 3-70 | 3-70 | 3-70 | 3-70 | 3-70 |
| No.of Rapid Feed | 1 | 1 | 1 | 1 | 1 |
| Rapid Long & Cross / Min | 1050 | 1050 | 1050 | 1050 | 1050 |
| Rapid Vertical Min | 175 | 175 | 175 | 175 | 175 |
SPINDLE |
|||||
| No. of Spindle Speeds. | 12 | 12 | 12 | 12 | 12 |
| Range of Spindle Speeds | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM |
| Spindle Taper | ISO 40 | ISO 40 | ISO 40 | ISO 50 | ISO 50 |
| Arbor Diameter | 25.4 | 25.4 | 32 | 40 | 40 |
POWER |
|||||
| Main Motor (H.P) | 3 | 5 | 7.5 | 10 | 10 |
| Feed Motor (H.P) | 2 | 2 | 3 | 3 | 5 |
| Coolant Motor (H.P) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
We are considered one of the best manufacturers and suppliers for all types of geared milling machines as all of our milling machines are made with the use of the latest technology of high-grade standard cast iron, spindles, and gears of quality steels. All of our geared milling machines are designed under the supervision of experienced technical personnel and qualified engineers.

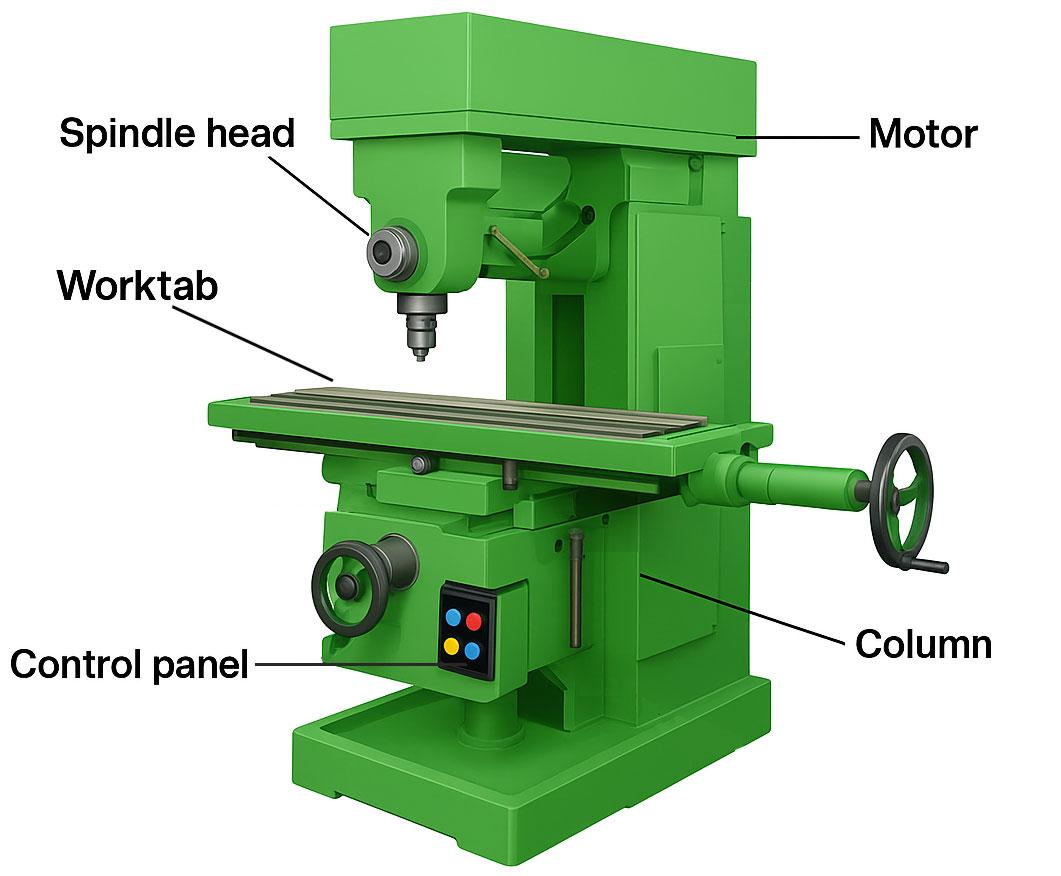

3D angled front view with all parts labeled for All Geared Milling Machine
Key Features
| All-Geared Drive System Ensures smooth transmission of power with minimal slippage, enhancing durability and accuracy. |
| Rigid Structure Built with a heavy-duty cast iron body for vibration-free operation and long service life. |
| Multiple Spindle Speeds Allows the operator to select a wide range of speeds according to the material and type of milling work. |
| Versatility Capable of performing a variety of milling operations such as face milling, end milling, slotting, drilling, gear cutting, and contouring. |
| Automatic Feed Mechanism Provides precise and effortless movement of the worktable in X, Y, and Z axes. |
| High Accuracy Designed to maintain dimensional precision even under continuous heavy-duty usage. |
Tool Rooms
Educational Institutes
Aerospace
Maintenance workshops
Fabrication units
Automobile Parts Manufacturing
