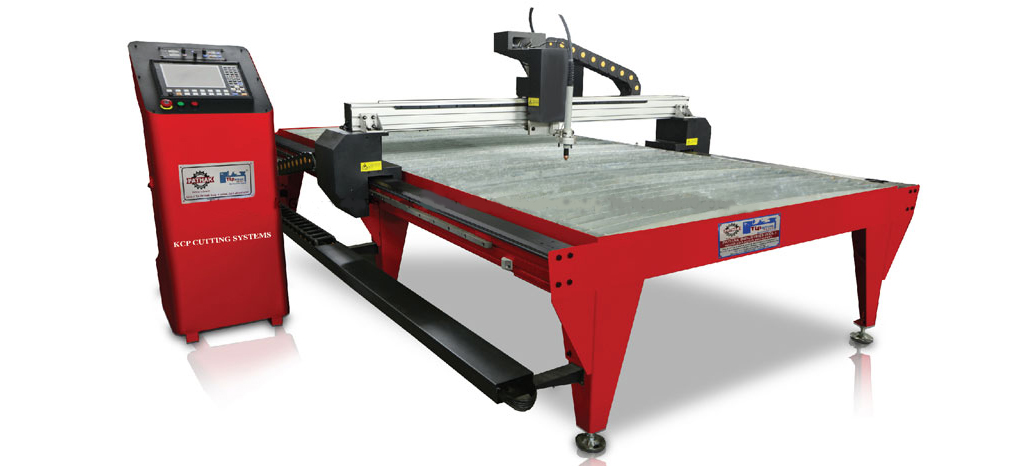

Arc Mate Light Plasma Cutting Machine
CNC MachinesWe provide a vast range of arc mate light plasma cutting machines formulated, manufactured, and produced in such a way that it adapts to all the metal cutting needs of every type of industry. These machines are built by us through an authoritarian manufacturing procedure and are competent to cut varied iron and non-iron metal through the usage of condensed air plasma.
From ₹
1,085,000
To
1,276,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
SPECIFICATION |
DESCRIPTION |
| Machine Type | Lite Table top |
| Model No. | Arcmate Lite PC1530PL |
| Advance Feature | Wireless remote for x-y axis alignment |
| Driving configuration | Dual drive 86 series steper motor |
| Cutting head | Plasma with Auto z-axis up-down movement |
| Max.Travel Speed | 6000mm/min |
| Input Power | Single Phase 220V, 50 Hz + Plasma (depends on power source selection) |
| Gases required | Compressed air |
| Z-axis (torch) lifting distance | < 100mm |
| Working accuracy | +/- 0.15mm |
| Cutting Capacity | 1-16mm (depending on plasma rating) |
| Controller | 7'' wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. |
| Nesting software | Fast Cam basic |
| Cutting Table Base | Standard water-table with weight carrying capacity of 600kg |
| Req. Intallation Area | W 2.4m * L3.7m * H1.5m |
