Heavy Duty Pipe Tube Bending Machine

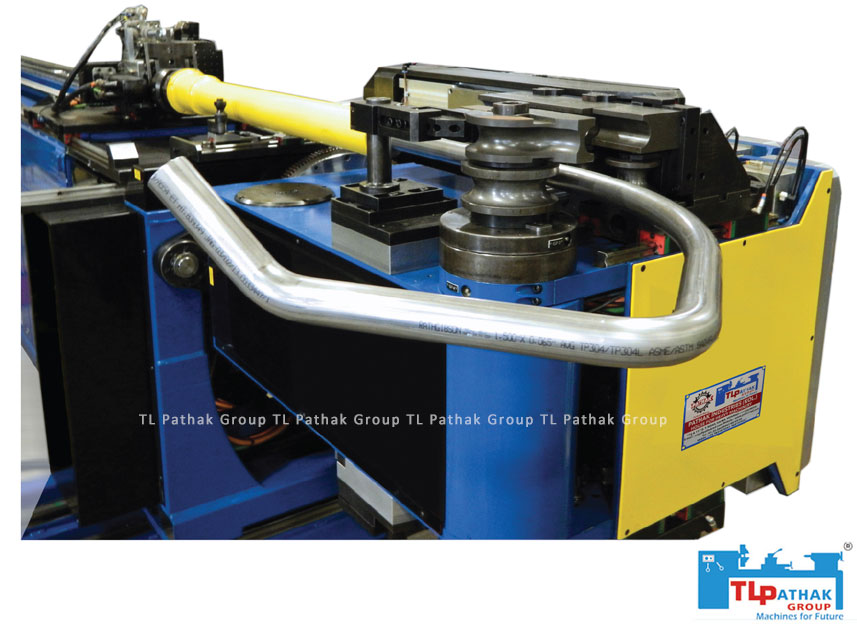

Section Bending MachineWe provide the best heavy-duty pipe tube bending machine. It is just perfect for gymnasium equipment and mainly chemical plant factories. Our machine works very seamlessly and helps in the prevention of leakage. Heavy-duty pipe tube bending machines work electrically with PLC. Our machine has perfectly undergone the operational qualification.
Heavy Duty Pipe Tube Bending Machine use for building construction, furniture's, automotive, Gymnasium Equipment - Baby Strollers, Chemical Plant - petrochemical plants, Stores display equipment's.
Sequence of Bending
- Insert tube over mandrel
- Grip end of tube with clamping die
- Close pressure die
- Select bending angle
- Initiate bending electrically through PLC
- Release both clamping and pressure die
- Remove bent portion out of roller due
- Proceed with next bend
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL NO. | PHDPB 32 | PHDPB 45 | PHDPB 65 | PHDPB 100 | PHDPB 150 | |
Max. Capacity (Dia .X Thickness) |
Max. mm Min. |
32 X 2.0 6.00 |
45 X 3.0 12.00 |
65 X 6.0 20.00 |
114 X 7.0 25.00 |
168.3 X 7 50.00 |
| Bend Radius CLR* | Max. mm Min. |
120 20.0 |
150 25.0 |
350 30.0 |
350 40.0 |
450 75 |
Min. Bend Radius (In terms of D*) |
1.5 D | 1.5 D | 1.5 D | 1.5 D | 1.5 D (upto 100mm dia pipe) 2.5 D above 100mm dia pipe) |
|
| Standard Length over Mandrel Extra Length (available on request) | Mtrs. | 2.01 | 2.01 | 2.01 | 4.01 | 4.01 |
| Bend Angle Range | Deg | 5-180 | 5-180 | 5-180 | 5-180 | 5-180 |
| Bending Direction | PCB Cards & Boards | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise |
| Bending Speed | Deg/Sec. | 60 | 50 | 40 | 30 | 15 |
| Indicative Prodution Rate (Approx.) | 90 Deg Bends/Hr | 150 | 150 | 125 | 100 | 30 |
| Bend Angle Accuracy | Deg | +- 0.25 | +- 0.25 | +- 0.25 | +- 0.25 | +- 0.25 |
| Motor Capacity | HP | 5 | 7.5 | 10 | 20 | 30 |
| Weight (Approx.) | Tonners | 1 | 1.4 | 2 | 4 | 8 |
