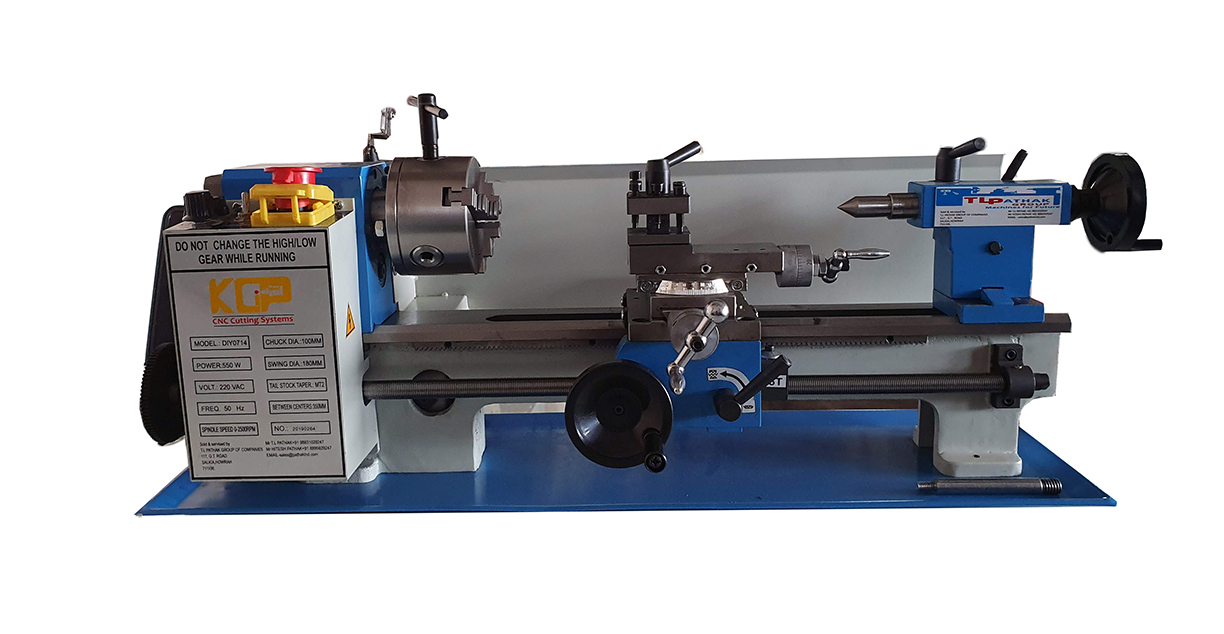

Bench Lathe Machine
Lathe MachinesWe are considered one of the largest and best-selling lathe machines in India because of the quality we provide to our customers. The headstock gears of our bench lathe machines are made of high-quality steel so that the machine may last for a long time. However, we offer the most affordable lathe machines at the most affordable prices.
From ₹
88,000
To
110,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackSwing over bed | 180 mm |
Distance between centers | 200/300/350 mm |
Hole through spindle | 20 mm |
Cross slide travel | 65 mm |
Compound travel | 55 mm |
Spindle taper | MT3 |
Tailstock taper | MT2 |
Spindle speed low range | 100-1100 +-10% rpm |
High range | 100-2500 +- 10% rpm |
Motor output power | 250 w |
Range of thread metric version | 0.4-2.0 MM (10 thread pitches) |
Imperial version | 12-52 TPI (18 thread pitches) |
Overall dimension (LxWxH) | 700x300x300 mm |
Weight (Net/Gross) | 40/42 kg |
Packing Size | 790x360x390 mm |
