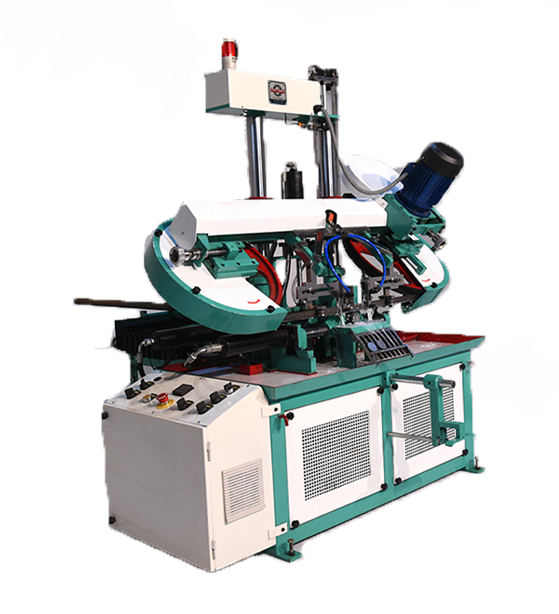

Horizontal Double Column Bandsaw Machine Model-200 F.A.
Cutting MachinesThe Horizontal Bandsaw 200 F.A is a cutting machine designed and manufactured by TL Pathak Group in India. This machine is used to cut various types of materials, including metals, plastics, and wood, into precise and accurate shapes and sizes.
The Horizontal Bandsaw 200 F.A features a powerful motor that drives the saw blade to make quick and efficient cuts. The machine has a robust and sturdy structure made of high-quality materials, ensuring durability and longevity.
The saw blade of the Horizontal Bandsaw 200 F.A is easy to replace and adjust, making it suitable for cutting different materials of varying thicknesses. The machine also features a user-friendly interface that allows for easy operation and control.
Overall, the Horizontal Bandsaw 200 F.A is a reliable and efficient cutting machine that is ideal for industrial and manufacturing applications.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | 125 F.A. | 200 F.A. |
| Cutting Capacity Round Bar(mm) | 130 | 200 |
| Square(mm) | 125x125 | 200x200 |
| Bunch Cutting(mm) | 125x125 | 200x200 |
| Blade Size(mm) | 27x0.9x2515 | 27x0.9x3200 |
| Motor power | 1 H.P./1440 RPM | 0.85 H.P./960 RPM |
| Coolant Pump Power | 0.15 H.P./2800 RPM | 0.15 H.P./2800 RPM |
| Hydraulic Drive Motor | 0.25 H.P./1500 RPM | 1 H.P./1500 RPM |
| Cutting Speed Control | Power Hydraulic | Power Hydraulic |
| Blade Speed Min/Mtr | 32/42 | 32/44/56 |
| Net Weight | 335 kg | 625 kg |
| Overall Dimension | 1250x1500x1600(LxWxH) | 1500x1900x1750(LxWxH) |
