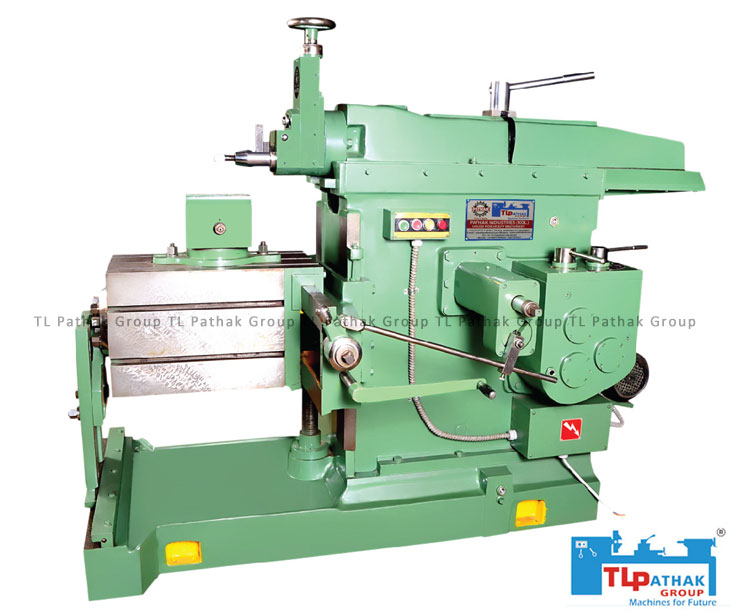

All Geared Shaping Machine Model PSG-600

Workshop Equipments

The All Geared Shaping Machine Model PSG-600 by TL Pathak Group in India is a high-performance machine designed for shaping and cutting various workpieces. With its robust construction and precise engineering, this machine ensures excellent accuracy and durability. It features an all geared drive system that delivers smooth and consistent operation. The PSG-600 offers a generous stroke length and adjustable speed control, allowing for versatility and adaptability to different shaping tasks. Equipped with a sturdy worktable and a powerful motor, this machine can handle heavy workloads with ease. It is a reliable and efficient tool for shaping applications in industries such as manufacturing, automotive, and engineering.

From ₹
75,000 To 85,000

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
MODEL SS12 SS18 SS24 SS30 SS36 SS40
Maximum Working Stroke 14'' 20'' 26'' 32'' 38'' 42''
Length of ram without tool slide 30'' 40'' 53'' 60'' 66'' 75''
Ram bearing in Column 20'' 26'' 31'' 37'' 41'' 44''
Ram bearing width 7.5'' 10.5'' 12'' 12.5'' 12.5'' 14''
Tool Slide Traverse 5'' 6'' 8'' 9'' 10'' 11''
Maximum distance from table to ram 14'' 15'' 16'' 18'' 20'' 24''
Maximum distance from table to ram 2'' 2'' 2'' 2'' 2'' 3''
Horizontal traverse of the table 16'' 20'' 26'' 30'' 32'' 36''
No of speed 3 3 4 4 4 4
Length and width of cross slide 25''*10.5'' 31''*11'' 38''*12'' 43''*12.5'' 46''*12.5'' 51''*15''
Top clamping surface of table 14''*11'' 18.5''*12'' 25''*15 31''*16'' 37''*18.5'' 40''*20.5''
Size of base plate 40''*16.5'' 50''*22'' 64''*23'' 76''*24'' 82''*26'' 90''*30''
Power required 1 H.P. 2 H.P. 3 H.P. 5 H.P. 5 H.P. 7.5 H.P.
Approximate net weight 800 kg. 1200 kg. 1800 kg. 2300 kg. 3200 kg. 4000 kg.
