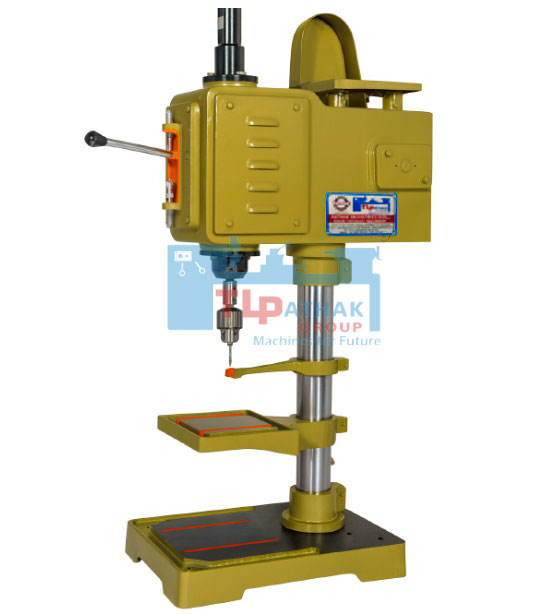

Tapping Machine
Drill MachinesThis specific Tapping Machine with a capacity of 12 mm is suitable for threading operations up to M12 size, making it ideal for small to medium-sized components in industries like automotive, machinery, fabrication, and fastener production.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Specification | TP12 | TP6 |
| Tapping Machine Capacity | 12 mm | 6 mm |
| Drilling Capacity | 8 mm | 3 mm |
| Spindle Travel / Table travel (6mm) | 75 mm | 60 mm |
| Distance Soindle to Colum | 14 0mm | 80 mm |
| Distance between chuck to base | 45 0mm | 190 mm |
| Distance between chuck to work table | 380 mm | Moveable |
| Size of base Plate - LxB | 480x350 mn | 370 x 250 mm |
| Sixe of Work Table LXB | 190x220 mm | 150 x 150 mm |
| Diamter of Column | 74mm | 47 nnm |
| V- Belt (Inside) | inside A-71 | - |
| V- Belt for Motor (Outside) | A-25 | A 36 |
| No. of Spindle Speeds | 3 | 3 |
| Forwards Speed Range | 350/620/1100 | 480 / 750 / 1400 |
| Reverse Speed Range | 420/745/1315 | 480 / 750 / 1401 |
| Motor Single phase or three phase | 0.75/ 1H.P 1400 R.P.M | 025 H,P 1440 R.P.M |
| Overall Height | 1245 mm | 650 mm |
| Overall Width | 370 mm. | 270 mm |
| Overall front to back | 600 mm | 540 mm |
| Weight Approx | 120 Kg. | 50 Kg. |
Head
Made from close grained cast iron accurately bored, rimer ring and honed in perfect paralyze between the column and spindle. Easy clamping device fitted for locking it on the column.
Spindle
Made from EN8 to withstand distortion it is lanced and mounter on roller bearings.
Table
Proportionately designed for rigidity and sufficient surface are is provided to hole down job. It can vertically powered or can be vertically or raised by worm and rack raised by worm rack the slotting is provided to hold the heavy job.
Base
The is of design and provided sufficient area for heavy jobs. Slots are provided for convenient holding.
3D angled front view with all parts labeled for Tapping Machine
Key Features:
| Tapping Capacity: Up to 12 mm in steel and similar materials. |
| Rigid Structure: Heavy-duty column and base ensure stability during operation. |
| Adjustable Table Worktable can be adjusted for height and rotation to accommodate different job sizes. |
| High Precision Chuck Ensures accurate alignment of the tap with the drilled hole. |
| Easy Operation Equipped with a lever and feed mechanism for smooth tapping. |
| Durability Robust body construction ensures long service life and resistance to vibration. |
Tool Rooms
Educational Institutes
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Automotive
Industrial vehicles
Machine tools
Aerospace
Tapping Machine Application
Manufacturing of nuts
Manufacturing of bolts
Threading in machine parts
Threading Flanges and fittings
