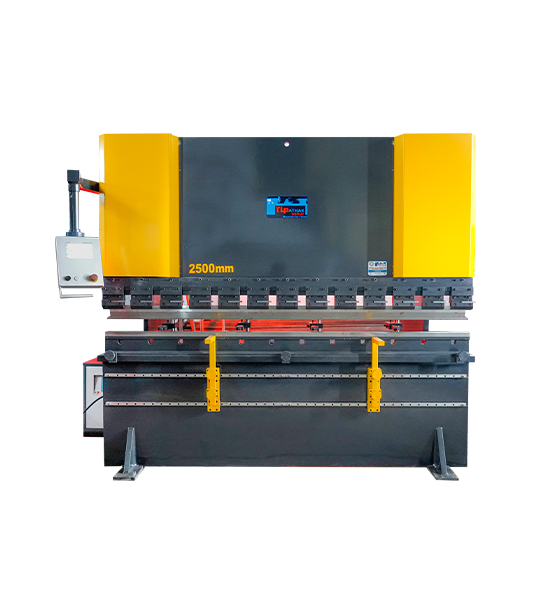

NC Press Brake Machine
Sheet Metal MachinesThe NC Press Brake Machine from TL Pathak Group is a cutting-edge solution designed for precision sheet metal bending. Featuring advanced Numerical Control (NC) technology, this machine ensures unparalleled accuracy and efficiency in metal forming processes. With a user-friendly interface, operators can easily program and control the bending parameters, allowing for intricate and customized designs,equipped with a robust frame and high-quality components, the NC Press Brake Machine guarantees durability and reliability in heavy-duty industrial applications. Its versatile design accommodates a wide range of materials and thicknesses, making it suitable for diverse manufacturing needs. The machine's precision and repeatability contribute to enhanced productivity and cost-effectiveness in metal fabrication operations.
TL Pathak Group's commitment to innovation and quality is evident in the NC Press Brake Machine, making it a preferred choice for businesses seeking cutting-edge solutions for their sheet metal bending requirements.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | Pressing Force | Bending Length (mm) | Stroke Power | Max Day Light | Table Height | Dist. Between | Throat Depth | Approaching Speed | Pressing Speed | Return Speed | Motor Power |
NCPB 1612 |
50 Tons |
1600 mm |
125 mm |
350 mm |
800 mm |
1250 mm |
250 mm |
50 mm/sec |
10 mm/sec |
40 mm/sec |
5 H.P. |
NCPB 1612 |
80 Tons |
1600 mm |
125 mm |
350 mm |
800 mm |
1250 mm |
250 mm |
50 mm/sec |
10 mm/sec |
40 mm/sec |
5 H.P. |
NCPB 2116 |
50 Tons |
2100 mm |
125 mm |
450 mm |
800 mm |
1600 mm |
300 mm |
50 mm/sec |
10 mm/sec |
40 mm/sec |
5 H.P. |
NCPB 2116 |
80 Tons |
2100 mm |
125 mm |
450 mm |
800 mm |
1600 mm |
300 mm |
70 mm/sec |
10 mm/sec |
50 mm/sec |
7.5 H.P. |
NCPB 2520 |
80 Tons |
2500 mm |
150 mm |
450 mm |
900 mm |
2000 mm |
300 mm |
80 mm/sec |
10 mm/sec |
60 mm/sec |
7.5 H.P. |
NCPB 2520 |
100 Tons |
2500 mm |
150 mm |
450 mm |
900 mm |
2000 mm |
300 mm |
80 mm/sec |
10 mm/sec |
60 mm/sec |
7.5 H.P. |
NCPB 3125 |
80 Tons |
3100 mm |
150 mm |
550 mm |
900 mm |
2500 mm |
300 mm |
80 mm/sec |
10 mm/sec |
60 mm/sec |
7.5 H.P. |
NCPB 3125 |
100 Tons |
3100 mm |
150 mm |
550 mm |
900 mm |
2500 mm |
300 mm |
80 mm/sec |
10 mm/sec |
60 mm/sec |
7.5 H.P. |
NCPB 3125 |
150 Tons |
3100 mm |
150 mm |
550 mm |
900 mm |
2500 mm |
300 mm |
70 mm/sec |
10 mm/sec |
50 mm/sec |
15 H.P. |
NCPB 3125 |
200 Tons |
3100 mm |
200 mm |
550 mm |
900 mm |
2500 mm |
300 mm |
70 mm/sec |
10 mm/sec |
50 mm/sec |
20 H.P. |
NCPB 3125 |
300 Tons |
3100 mm |
250 mm |
550 mm |
900 mm |
2500 mm |
300 mm |
70 mm/sec |
10 mm/sec |
50 mm/sec |
25 H.P. |
NCPB 3125 |
400 Tons |
3100 mm |
250 mm |
550 mm |
900 mm |
2500 mm |
300 mm |
70 mm/sec |
10 mm/sec |
50 mm/sec |
30 H.P. |
NCPB 4135 |
250 Tons |
4100 mm |
200 mm |
550 mm |
900 mm |
3100 mm |
300 mm |
60 mm/sec |
10 mm/sec |
40 mm/sec |
20 H.P. |
NCPB 4135 |
400 Tons |
4100 mm |
250 mm |
550 mm |
900 mm |
3100 mm |
300 mm |
60 mm/sec |
10 mm/sec |
40 mm/sec |
30 H.P. |
