Hydraulic Hose Crimping Machine - Indie Crimp Veer

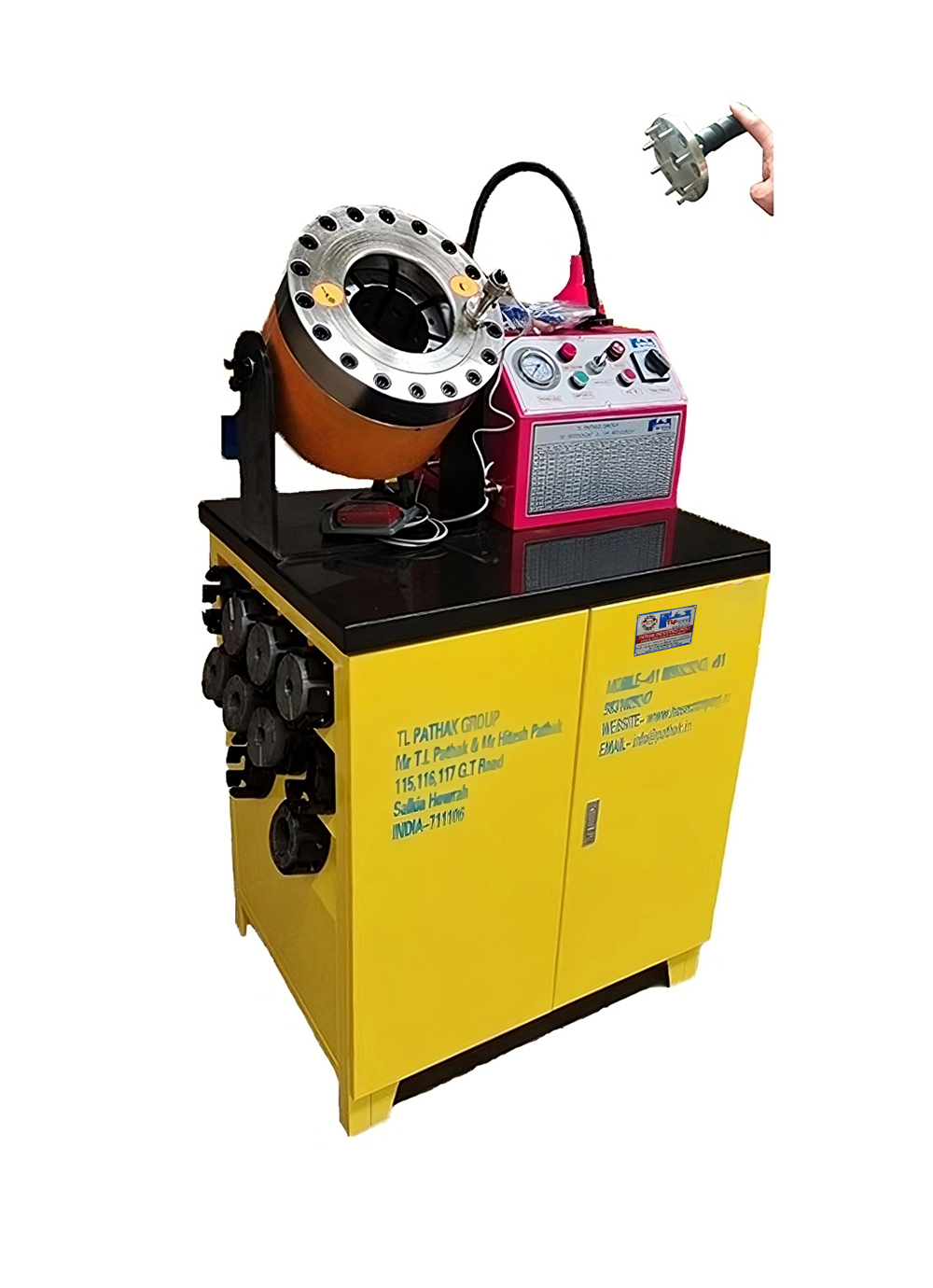

Hose Crimping machinesTL Pathak Group introduces the Indie Crimp Veer Machine, a Hydraulic Hose Crimping Machine designed for precision and efficiency in crimping hydraulic hoses. This machine is equipped with advanced hydraulic technology, providing consistent and reliable crimps for a variety of hose sizes and materials. The Indie Crimp Veer Machine boasts a robust construction, ensuring durability and stability during operation,featuring user-friendly controls, this crimping machine allows operators to achieve accurate and secure crimps with ease. Its versatility makes it suitable for various industrial applications where hydraulic hoses are employed, ensuring optimal performance and safety.
TL Pathak Group's commitment to innovation is evident in the Indie Crimp Veer Machine, delivering a high-quality solution for businesses requiring efficient and reliable hydraulic hose crimping. This machine stands as a testament to the group's dedication to providing advanced technology for diverse industrial needs.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Crimping Range | 6~51mm (1/4~2") |
| Quantity of Mold | 10 sets with long dies 15,18,23,26 (70 mm) 31,36,41 (100 mm) 47,55 (100 mm) 61 (80 mm) |
| Accuracy | 0.01 mm |
| Swept Volume | 2.5L/5L (Optional) |
| System Pressure | 31.5 Mpa |
| Power | 3KW |
| Voltage | 220V,50 HZ,Single Phase |
| Buckling Pressure | 500 T |
| Oil Quantity | 40 L |
| Efficiency | 200 PCS/H |
| Dimension | 800*630*1300 mm |
| Package Dimension | 890*710*1430 mm |
| Net Weight | 310 kg |
| Gross Weight | 320 kg |
| Maximum Open Diameter | 114 mm |
| Range | +- 30mm |
| Tilting Head included Colour Full Body-Yellow,the rest-Black,the head-Orange,Foot Pedal and light included |
