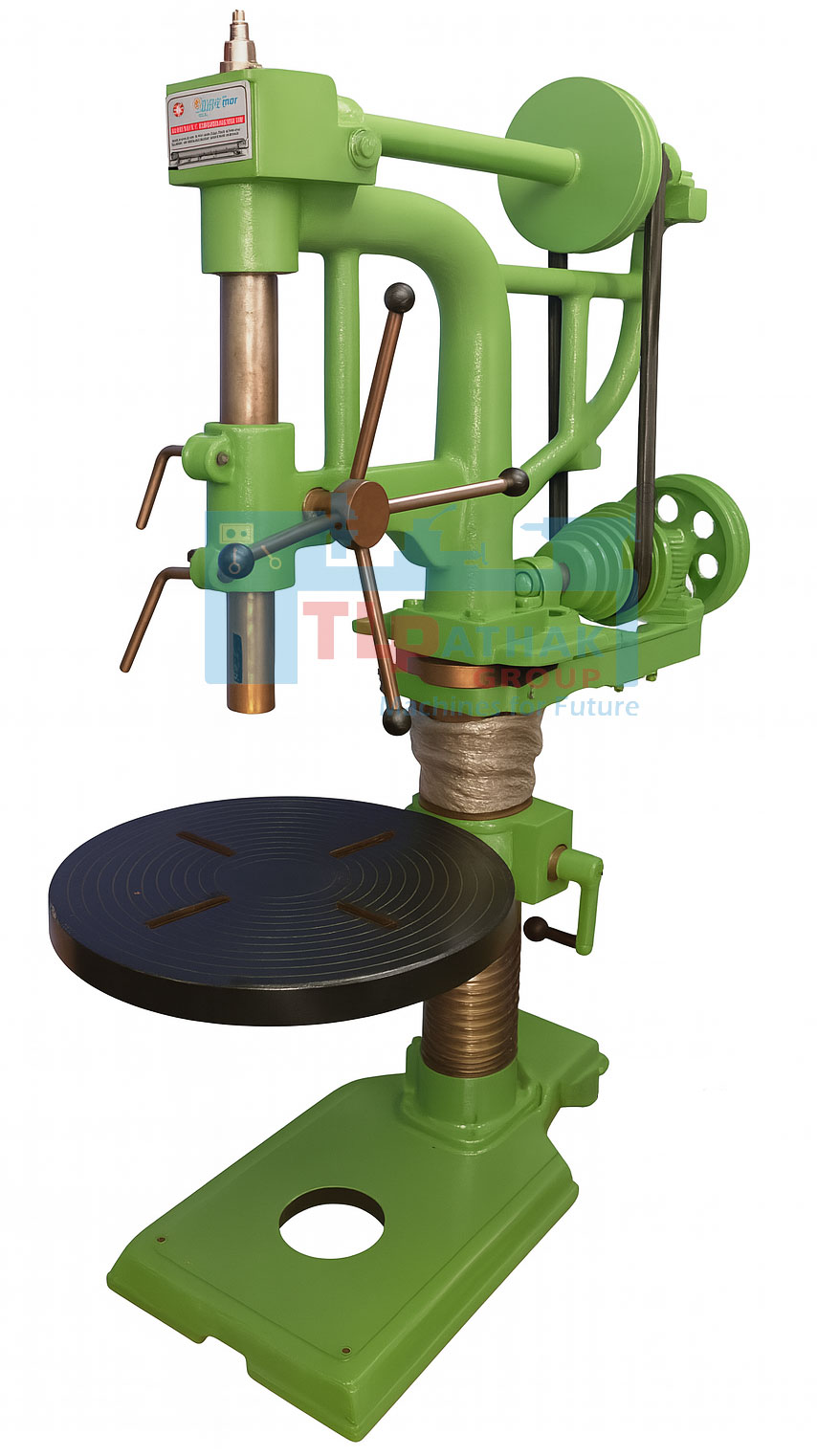

Non Gear Pillar Drill Machine ds 40
Drill MachinesA Non-Gear Pillar Drill Machine is a manually operated vertical drilling machine that uses a flat belt or V-belt drive system instead of mechanical gear transmission. It is ideal for basic to medium-duty drilling operations where variable speed adjustment is required through pulley changes rather than gearbox control.
- Cost-effective and low maintenance
- Simple operation and easy speed adjustment
- Ideal for small-scale and precision work
- Quieter than geared counterparts
From ₹
90,000
To
125,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Drilling capacity in Steel | 40mm |
| Spindle Taper | JT-6/MT-2 |
| Spindle Travel | 87 |
| Pillar Diameter | 48 |
| Pillar Length | 625 |
| Distance btw centre of spindle & pillar front | 150 |
| Max Distance btw Spindle & Table | 250 |
| Max Distance btw Spindle & Base | 363 |
| Table working space | Ø 200 |
| Base Working Surface (Machined) | 175 x 175 |
| Overall size of base | 320 x 320 |
| No of Spindle Speeds | 4 |
| Range of Spindle Speeds (rpm) | 640-1040-1640-2540 |
| V Belt | A 36 |
| Motor | 1/2 H.P |
| Net Weight | 45 Kg |
| Space Occupied (LxBxH) | 390 x 300 x 815 |
We are considered the most reputed manufacturer as we have gained experience of more than 20 years in manufacturing the drilling machines for our customers. All of our non-gear pillar drill machines are tested on various quality parameters before delivering to our customers. The spindle of this machine is made of alloy steel that is accurately machined and grounded.
Key Components
| Pillar/Column: Rigid vertical post supporting the head and table. |
| Drill Head: Houses the motor and spindle assembly; manually operated. |
| Belt & Pulley System: Used to change spindle speeds by shifting belts on stepped pulleys. |
| Spindle & Chuck: Holds and rotates the drill bit. |
| Adjustable Work Table: Moves vertically along the pillar; may tilt or rotate depending on the model. |
| Base: Heavy duty casting to provide stability during operation. |
Tool Rooms
Educational Institutes
Workshops
Small & Medium Scale Industries
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
