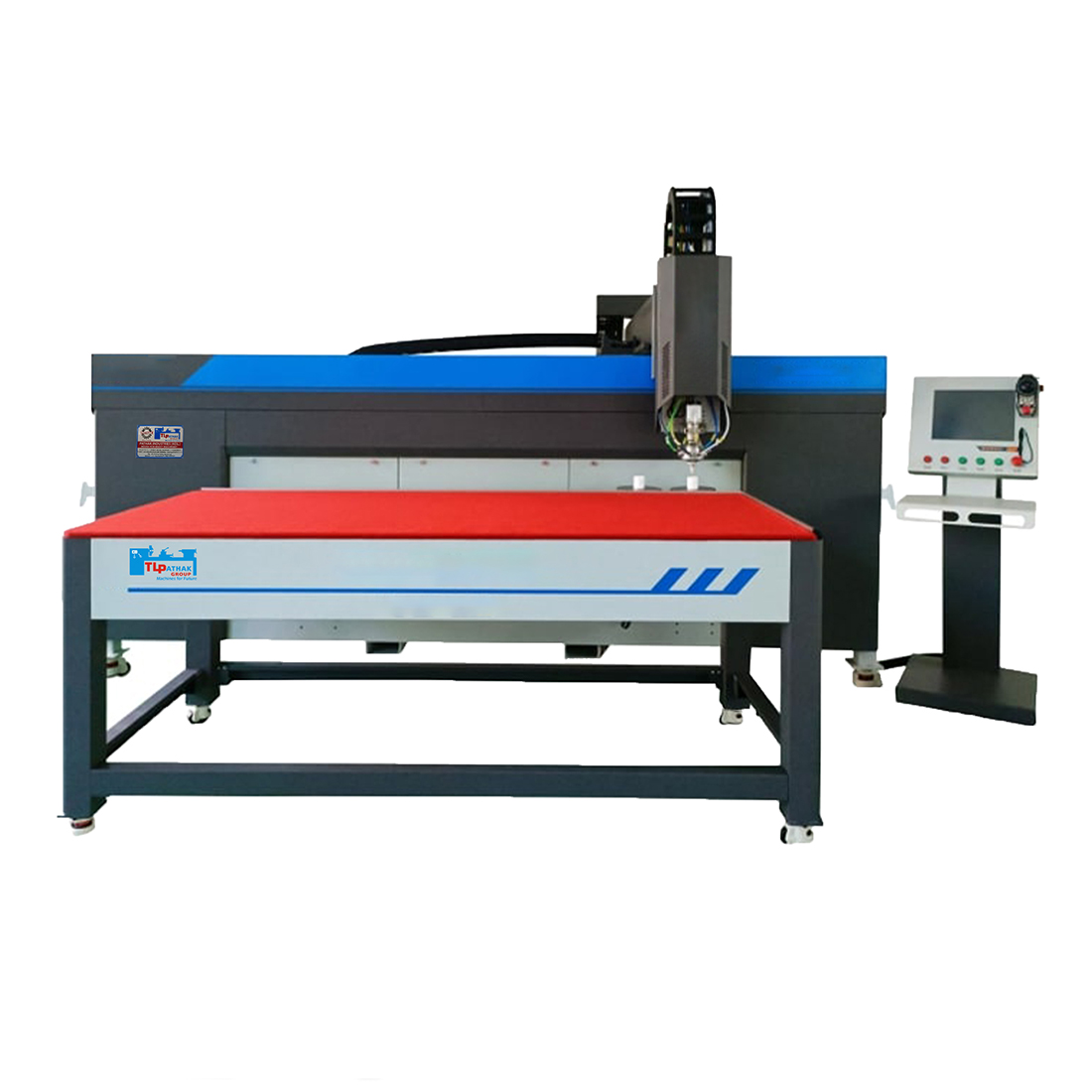

Automatic PU Gasket Sealing Foaming Machine
Special Purpose Machines (SPM'S)The Automatic PU Gasket Sealing Foaming Machine by T.L. Pathak Group is an innovative and efficient solution for precision gasket production. This automated machine utilizes advanced Polyurethane (PU) foaming technology to seamlessly seal and produce gaskets with consistent quality,equipped with a user-friendly interface, operators can easily program and control the foaming process, ensuring accuracy and customization. The machine's automated functionality reduces manual intervention, enhancing productivity and minimizing errors in gasket manufacturing,with a robust design and high-quality components, the Automatic PU Gasket Sealing Foaming Machine reflects T.L. Pathak Group's commitment to providing reliable and technologically advanced solutions in the manufacturing sector. Whether for automotive, industrial, or other applications, this machine offers a streamlined and efficient process for producing PU gaskets, meeting the diverse needs of manufacturers.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPGM-7-2 B/G |
| Working Size (X*Y*Z) | 2500x1250x350 mm |
| No. of Axis | (3+3) |
| Strip Material | PU Foam |
| Strip Width | 3-30 mm |
| Strip Height | 2-15 mm |
| Mixing Ratio | 1:1-10:1 |
| Output Qty | 0.2-7.0 g/s |
| Environment Temp | 40+/-10 C |
| Glue Temp | A – 20+/-3 C B – 20+/-3 C |
| Cleaning Method | High-Pressure water Cleaning |
| Pressure Required | >= 0.5 MPA |
| Voltage | 3 phase 5 lines 380 V, 50 HZ |
| Glue Temp | 20-25 C |
| Total Power | 4-5 Kw |
| Filter Accuracy | 40~50 |
| Glue Head Running Speed | 0~30 m/min |
| Relocation Accuracy | +- 0.03 mm |
| Measurment Accuracy | +- 0.1 % |
| Frame Colour | White RAL5003 and Dark Blue RAL9003 |
| Total Weight | About 1600 kg |
