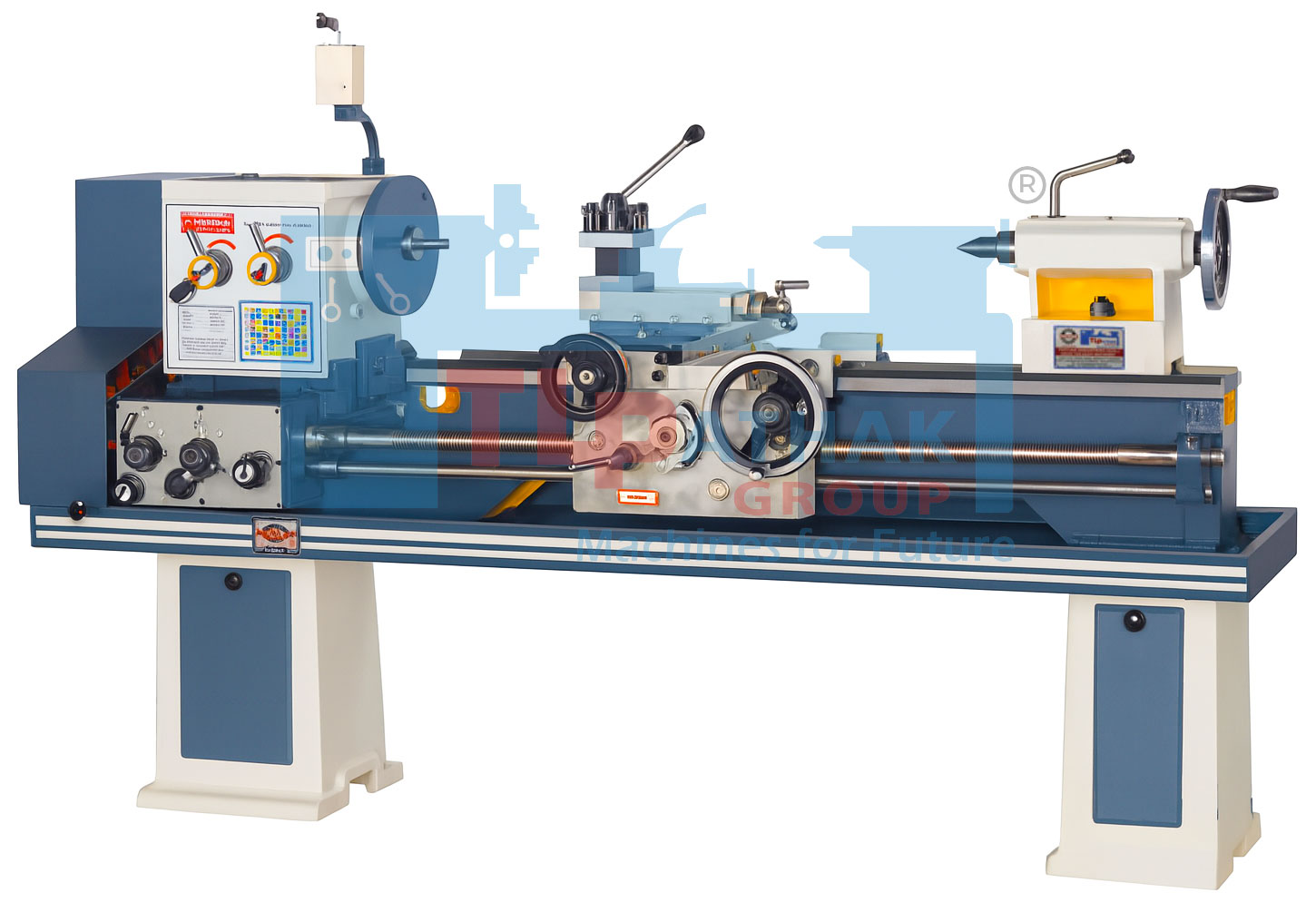

All Geared Lathe Machine Trainer
Lathe MachinesRequest Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Chuck Plate
Norton Gear Box
Motor Pulley
Thread Dial Indicator
Toot Post Spanner
Dead Center-2 Nos
Follow Rest Assembly
Electric Coolant Pump
Electric Motor & Starter
3jaw self centering chuck
Taper Turning Attachment
4jaw Independent Chuck
Double Gap Or Tiple Gap Etc.
Machine Lamp
Steady Rest 1
Splash Guard
| MODEL | PLD 4 G | PLD 6 G |
| Height of Center | 165 | 165 |
| Swing over Bed | 330 | 330 |
| Swing over Slide | 190 | 190 |
| A.B.C. | 600 mm | 1000mm |
| Width of Bed | 242 | 242 |
| SPINDLE | SPINDLE | |
| Bore | 40 | 40 |
| Nose | Thread | Thread |
| Speed-8 R.P.M | 45 to 1000 | 45 to 1000 |
| TRAVEL | TRAVEL | |
| Cross Slide | 180 | 180 |
| Top Slide | 125 | 125 |
| OTHER | OTHER | |
| Lead Screw TPL | 4 | 4 |
| Tail Stock Sleeve Mt | 3 | 3 |
| Power Required (H.P.) | 2 | 2 |
| THREAD | THREAD | |
| Thread Per inch | 4 to 60 | 4 to 60 |
| Thread Per mm | 0.5 to 7.5 | 0.5 to 7.5 |
This all geared lathe machine trainer is specially made for students of engineering colleges and industrial training centers. We offer an excellent quality of trainer all geared lathe machine to our valuable clients only with the help of our team of experts. It is made of closed grain alloy cast iron to maintain full accuracy over a long period of time. You can buy this all geared lathe machine trainer at low prices from our company.
Key Features
| Geared Headstock Offers multiple speed ranges via gear shifting (no belt changes needed). |
| Compact Size Suitable for workshops, labs, and training institutes. |
| Manual Operation Simple controls help trainees understand lathe principles. |
| Thread Cutting Capability Enables metric and imperial thread cutting for practical training. |
| Hardened Bed Ways Ensures durability and precision. |

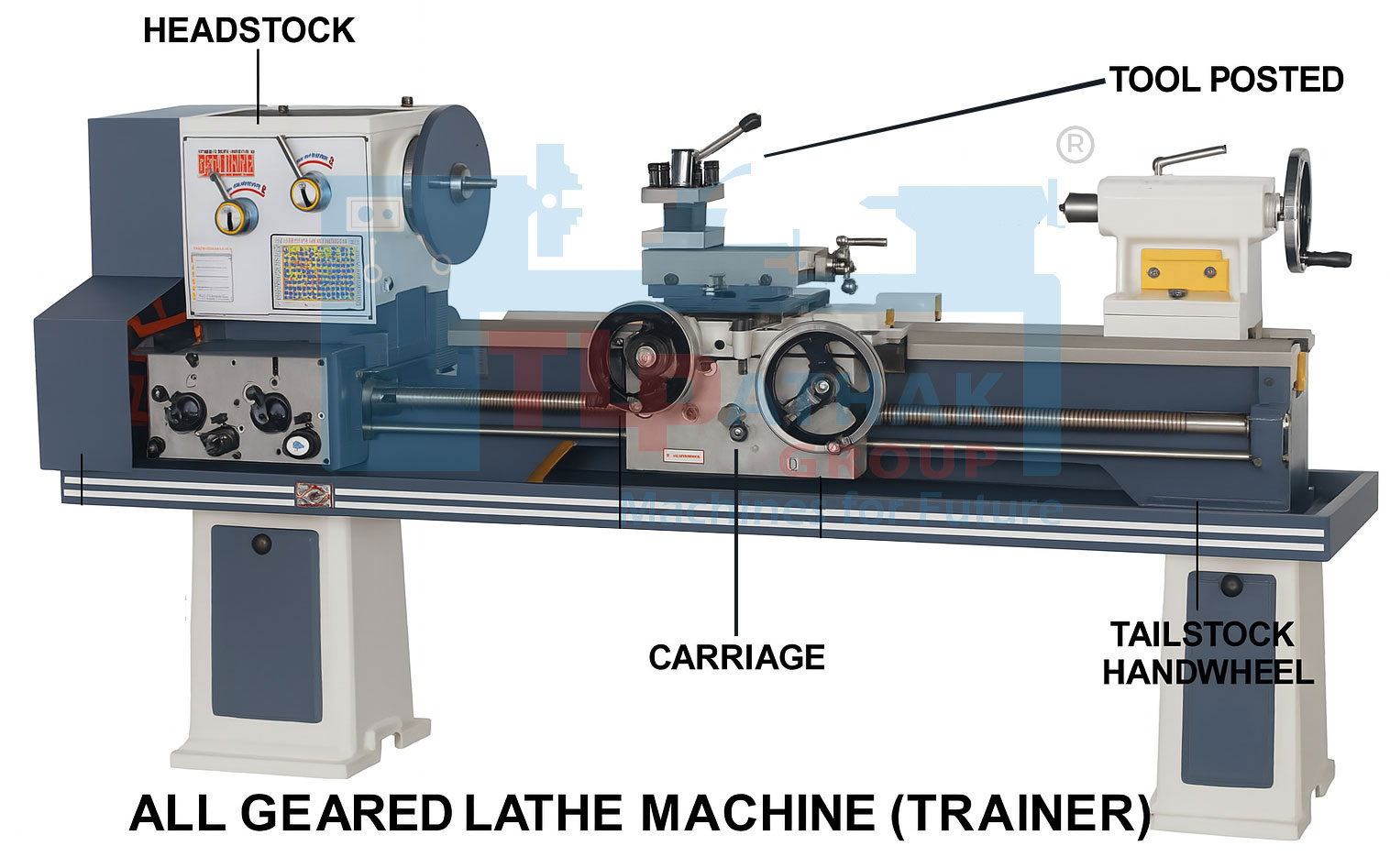

3D angled front view with all parts labeled for All Geared Lathe Machine Trainer
Lathe Machine Comparison Table
| Feature / Type | All Geared Lathe (Trainer) | Cone Pulley Lathe | Heavy Duty Lathe | Roll Turning / Oil Country Lathe | CNC Lathe |
| Application | Training / Light Operations | Light to Medium Jobs | Heavy Industrial Jobs | Long Rolls, Oilfield Jobs | High-precision Mass Production |
| Drive Mechanism | Geared | Belt & Pulley | Geared | Geared | Servo / Stepper Motor |
| Speed Change | Gear Lever | Manual Pulley Change | Gear Lever | Gear Lever | Programmed via CNC Controller |
| Operator Skill Needed | Beginner to Intermediate | Beginner | Intermediate to Expert | Expert | CNC Programming Knowledge |
| Automation | Manual | Manual | Manual / Semi-Auto | Manual / Hydraulic Assist | Fully Automatic |
| Spindle Bore | 25 – 52 mm | 25 – 40 mm | 40 – 105 mm | 105 – 530 mm | 25 – 80 mm |
| Job Size Capacity | Small | Small to Medium | Medium to Large | Very Large (Rolls/Pipes) | Small to Medium |
| Precision Level | Medium | Low to Medium | Medium to High | Medium | Very High |
| Usage in Industry | Training Institutes | Repair Shops, Workshops | Factories, Power Plants | Steel Plants, Oil & Gas Industry | Automotive, Aerospace |
| Product Link | Machine Detail | Machine Detail | Machine Detail | Machine Detail | Machine Detail |
| To teach students the working and operation of geared lathe machines |
| For hands-on practice in turning, facing, threading, drilling, and parting operations |
| Demonstrating gear mechanisms and speed/feed adjustments |
| Understanding machine tool safety and standard procedures |
| Developing skills in precision machining and manual metalworking |
| Training on setting workpieces and tools for accurate machining |
| Preparing students for industrial job roles involving lathe operations |
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Educational and training institutes
Polytechnic laboratories
