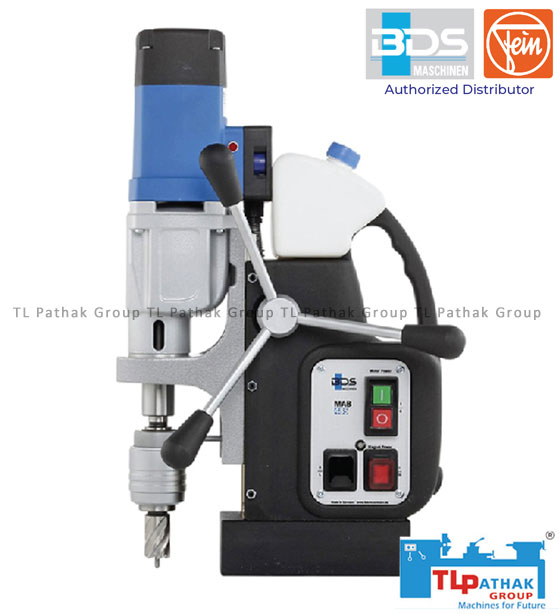

MAB 485 Magnetic Drilling Cum Tapping Machine
Drill MachinesA Magnetic Drilling Machine is a portable, precision drilling machine designed to drill holes in ferrous metals with the help of an electromagnet or permanent magnet base. The magnetic base allows the machine to firmly attach to the workpiece, ensuring stability, accuracy, and safety during the drilling process.
The Core Drilling 40 MM model is specifically engineered for drilling up to 40 mm diameter holes using annular cutters (also called core cutters). It is widely used in industries where heavy-duty and precise hole making is required, especially in structural steel, fabrication, construction, and maintenance operations.
The Core Drilling 40 MM model is specifically engineered for drilling up to 40 mm diameter holes using annular cutters (also called core cutters). It is widely used in industries where heavy-duty and precise hole making is required, especially in structural steel, fabrication, construction, and maintenance operations.
From ₹
103,000
To
123,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| EAN | TLP-485 |
|---|---|
| Cutting Depth | 55 mm |
| Twist Drilling | 18 mm |
| Reaming | 18 mm |
| Motor Output | 1150 watts |
| Stroke | 160 mm |
| Magnet Size | 84 x 168 x 41.5 mm |
| Magnet Power | 10400 N |
| Weight | 13 Kg. |
| Morse Taper | MT2 |
| Speed Gears | 2 |
| Speed 1 | 50 – 250 min-1 |
| Speed 2 | 100 – 450 min-1 |
| Speed 3 | x |
| Speed 4 | x |
| Advantages | Carbon brush indicator, Internal cabling, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Reversible motor, Steady watt control, Variable speed |
| Includes | 1 Attached cooling tank, 1 drill drift & 1 taper drift, 1 Gear rim drill chuck, 1 KEYLESS drill chuck, 1 Safety chain, 1 Transport case, 2 ejector pin, 3 Tapping adapters |
| Core Drilling | 40 mm |
| Countersink | 40 mm |
We have a team of engineers and professionals to manufacture advanced MAB 485 magnetic drilling cum tapping machines that can be used in workshops or during production and assembly. You can also use our models for reference and can visit our showroom to know more about the product.
3D angled front view with all parts labeled for MAB 485 Magnetic Drilling Cum Tapping Machine 40MM Core Drilling & M16 Tapping
Key Features| Magnetic Base: Provides strong adhesion to steel surfaces, keeping the machine stable during operation. |
| Core Drilling Capacity: Up to 40 mm in diameter and typically up to 50 mm in depth. |
| Compact & Portable: Lightweight design allows use in workshops as well as on-site jobs. |
| Powerful Motor: Delivers consistent torque for efficient drilling through hard materials. |
| Safety Mechanisms Includes overload protection, magnetic adhesion indicator, and safety switches. |
| Versatility Suitable for drilling, countersinking, and reaming operations with proper accessories. |
Steel fabrication and erection
Shipbuilding and offshore industries
Heavy machinery maintenance
Bridge construction
Railway track construction
Boiler manufacturing
Pipeline manufacturing
Tank manufacturing
