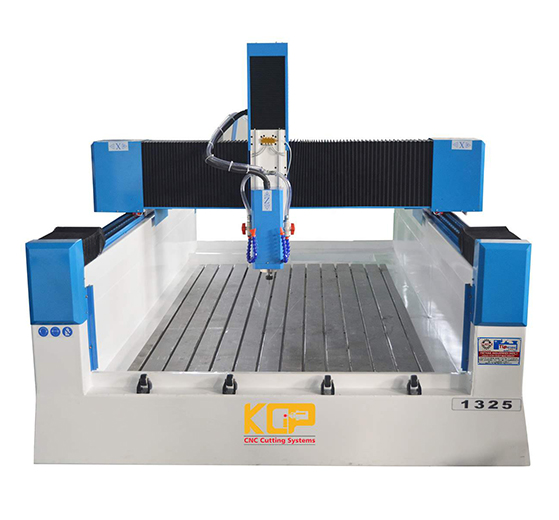

CNC Stone Router
CNC MachinesAs one of the best and most popular manufacturers and producers of CNC stone routers in the market for the past few years, we use sophisticated and modern technology to build and test all the routers. We make our routers in such a way that they are beneficial in all the industries to cut out the extra edges, dadoes and rabbets or to create unique shapes through stones.
From ₹
750,000
To
1,056,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| DESCRIPTION | NR - 115 5 |
| X-Y-Z Axis Movement | 1300mm x 2500mm x 200mm |
| Repositioning Accuracy | 0.01m |
| X-Y Movement | Taiwan Rack & Pinion Transmission |
| Z Movement | German Ball Screw |
| Table Size | 1440mm x 3040mm |
| Max Idiling Speed | 35m/min |
| Max Cutting Speed | 25m/min |
| Working Volatge | 3/380 V / 50 Hz |
| Spindle | Water Cooled Spindle 4.5 kw(6HP) |
| Spindle Rotating Speed | 0-24000 RPM |
| Drive Motor | Servo |
| Command | G code (*.mmg, *.tap, *.plt ) |
| Computer interface | USB |
| Controls | NK 105 / NC Studio |
| Collet Size | 6mm, 8mm, 12mm |
| Work Piece Holding | Manual T Slot Clamping |
| Water tank | Yes |
| Auto Water Cooling System | Yes |
CNC Stone Rounter Application Image 1
CNC Stone Rounter Application Image 2
CNC Stone Rounter Application Image 3
CNC Stone Rounter Application Image 4
