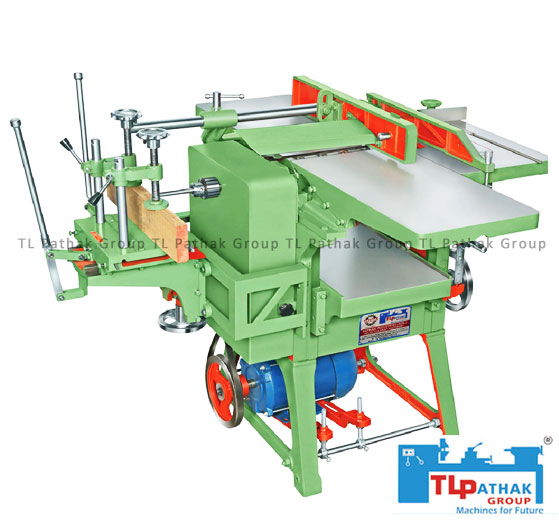

Thickness With Surface Planner Combined Circular Saw
Wood Working MachinesPathak offers high-quality thickness with surface planer combined circular saw machines mainly used to trim wooden boards consistently throughout their length. The machine is made with the best quality raw material and works efficiently. Provides durability and long working life to the consumers. The latest technology of the machine helps consumers in the smooth functioning of their operations
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | PMW -1 |
| Table Size | 13'' x 56'' |
| Gauge Width | 13'' |
| Gauge Height | 9'' |
| Side Cutter Capacity | 12'' |
| Side Cutter Capacity | 3'' |
| Tennoning Capacity | 4'' |
| Patami Table Size | 25'' x 10'' |
| Drilling Capacity | 7'' Length |
| Motor reqd | 3 HP 1440 RPM |
| No of Blades in main roller | 4 |
| Diameter of feed Rollers | 40mm |
| Thickness feed Rate | 8 meter / minute |
| Height of Machine | 38'' |
| Width of Machine | 53'' |
| Weight of Machine | 550 kg excluding Motor |
Grooving
Sawing
Thicknessing
Drilling
Rebating
Surfacing
