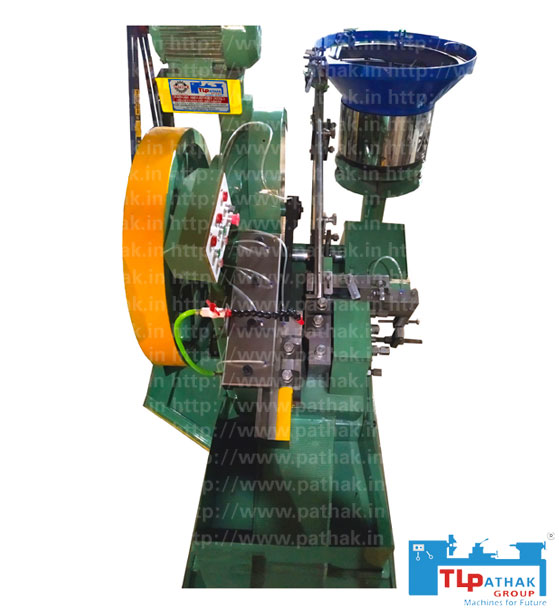

Flat Die Cold Thread Rolling Machine
Wire Industry MachineryThis machine has both semi-automatic and automatic features pre-installed in it. It gives high output results and is completely user friendly. It gives very sharp and Finished products. The best part of a flat die cold threading machine is that it has a long working life with very little maintenance.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PBRT-1 | PBRT-2 | PBRT-3 | PBRT-4 | PBRT-5 | PBRT-6 |
| Min. Max. Dia Can Be Rolled | 1/16" X 1/4" | 1/8" X 1/2" | 1/8" X 1/2" | 1/4" X 5/8" | 1/4" X 3/4" | 1/4" X 7/8" |
| Max. Length of Thread | 2" | 2.1/2" | 3" | 3" | 4" | 4" |
| Dimension of Fixed Dia | 3"X2"X1" | 5"X2.1/2X1" | 5"X3"X1" | 6"X3"X1" | 6"X4"X1" | 7"X4"X1" |
| Dimension of Moving Dia | 4"X2"X1" | 6"X2.1/2"X1" | 6"X3"X1" | 7"X3"X1" | 7"X4"X1" | 8"X4"X1" |
| Production in Pieces Per Minute | 80 | 60 | 60 | 50 | 30 | 30 |
| Power Required in H.P. | 2 | 3 | 5 | 7.5 | 10 | 15 |
