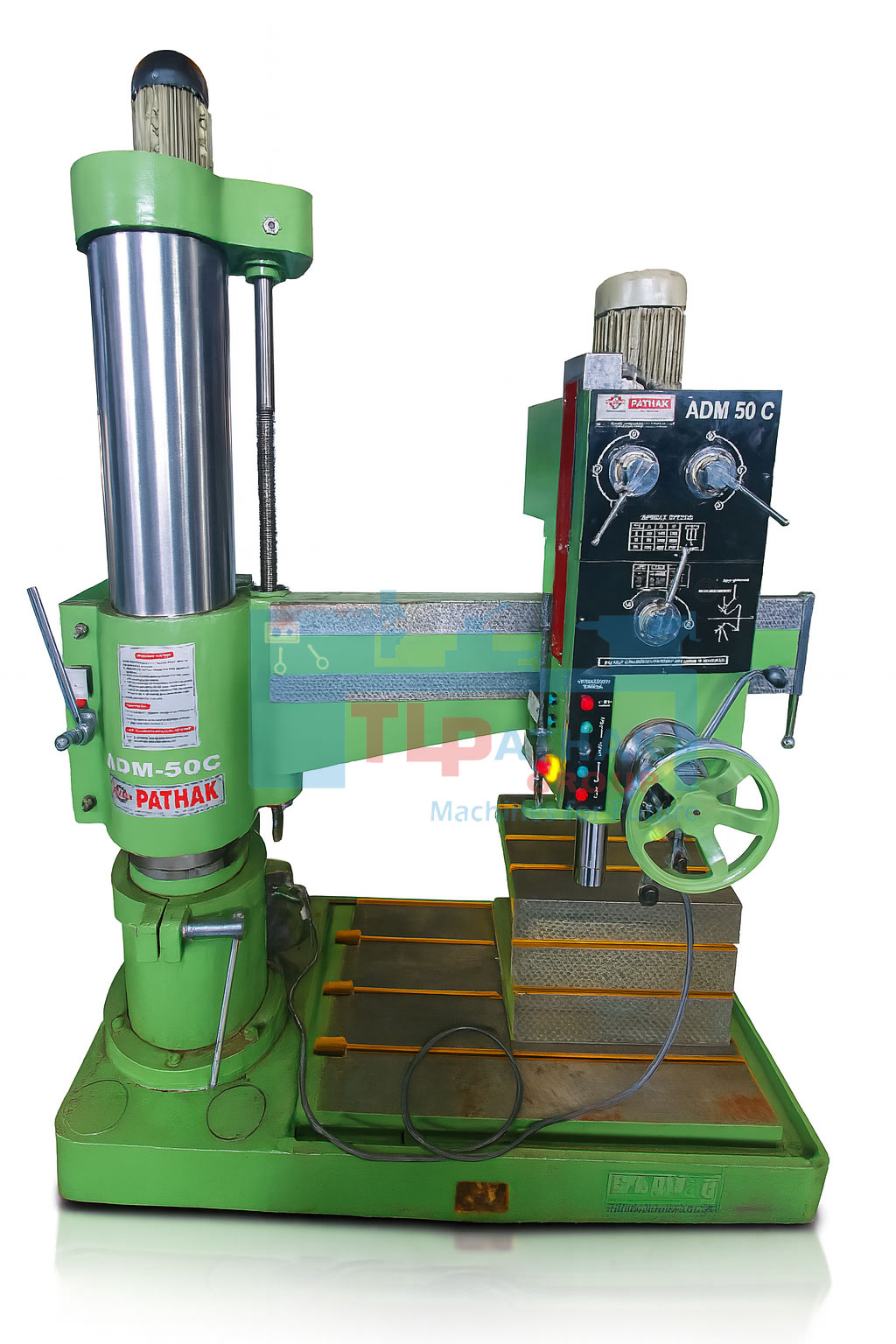

All Geared Radial Drill Machine RDB-Series
Drill MachinesAn All Geared Radial Drill Machine is a powerful and versatile machine tool designed for heavy-duty drilling applications. It features a radial arm that can swivel, rotate, and move vertically, making it ideal for drilling large and heavy workpieces with precision and flexibility.
From ₹
525,000
To
725,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| MODEL | RD40B | RD50B | RD 50C | RD65B | RD75 |
| Drill Capacity in solid mild steel | 40mm | 50mm | 50mm | 65mm | 75mm |
| Drill Capacity in Cast Iron | 50mm | 60mm | 60mm | 75mm | 80mm |
| Dia of column | 255 | 310 | 310 | 355 | 405 |
| Drilling Radium Minimum | 375 | 450 | 425 | 650 | 675 |
| Drilling Radium Maximum | 950 | 1100 | 1325 | 1600 | 1950 |
| Machine Height For Floor | 2420 | 2760 | 2760 | 3170 | 3320 |
| Distance from spindle nose to top of the base plate minimum spindle in downward position | 100 | 100 | 100 | 100 | 100 |
| Distance from spindle nose to top of the base plate minimum spindle in downward position | 1150 | 1300 | 1300 | 1600 | 1750 |
| Drilling Depth | 180 | 225 | 225 | 325 | 325 |
| Working surface of base plate | 885 x 545 | 975 655 | 1150x655 | 1460x845 | 1735x940 |
| Dimension of Base | 1470x705x180 | 1645x835x200 | 1755x835x200 | 2370x1015x210 | 2640x1110x210 |
| Effective Area of Box Table | 330x330x330 | 550x400x400 | 600x450x450 | 600x450x450 | 600x450x450 |
| No. of Spindle Speed &Range (RPM.x steps) | 45-660 x6 steps | 40 - 790 x 9 steps |
25-930-12 steps | 20-740-12 steps | |
| No.of spindle feed & range (per Rev.xSteps) | 0.095-0.215-3 steps | 0.080 - 0.180 3 steps |
0.10 - 1.25 6 steps |
||
| Taper spindle nose socket | MT 4 | MT 5 | MT 5 | MT 5 | MT 6 |
| Main Motor | 2 HP | 3 HP | 3 HP | 5 HP | 7.5 HP |
| Elevating Motor | 1 HP | 2 HP | 2 HP | 3 HP | 5 HP |
| Total weight of machine (approx.) kgs. | 2000 kg. | 3000 kg. | 3200 kg. | 4800 kg. | 6500 kg. |
Our machines are manufactured and designed with international standards by our skilled experts. We ensure perfect drilling for large and small jobs because the geared radial drill machine RDB-series we offer is manufactured with high-grade components and parts. However, you can also avail this machine at affordable prices.

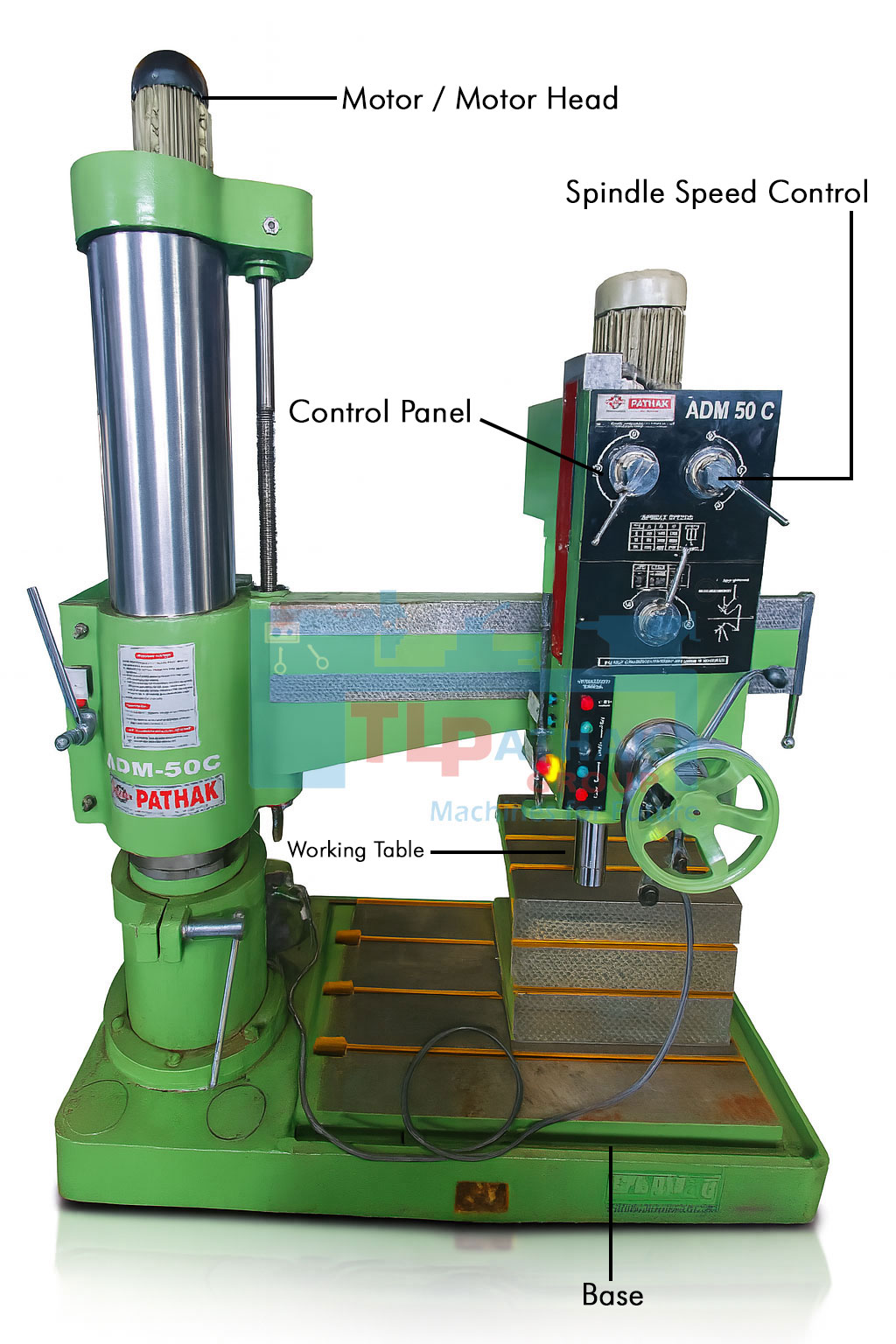

3D angled front view with all parts labeled for All Geared Radial Drill Machine RDB-Series
Key Features:
| All Geared Drive: Ensures smooth speed changes via gear transmission, providing consistent torque. |
| Radial Arm Movement: Adjustable arm enables drilling at different heights and angles. |
| 360° Rotating Arm: Facilitates multi-position drilling without moving the workpiece. |
| Box-Type Column: Provides stability during heavy operations. |
| Auto Feed Mechanism: Enables consistent feed rates and reduces operator fatigue. |
| High-Precision Spindle: Supports large-diameter drilling with high accuracy. |
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
