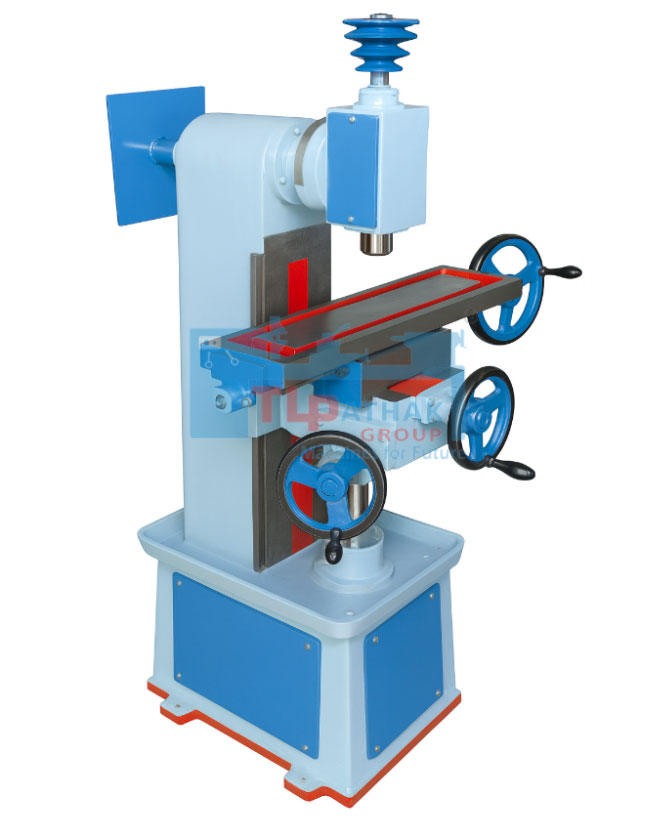

Vertical Gattu Milling Machine
Milling MachinesA Vertical Gattu Milling Machine is a type of vertical milling machine commonly used in tool rooms and workshops for precise shaping, slotting, drilling, and cutting of metal components. It is known for its rigid construction, compact design, and versatile applications. The machine operates with a vertically oriented spindle, which allows the cutting tool to move up and down while the workpiece is fixed on the work table.
From ₹
92,000
To
98,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | PM00V |
| Surface of Table | 24" x 6" |
| No. of Tee-Slots | 2 |
| Size of Tee-Slots | 3/8 |
| Longitudinal Traverse | 16" " |
| Cross Feed | 5" |
| Vertical Traverse | 15" |
| Standard Arbor | 1" |
| No. of Spindle Speed | 3 |
| H.P. Required | 1 H.P. |
| Height | 44" |
| Weight Approximate | 250 kg. |
| Floor Space | 19 x 13 |
We are considered one of the best brands in India that are delightfully connected in manufacturing and supplying superb quality of Gattu Milling machines for our prestigious customers. We offer our Vertical Gattu Milling machines using highly sophisticated technology and reliably tested intermediate materials only. Our company is well-known for providing exceptional properties in terms of the performance and service life of our machines.

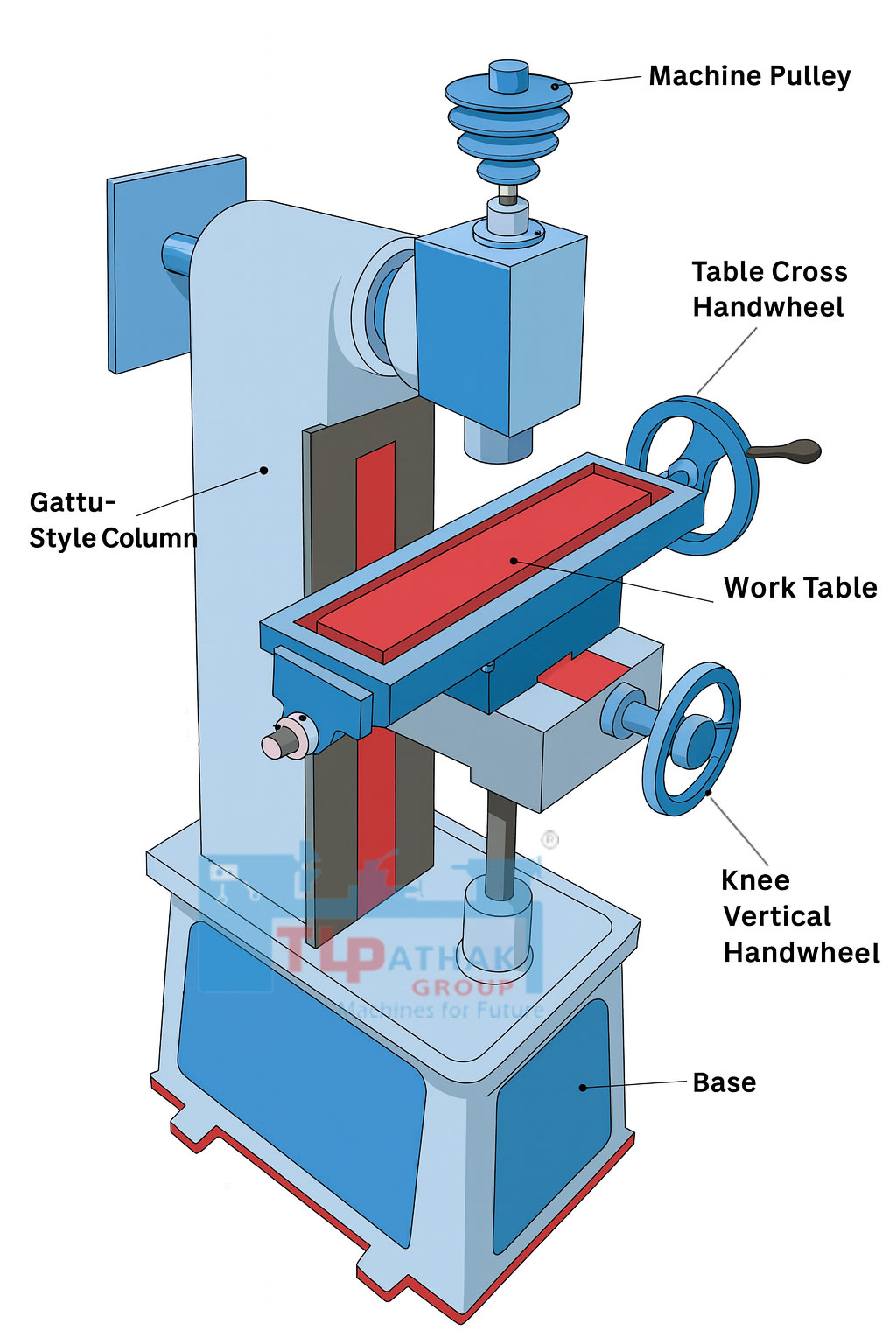

3D angled front view with all parts labeled for Vertical Gattu Milling Machine
Key Features:
| Vertical Spindle Design Ensures accurate cutting and smooth surface finish. |
| Sturdy Gattu Column Provides high rigidity, reducing vibration during heavy operations. |
| Adjustable Work Table Can move longitudinally, laterally, and vertically to suit multiple machining operations. |
| Precision Control Micrometer adjustments allow fine accuracy for tool and die-making. |
| Heavy-Duty Build Suitable for rough as well as precision milling tasks. |
Tool Rooms
Educational Institutes
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Die & Mould Manufacturers
Slotting and keyway cutting
