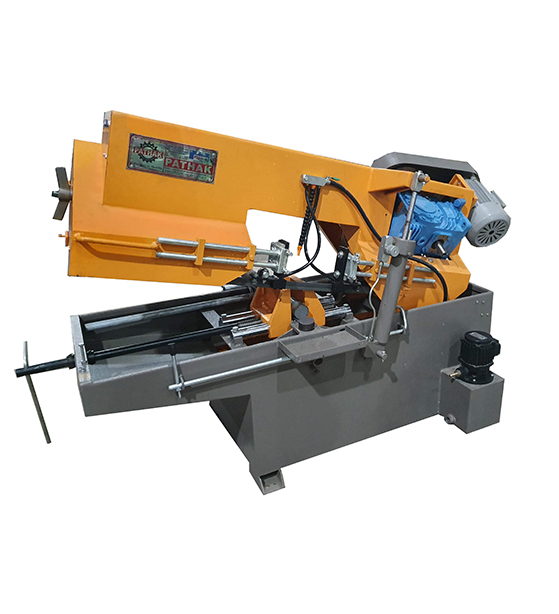

Horizontal Metal Cutting Bandsaw Machine Model AC
Cutting MachinesWe manufacture and export the best quality of horizontal metal cutting band saw machines. Our main focus is to have less wastage and give the best product to our customers. It is one of the cheapest machines you can buy under the cutting band saw machines. The technicians always work under the supervision of our experts so that all of our customers get 100% satisfied with our machines.
From ₹
168,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | ACOHS | AC7HS | AC8HS | AC12HS | AC14HS | AC16HS | AC18HS |
| Round (mm) | 100 | 175 | 210 | 300 | 350 | 400 | 450 |
| Sqare (mm) | 75 X 75 | 150 X 150 | 185 X 185 | 250 X 250 | 300 X 300 | 350 X 350 | 400 X 400 |
| Drive Motor | 0.5 HP(1440 RPM) | 1 HP(1440 RPM) | 1.5 HP(1440 RPM) | 2 HP(1440 RPM) | 2 HP(1440 RPM) | 2.5 HP(1440 RPM) | 3 HP(1440 RPM) |
| Coolant Pump | 0.15 HP 440 Vlt | 0.15 HP 440 Vlt | 0.15 HP 440 Vlt | 0.15 HP 440 Vlt | 0.15 HP 440 Vlt | 0.15 HP 440 Vlt | 0.15 HP 440 Vlt |
| Blade Speed | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 |
| Blade Size | 1930 x 20 x 0.9 | 3000 x 27 x 0.9 | 3000 x 27 x 0.9 | 3000 x 27 x 0.9 | 4100 x 34 x 1.1 | 4420 x 41 x 1.1 | 4570 x 41 x 1.1 |
| Net Weight (Apx) | 275 | 320 | 350 | 575 | 675 | 725 | 800 |
| Diamension (HXLXW) | 0.9 x 1.1 x 0.6 | 1.1 x 1.8 x 1.4 | 1.1 x 1.8 x 1.4 | 1.1 x 2.4 x.0.8 | 1.2 x 2.6 x 0.8 | 1.2 x 2.7 x 0.8 | 1.5 x 2.7 x 1.0 |
