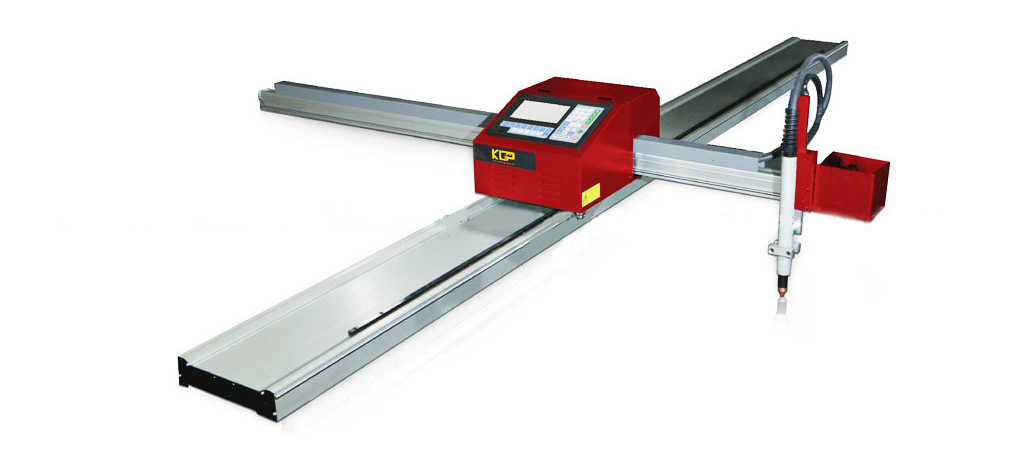

Arc Mate Portable Plasma Cutting Machine
CNC MachinesOur Arkmate portable plasma cutting machines are very compact and also portable and are very affordable when compared to other manufacturers and producers in the market. We design and formulate our machine to meet the requirements of every industry and can cut mild steel, aluminum or stainless steel up to 20 mm in size. The machines are easy to use and are portable.
From ₹
450,000
To
755,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
SPECIFICATION |
DESCRIPTION |
|
| MCHINE Type | Portable (Plasma / Oxyfuel) | |
| Model No. | Arc Mate Portable PC1530FL | Arc Mate Portable PC1530PL |
| Driving configuration | Single drive 57 series steper motor | |
| Cutting head | Oxy-fuel with manual z-axis up-down movement |
Plasma with Auto z-axis up-down movement |
| Max.Travel Speed | 3000mm/min | |
| Input Power | Single phase 220V, 50 Hz | Single phase 220V, 50Hz + Plasma (depends on power source selection) |
| Gases required | Oxygen and LPG | Compressed air |
| Z-axis (torch) lifting distance | <100mm | |
| Working accuracy | +/- 0.2mm | |
| Cutting capacity | 5-60mm (Mild steel) | 1-25mm (depending on Plasma rating |
| Controller | 7'' wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. | |
| Nesting software | Fast Cam basic | |
| Cutting Table Base | To be constructed by end used, drawing will be provided against order | |
| Req.Installation Area | W 3.7mm * L3.6m * H1.0m | |
