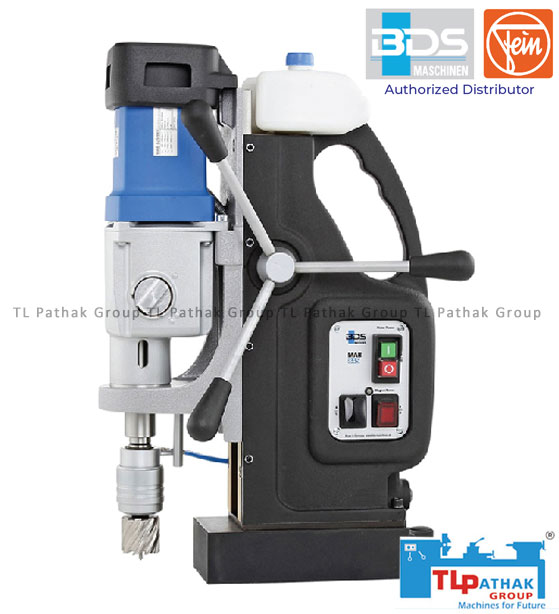

MAB 825 Heavy Duty Magnetic Drilling Tapping Machine
Drill MachinesA Magnetic Drilling Cum Tapping Machine (100 mm Core and M130 Tapping) is a heavy-duty, versatile machine designed for industrial applications where both large diameter drilling and tapping operations are required. Equipped with a powerful motor and a strong electromagnetic base, this machine ensures precise and stable machining on ferrous workpieces, even in challenging positions like vertical or overhead drilling.
From ₹
143,900
To
153,900
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| EAN | TPL-825 |
|---|---|
| Cutting Depth | 110 mm |
| Twist Drilling | 31.75 mm |
| Tapping | M30 |
| Reaming | 31.75 mm |
| Motor Output | 1800 Watts |
| Stroke | 255 mm |
| Magnet Size | 110 x 220 x 54 mm |
| Magnet Power | 19500 N |
| Weight | 25 Kg. |
| Morse Taper | MT3 |
| Speed Gears | 4 |
| Speed 1 | 40 – 110 min-1 |
| Speed 2 | 65 – 175 min-1 |
| Speed 3 | 140 – 360 min-1 |
| Speed 4 | 210 – 550 min-1 |
| Advantages | Carbon brush indicator, Internal cabling, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Reversible motor, Steady watt control, Variable speed & torque |
| Includes | 1 Attached cooling tank, 1 Carry case on wheels, 1 drill drift & 1 taper drift, 1 Industrial arbor MT3, 1 KEYLESS drill chuck, 1 Operating manual, 1 Safety chain, 4 ejector pins |
| Core Drilling | 100 mm |
| Countersink | 50 mm |
Our MAB 825 drilling machine is suitable for twist drilling, reaming, countersink, and tapping with a top-class output and a high degree of flexibility. It also has an adjustable automatic speed that can be switched on in any solution. This machine is very much affordable as its price start from Rs.143900 and ends at Rs.153900 only.
3D angled front view with all parts labeled for Magnetic Drilling Cum Tapping Machine
Key Features:
| Core Drilling Capacity: Up to 100 mm in diameter, making it suitable for large holes in structural steel, fabrication, and heavy engineering. |
| Tapping Capacity: Up to M30, allowing for accurate internal threading directly after drilling. |
| Electromagnetic Base: Provides strong adhesion to the workpiece for vibration-free and safe operation. |
| Multi-Function Operation: Performs drilling, tapping, countersinking, and reaming in a single setup. |
| High Torque & Variable Speed: Designed to handle both heavy drilling and thread cutting efficiently. |
| Compact & Portable Design: Despite its heavy-duty capacity, the machine is portable for on-site applications. |
Steel fabrication and erection
Shipbuilding and offshore industries
Heavy machinery maintenance
Bridge construction
Railway track construction
Boiler manufacturing
Pipeline manufacturing
Tank manufacturing
