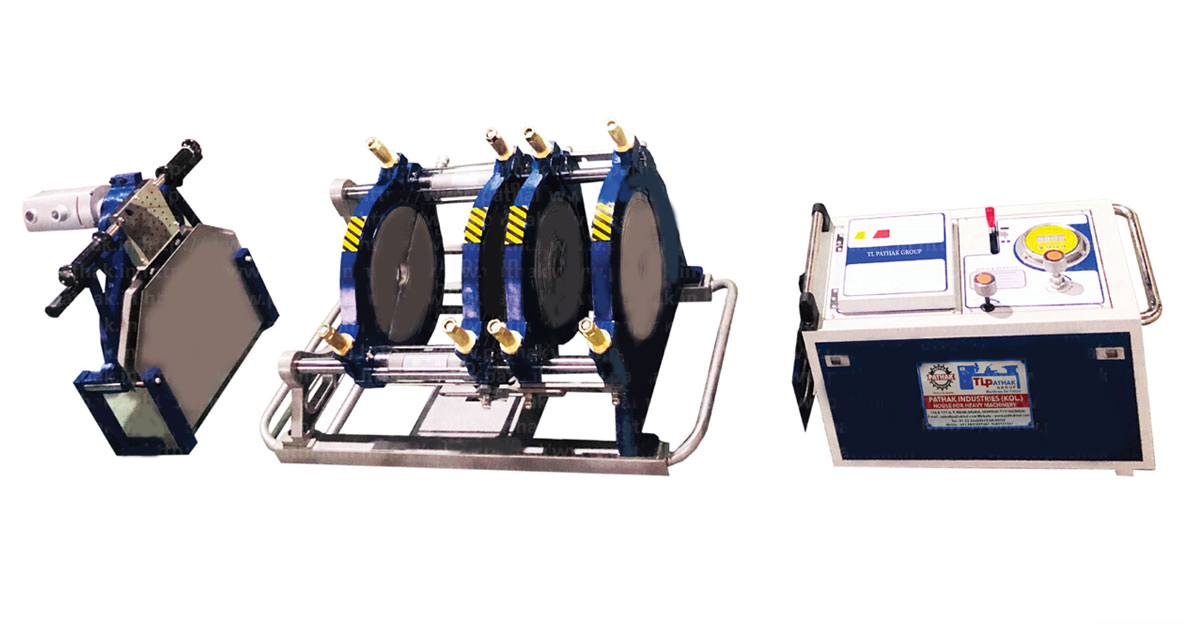

Hydraulic HDPE Pipe Welding Machine
HDPE - Pipe Jointing MachineWe are considered the only best manufacturer of hydraulic HDPE pipe welding machines as you will get the most updated machines. Our team uses only top-quality raw material for our welding machines so that their life remains good and it works properly. We did not give the product to our customers until and unless our exerts check them properly and approve them.
From ₹
188,000
To
450,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PHDP200 | PHDP315 | PHDP355 | PHDP450 | PHDP500 | PHDP630 | PHDP800 | PHDP1000 | PHDP1200 |
| Welding Range (mm) | 50,63,75,90,110,125,140,160,200 | 90,110,125,140,160,180,200,225,250,280,315 | 160,180,200,225,280,315,355 | 280,315,355,400,450 | 280,315,355,400,450,500 | 280,315,355,400,450,500,560,630 | 500,560,630,710,800 | 710,800,900,1000 | 800,900,1000,1200 |
| Heating Plate Max. Plate | 2700C | ||||||||
| Temp. Deviation in Surface | <+-100C | ||||||||
| Presure Adjustable Ranges | 0-6.3MPa | 0-8.0MPa | O-16MPa | ||||||
| Working Voltage | 220 V 50HZ | 220 V 50HZ | 220 V 50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ |
| Heating Plate Power | 1.80KW | 3.SKW | 3.60KW | 5.38KW | 6.50KW | 9.35KW | 12.5KW | 17.5KW | 21.5KW |
| Planning Tool Power | 1.10KW | 1.10KW | 1.10KW | 1.50KW | 1.50KW | 1.50KW | 2.2KW | 3.0KW | 4.0KW |
| Total Power | 3.65KW | 5.35KW | 5.45KW | 8.38KW | 9.50KW | 12.3SKW | 18.2KW | 24.0KW | 29.5KW |
| Weight | 135 kg | 230 kg | 260 kg | 450 kg | 560 kg | 650 kg | 1400kg | 2600kg | 2800 kg |
| Volume | 0.53M3 | 1.0M3 | 1.1M3 | 2.2M3 | 2.5M3 | 3.2M3 |
