Pillar Drill Machine ps-40
Drill MachinesA pillar drill machine, also known as a column drill or bench drill, is a stationary drilling machine designed for precision drilling operations. It is mounted vertically on a base and features a column that supports the motor and drilling head. This setup allows for consistent, controlled, and accurate drilling operations.
- High drilling accuracy and repeatability
- Reduced operator fatigue
- Handles large and heavy workpieces
- Long service life and low maintenance
From ₹
70,000
To
90,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Motor Pulley
Electric Motor & Starter
Coolant Pump With Tank
Motor Pulley
Machine Lamp
| Model | PS-40 |
| Titling working table | Fixed |
| Drilling capacity | 40 mm |
| Pilllar diameter | 121 mm |
| Spindle nose to table distance | 595 mm |
| Distance from spindle nose to base distance | 1050 mm |
| Distance from spindle centre to pillar surface (in mm) | 320 (max) |
| Table level | 480 mm |
| Taper in spindle | MT-4 |
| number of speed | 8 speed |
| Range of speed (RPM) | 70 to 2000 |
| Table size (in mm) | 410 x 410 |
| Base size (m/c area in mm) | 440 x 715 |
| Overall base size (in mm) | 445 x 720 |
| Spindle travel | 250 mm |
| Pillar length | 1450 mm |
| Overall height with pulley gurad | 1860 mm |
| V-belt section | B-59 |
| Weight (Approx) | 325 kgs |
| Motor 1440 RPM 3 Phase 440 Volts | 2 H.P |
| Shipping wooden case | 860x460 |
| Inner size LxWxH | 1580 mm |
We provide a premium quality product to our customers with fine-finished moving parts. All of our 40 mm pillar drill machines are manufactured under the guidance of our team of experts by using quality assured material and advanced techniques to make them up to the standard in this highly challenging field. All of its gears are made from SGI casting to make it perfectly balanced.

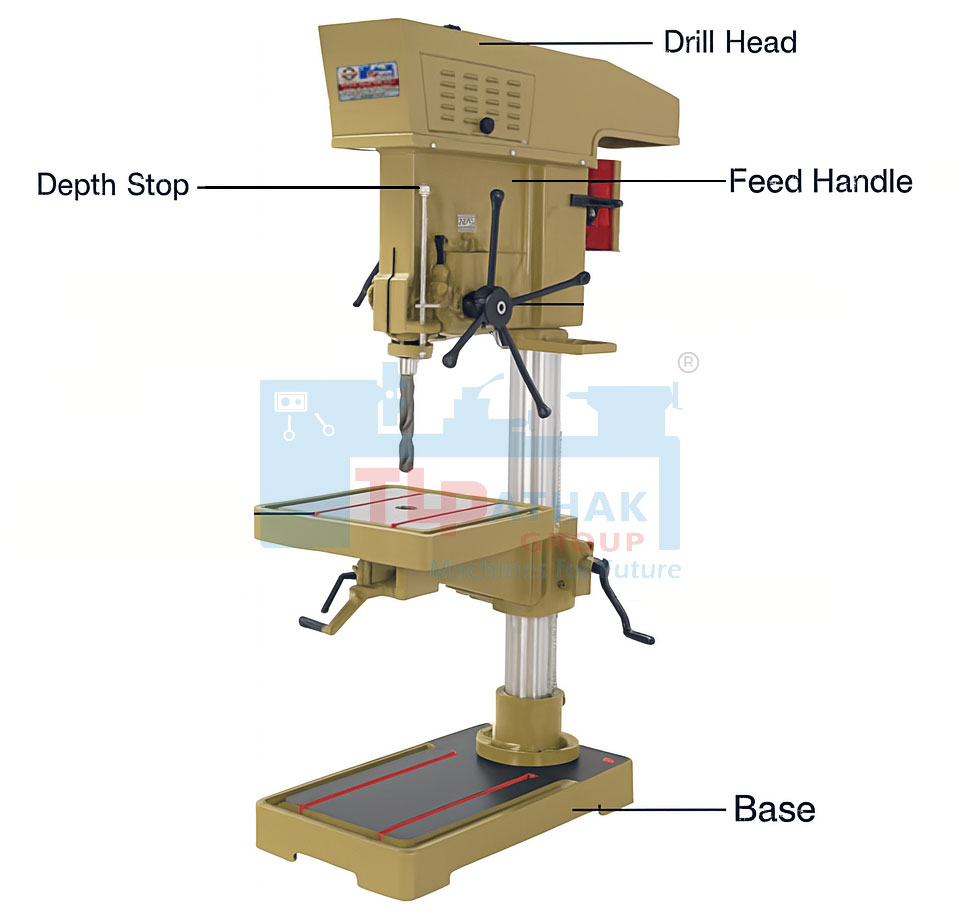

| Part | Description |
| Base | Heavy structure that supports the machine and absorbs vibrations |
| Column (Pillar) | Vertical post that supports the drill head and table |
| Drill Head | Contains the motor and spindle; drives the drill bit |
| Spindle | Rotates and holds the drill chuck and bit |
| Chuck | Holds the drill bit securely in place |
| Motor | Powers the spindle and drill bit |
| Work Table | Adjustable table to hold and position the workpiece |
| Feed Handle | Used to lower and raise the drill bit into the material |
| Depth Stop | Allows for preset drilling depths |
Tool Rooms
Educational Institutes
Workshops
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
