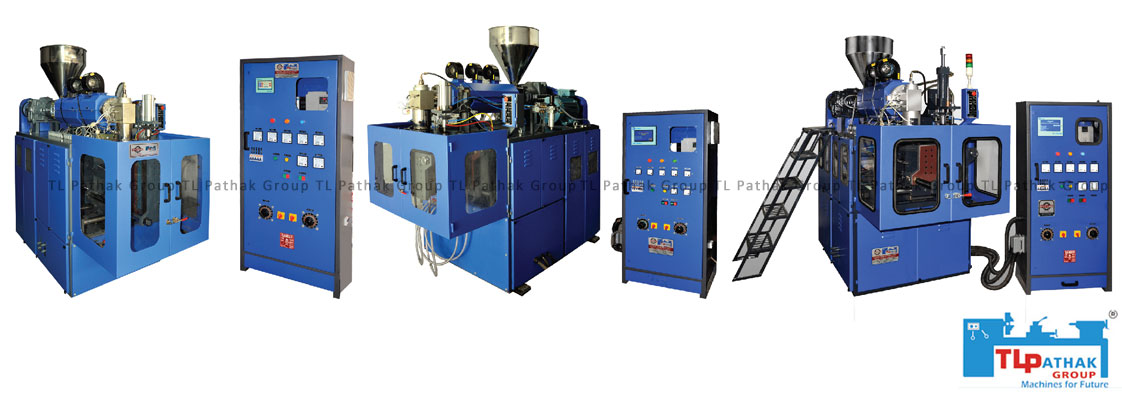

Blow Moudling Machine
Plastic Making MachineOur Blow moulding machine performs a moulding technique excellently in which a resin known as a parison, which is a pipe made of molten thermoplastic resin, is blown out and then blown out again after cooling. It is used to make bottle containers for eye drops, pharmaceuticals, cosmetics, meals, detergents, and other items. Its characteristics, such as cost performance, high rigidity, and lightweight .
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
MODELS |
100/P/1 |
250/H/1 |
600/H/1 |
1500/H/1 |
2000/H/1 |
3000/H/1 |
5000/H/1 |
Screw Diameter MM |
25 | 30 | 40 | 45 | 55 | 60 | 65 |
| L.D. Ratio L/D | 22:1 | 22:1 | 22:1 | 22:1 | 22:1 | 22:1 | 22:1 |
| Blowing Capacity ML | 100 | 250 | 600 | 1500 | 2000 | 3000 | 5000 |
| Screw Speed R.P.M | 0-75 | 0-75 | 0-75 | 0-75 | 0-75 | 0-75 | 0-75 |
| Extruder Output kg/Hr. | 4/5 | 7/8 | 14/16 | 18/20 | 30/32 | 38/40 | 48/50 |
| Heating Zones Nos. | 3 | 5 | 5 | 5 | 5 | 5 | 6 |
| Max.Die Dia HD | 15 | 25 | 45 | 60 | 90 | 120 | 140 |
| Maximum Die Dia PVC | - | 20 | 35 | 40 | 60 | 80 | - |
| Mould Opening Stroke MM | 100 | 125 | 150 | 185 | 200 | 225 | 300 |
| Min Mould Thickness MM | 102 | 130 | 175 | 175 | 205 | 235 | 255 |
| Mould Length MM | 150 | 200 | 280 | 340 | 350 | 400 | 450 |
| Mould Width MM | 120 | 140 | 165 | 220 | 250 | 290 | 320 |
| Dry Cycle / Min Nos. | 20 | 20 | 15 | 15 | 12 | 12 | 10 |
| Max.Container Dia. MM | 40 | 60 | 75 | 125 | 150 | 170 | 200 |
| Extruder Drive HP | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 |
| Hydraulic Motor HP | - | 2 | 5 | 5 | 5 | 7.5 | 7.5 |
| Blower HP | - | - | 1.5 | 1.5 | 1.5 | 1.5 | 2.5 |
| Heating Load KW/HP | 3.75 / 5 | 4.5 / 6 | 7.5 / 10 | 9 / 12 | 10.5 /14 | 12 / 16 | 15 / 20 |
| Total Power of M/C KW/HP | 5.25 / 7 | 7.5 / 10 | 16.5 / 22 | 18.75 / 25 | 23.25 / 31 | 30 / 40 | 37.5 / 50 |
| Main Cable Size Core / MM2 | 4 / 2.5 | 4 / 2.5 | 4/6 | 4/6 | 4 / 10 | 4 / 16 | 4 / 25 |
| Bobbing | - | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. |
| Parison Programmer Thick-Thin | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. | INC. |
| Hot Wire Cutter | INC. | INC. | OPT. | OPT. | OPT. | OPT. | OPT. |
| Double / Triple Head | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. |
| Bottom Bowing System | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. |
| V-Strip / Zebra Line | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. |
| Hydraulic Blowing | OPT. | OPT. | OPT. | OPT. | INC. | INC. | INC. |
| Control Panel Dimension (LxWxH) FT | 1.7x2.3x5.3 | 1.7x2.3x5.3 | 1.7x2.3x5.3 | 1.7x2.3x5.3 | 1.7x2.3x5.3 | 1.7x2.3x5.3 | 1.7x2.3x5.3 |
| Oil Tank Capacity Ltr. | - | 70 | 110 | 125 | 150 | 180 | 200 |
| Water Concumption Ltr./Min. | 20-30 | 20-30 | 20-30 | 30-40 | 30-40 | 40-50 | 60-70 |
| M/C Dimension (LxWxH) FT. | 6 x 3 x 7 | 6 x 4 x 8 | 7 x 5 x 9 | 8 x 5 x 9 | 8 x 5 x 9 | 8 x 5 x 10 | 11 x 6 x 12 |
| Machine & Panel Weight Ton | 0.65 | 0.8 | 1.4 | 1.8 | 2 | 2.6 | 4.2 |
| Air Requirement CF.M | 8 | 8 | 9 | 10 | 12 | 15 | 15 |
