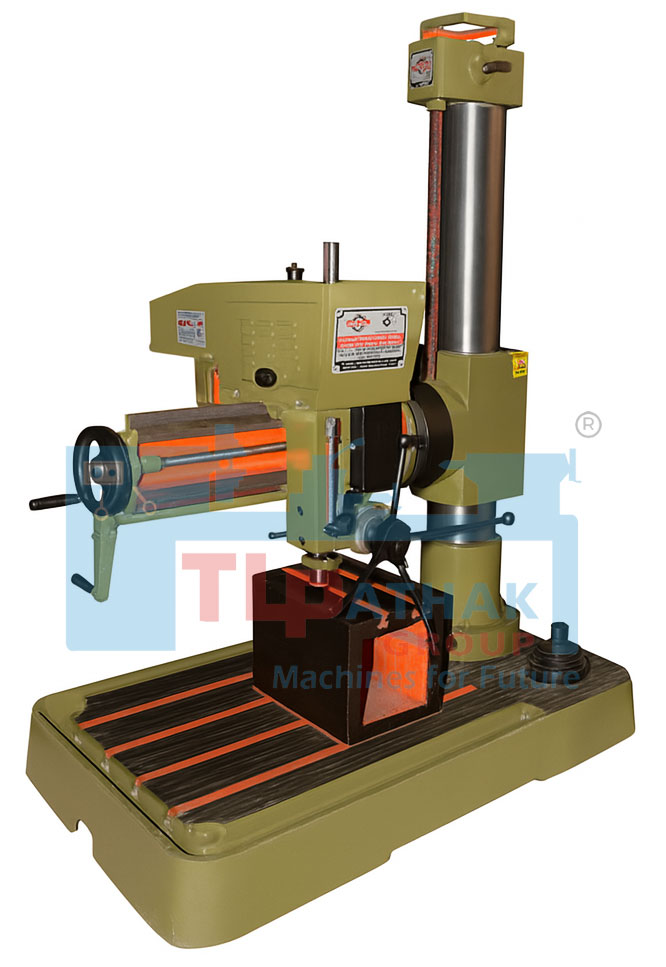

Radial Drill Machine PRD-38-G
Drill MachinesA Radial Drill Machine is a heavy-duty industrial drilling machine designed to handle large and heavy workpieces. It features a radially movable drilling head that can be adjusted vertically and horizontally along an arm, making it ideal for drilling over a wide area without moving the workpiece.
From ₹
250,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | PRD-38G |
| Drilling Capacity (in steel) | 1.1/2 |
| Max.Dist.From spindle center to column | 30 |
| Min.Dist. From spindle center to column | 11 |
| Vertical travel of arm | 36 |
| Spindle travel | 7 |
| Range of spindle speeds | 88-2600 |
| Power Required (R.P.M) for simple drive | 2 H.P.(1440) |
| Power Required (R.P.M) for Elevating Arm | 1 H.P.(1440) |
| Spindle Bore | M.T.NO-4 |
| Pillar Diameter | 6.5 |
| Spindle Diameter | 2.5 |
| Work Table | 14*12*12 |
| Working Surface of base | 32*24 |
| Floor Space Required | 51*30 |
| Approximate Weight | 850kgs. |
We provide our clients with a heavy-duty radial drilling machine that is manufactured with superior grade resources by leading firms in the market. These machines are designed for various types of drilling requirements of industrial clients. We provide products to our customers that are highly functional, easy to use, safe, and are offered at the nominal market price.

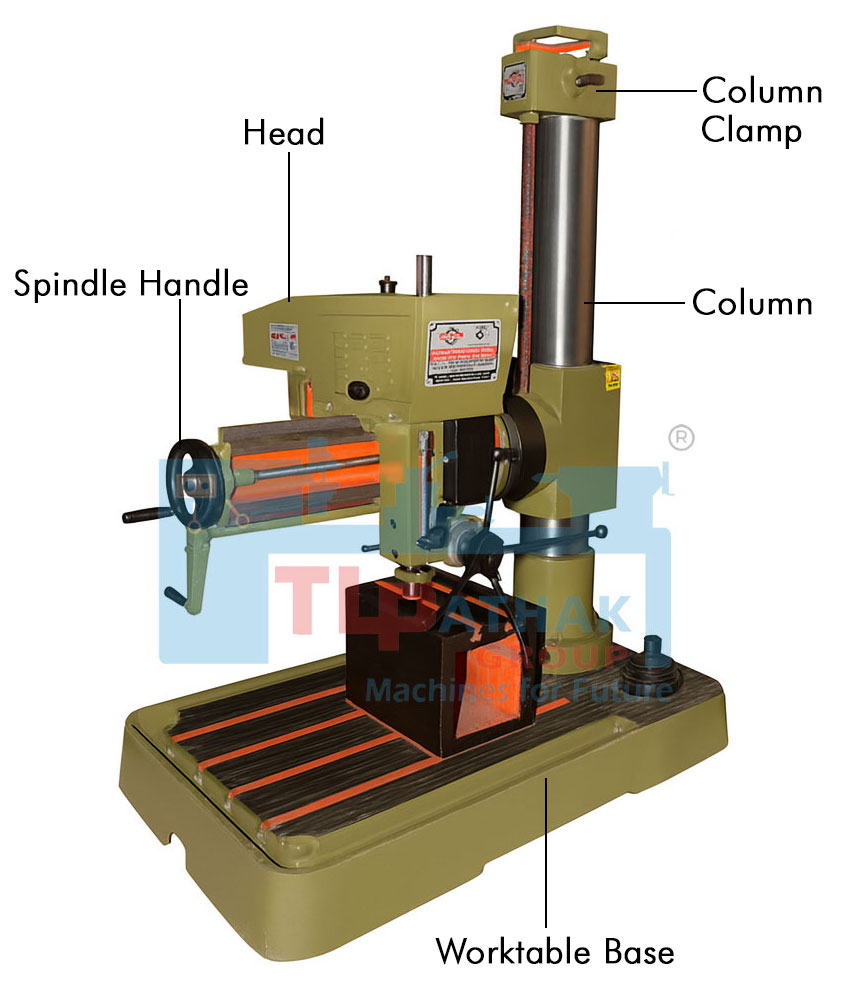

3D angled front view with all parts labeled for Radial Drill Machine
Key Components
| Base: Heavy cast-iron structure that supports the entire machine. |
| Vertical Column: Supports and guides the radial arm vertically. |
| Radial Arm: Horizontally movable arm that holds the drilling head. |
| Drill Head / Spindle Head: Slides along the radial arm; houses the spindle and motor. |
| Spindle & Chuck: Holds and rotates the drill bit. |
| Gearbox (in geared models): Provides variable speed and torque. |
| Work Table: Fixed or movable platform for positioning the job. |
| Motor: Powers the spindle and feed mechanisms. |
Ship Building
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Automotive
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
