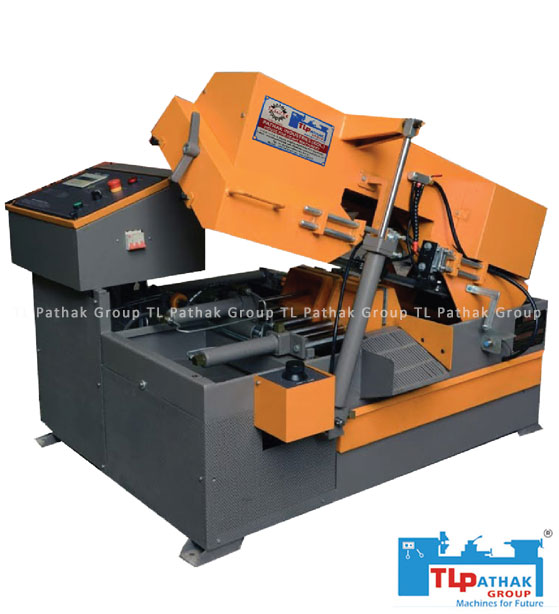

Horizontal Metal Cutting Bandsaw Machine
Cutting MachinesOur company is one of the leading companies that are engaged in providing horizontal metal cutting band saw machines to match up with the ever-increasing requirements of our customers. You are not required to do anything as this machine is fully automatic with PLC. We have manufactured this machine that has an adjustable cutting feed control valve and pressure regulator for cutting pressure adjustment.
From ₹
98,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
MODEL |
PDC |
| Round mm | 175 |
| Square mm | 150 X 150 |
DRIVE |
|
| Drive Motor | 1 H.P. 1440 RPM |
| Hydraulic Motor | 0.50 H.P./ 1440 RPM |
MACHINE SPECIFICATIONS |
|
| Coolant Pump | 0.15 H.P.440 Volts |
| Blade Speed | 20 / 40 / 60 Mtr / Mnt |
| Saw Blade Carbon or Bi Metal (mm) | 3000 x 27 x 0.9 |
| Floor Space L X W X H mm | 1630 x 1200 x 1000 |
| Net Weight (Approx) | 475 (kg) |
| Packed Weight | 650 (Approx) |
| Bar Stand (2Pcs) | 1150 x 300 x 480 |
