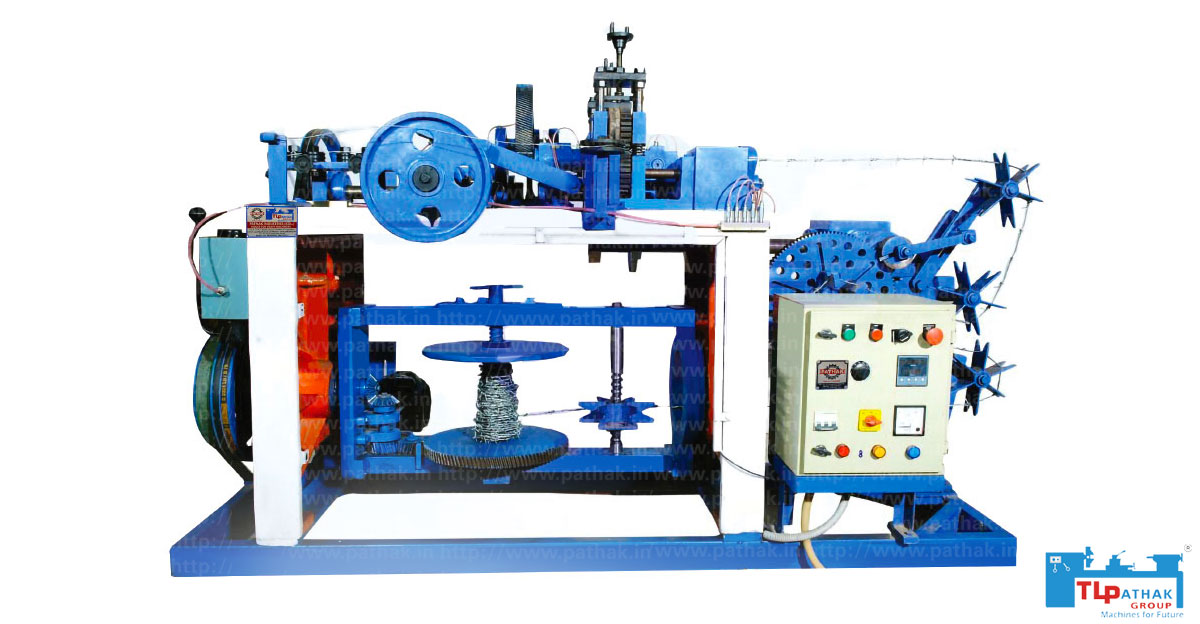

Automatic Barbed Wire Making Machine
Wire Industry MachineryWe provide this machine as the best rigidity machine. It can withstand extreme overloading. This machine can produce barbed wire from 14, 15, 16, 17 etc gauge wire at a very minimal cost. It has a very high speeding wind of approximately 180 RPM. This machine can produce both ‘GLIDDEN AND IOVA’ barbed ply wire.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PBWM-1 |
| Strand and point wire | 12/12 SWG* / i.e/ 2.64 mm diameter. |
| Strand and point wire | Hard Briught fully hot dip galvanized wire with under 30 to 55 kgs F / min |
| Producation Capacity | 500 kgs / 8 Hrs.shift for 12/12 SWG wire with 140 to 160 barbs / min Capacity to coil bundies of 400 meters (bundle size 16" dia x 10" width weight 40/50 kgs |
| Barb Spacing | Standard 3" & 4" pitch (optional 5" / 6" / etc. with charge parts) |
| Motor | 5 HP / 960 RPM |
| Net/Gross Weight | 1100 x 1400 kgs |
| Shipping Dimenstions | 2550 x 1150 x1250 mm |
| Shipping Volume | 3.70 m3 |
