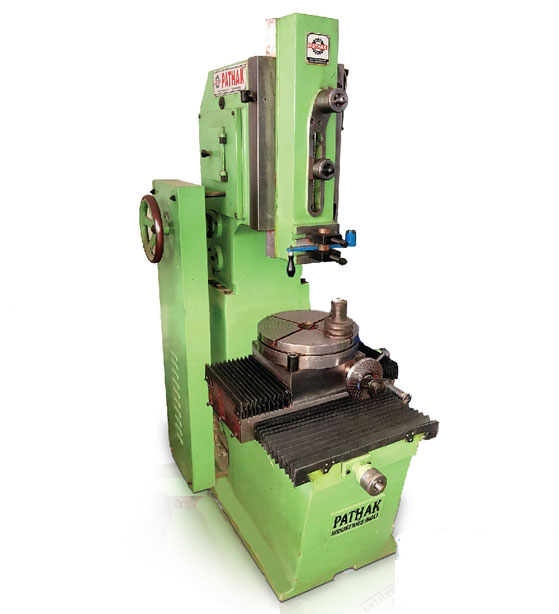

Slotting Machine
Workshop EquipmentsThe Slotting Machine by TL Pathak Group in India is a robust and versatile tool used for shaping and cutting slots in workpieces. It is designed with precision engineering and high-quality materials to ensure durability and long-lasting performance. Equipped with a powerful motor, this machine provides smooth and efficient slotting operations. It features adjustable stroke length and a sturdy worktable to accommodate different workpieces. The Slotting Machine offers precise control over slot depth and width, allowing for accurate and consistent results. With its reliability and superior craftsmanship, it is an essential tool for various industries, including manufacturing, engineering, and metalworking.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Slotting Machine Technical Specifications | SLP-1 | SLP-2 | SLP-3 | SLP-4 |
| Stroke | 150 | 250 | 300 | 450 |
| Rotary table | 275 | 375 | 500 | 900 |
| Longitudinal Movement | 200 | 280 | 300 | 600 |
| Cutting speed of ram stroke | 29,60,90 | 30,55,90 | 18,46,82 | 12,17,24/36,50,70 |
| Ram ajustment | 150 | 200 | 250 | 325 |
| Throat depth | 200 | 350 | 400 | 675 |
| H.P. adjustment | 1.5 | 2 | 3 | 7-5 H.P |
| Distance from the tool rest to the main coloum | 350 | 400 | 450 | 625 |
| Height between table & head | 300 | 375 | 450 | 7000 |
| Gross weight (kgs.) | 975 | 1450 | 1900 | 4500 kg. |
| Width depth height of machine | 800*1100*1550 | 950*1325*1825 | 1125*1550*1925 | 2000*1800*1300 |
| Size of packing case W D H | 925*1225*1725 | 1000*1400*1975 | 1250*1600*2125 | 2150*2100*1500 |
