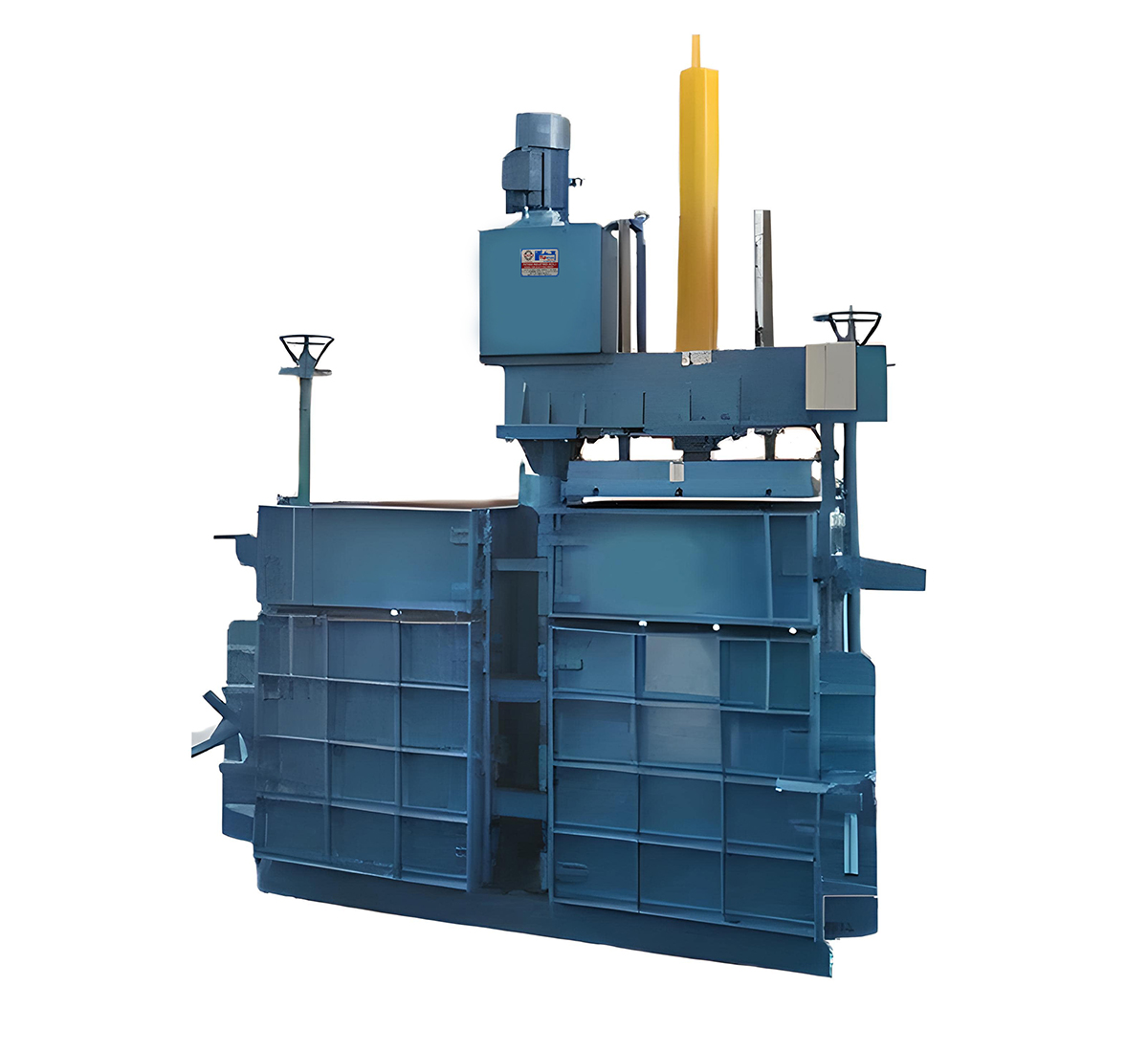

Double Chamber Single Cylinder Vertical Baler
Scrap Baling MachinesThe TL Pathak Group's Double Chamber Single Cylinder Vertical Baler is an advanced waste compaction solution designed for optimal efficiency. Featuring two chambers operated by a single hydraulic cylinder, this baler allows continuous operation, enabling material loading in one chamber while the other compresses. With user-friendly controls, safety interlocks, and an automatic bale ejection system, it ensures a seamless and secure waste management process. The vertical design conserves floor space, catering to facilities with limited areas. Versatility is a hallmark, accommodating materials like cardboard, paper, plastics, and textiles. The TL Pathak Group offers various capacities, providing customized solutions for diverse needs. This baler produces compact bales, simplifying storage and transportation, making it an ideal choice for businesses prioritizing efficient recycling and waste handling within their operations.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Capacity | 40 Ton Pressure Double Chamber Single Cylinder Baler Machine | 50 Ton Pressure Double Chamber Single Cylinder Baler Machine |
| Bale Size | 36(L)x26(W) in inch | 36(L)x26(W) in inch |
| Bale Weight | Plastic,Cartoon,Waste Paper ,100 to 150 kg | Plastic,Cartoon,Waste Paper ,100 to 150 kg |
| Chamber Size | 34(L)x26(W)x50(H) in inch | 34(L)x26(W)x50(H) in inch |
| No. of Cylinder | 1 nos. | 1 nos. |
| No. of Tie | 3 nos. | 3 nos. |
| No. of Door | 4 nos. | 4 nos. |
| Cylinder Size | 160 (Bore)x 180 (OD)x 100 (RAM)x 1100 (Stroke) mm | 170 (Bore)x 195 (OD)x 105 (RAM)x 1100 (Stroke) mm |
| Bale Eject | Swing Plate | Swing Plate |
| Oil Tank Capacity | 100 lit. | 150 lit. |
| Production Rates | 10 to 12 minutes | 10 to 15 minutes |
| Hydraulic System | Gear Pump System | Vane Pump System |
| Day Light Gap | 52 inch | 54 inch |
| Operation | Hand levers operate systems | Hand levers operate systems |
| Electric Motor | 10 H.P. Motor,3 Phase,1440 RPM,50 Hz | 10 H.P. Motor,3 Phase,1440 RPM,50 Hz |
| Overall Dimension | 108(L)x40(W)x120(H) in inch | 108(L)x40(W)x130(H) in inch |
| Body Plate | 8 mm,10 mm,30 mm | 8 mm,10 mm,30 mm |
