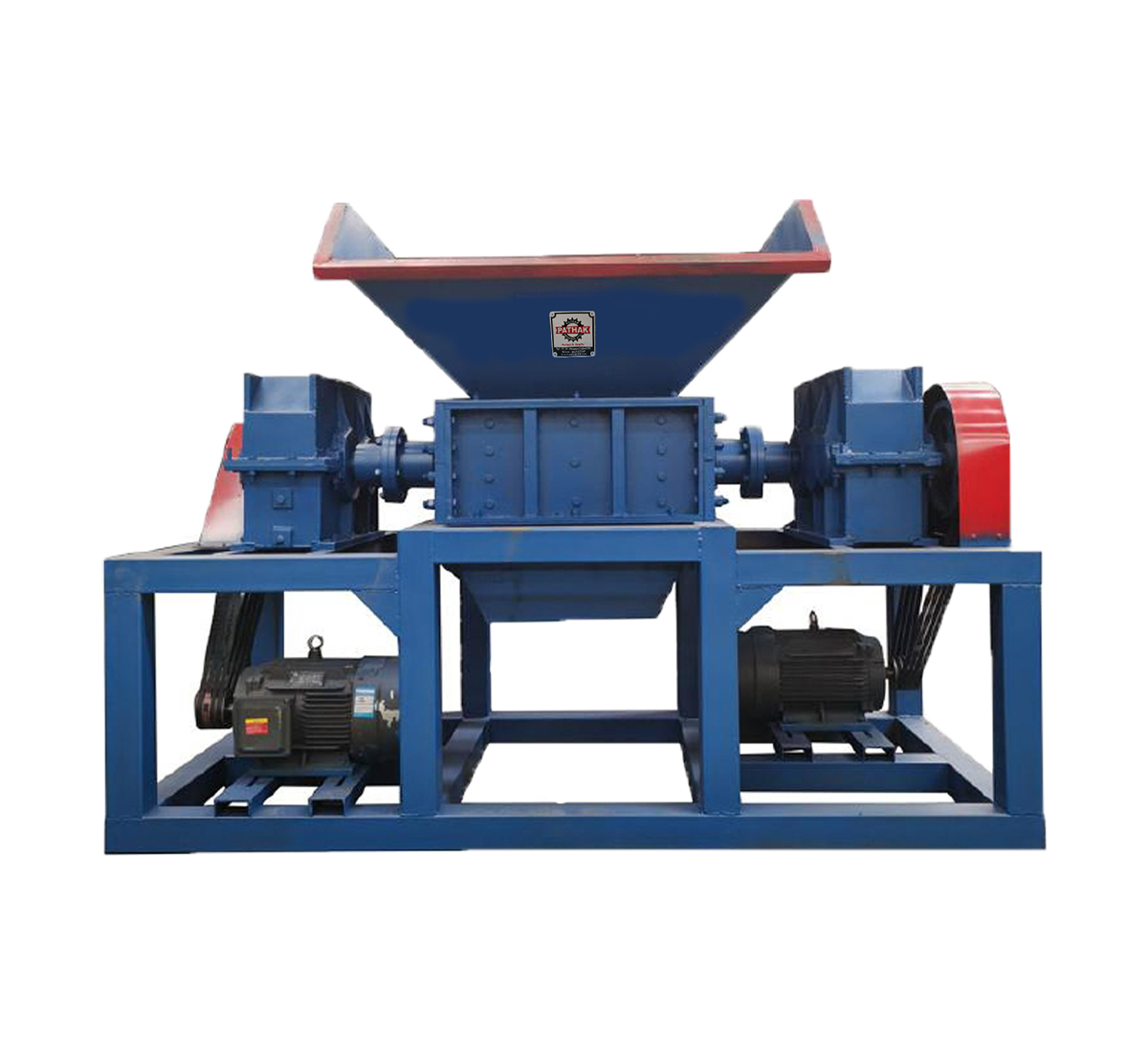

HDPE PVC Pipe Shredding Machine
Scrap Baling MachinesThe HDPE/PVC pipe shredding machine by TL Pathak Group in India is a powerful and efficient machine designed to shred various types of plastic pipes, including HDPE and PVC pipes. This machine is equipped with a high-quality cutting blade that can shred pipes into small pieces quickly and easily. The shredder is also designed with safety features such as a safety switch to prevent accidents.
The machine is easy to operate and maintain, with low noise and energy consumption. It is ideal for recycling applications, where plastic waste needs to be reduced in size for further processing.
The HDPE/PVC pipe shredding machine is built with high-quality materials to ensure durability and long service life. TL Pathak Group in India provides excellent after-sales service and technical support to ensure that the machine continues to operate at peak efficiency. Overall, this machine is a cost-effective and efficient solution for shredding plastic pipes in various industries.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPSM 1 |
| Raw Material | Plastic |
| Final Product | Plastic Granules |
| Capacity | 1000-2000 Kg/h |
| Host Size | 7.5(KW)x2 |
| Rotary Blade Size | 200x20 mm |
| Rotary Blade Quantity | 20 |
| Main Shaft Dia | 150 mm |
| Main Shaft Quantity | 2 Pcs |
| Spacer Material | WSiCr |
| Fixed Blade Material | Self Made Wear-Resisting Steel |
| Feed Port Size | 600x450 mm |
| Raw Material Size | 300 mm |
| Overall Dimension | 2200x950x1290 mm |
| Final Product Size | 20 mm |
| Power Voltage | 440 V/50 Hz/3 Phase |
| Reducer | JZQ 350x2 |
| Rotary Blade Material | 9 CrSi |
| Thickness of The Blade | 20 mm |
| Main Shaft Material | 42 CrMo |
| Control Cabinet | Intelligent System |
| Spacer Quantity | 20 |
| Fixed Tool Quantity | 20 |
| Size of Crushing Chamber | 400x360 mm |
| Weight | 2000 Kg |
