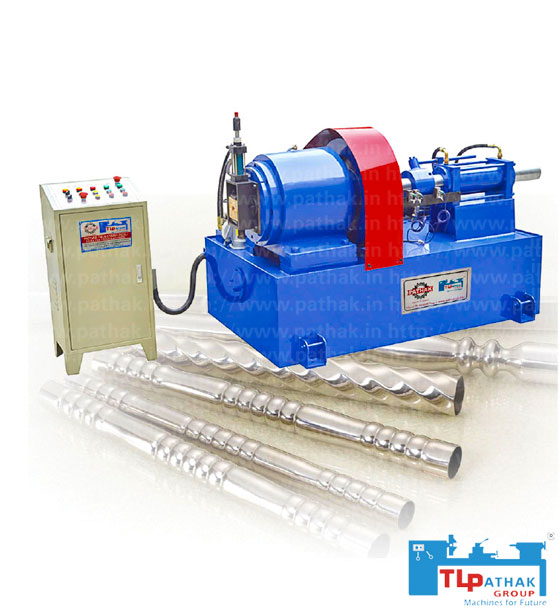

Hydraulic Pipe Embossing Machine
Other MachinesPipe embossing machine is also known as flower tube machine and we are one of the advanced exporters and manufacturers of this machine. Our machine can make all types of patterns such as round flowers, craft flowers, big head flowers, head flowers, and many more. You can also use our decorative tubes in furniture, lighting, home, and other activities as these tubes are processed by our embossing machine.
From ₹
985,000
To
1,485,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | 25 | 32 | 50 | 76 | 114 |
| Mold size(mm) | 30x300x55 | 36x300x55 | 50x300x75 | 60x400x60 | 85x300x70 |
| Tube Diameter(mm) | 12-25 | 12-25 | 25-51 | 51-76 | 38-114 |
| Thickness(mm) | 0.2-0.5 | 0.2-0.5 | 0.2-1.2 | 0.4-1.5 | 0.7-1.5 |
| Forming Length(mm) | 290 | 290 | 290 | 290 | 290 |
| Speed(m/min) | 18-72 | 18-72 | 18-72 | 48-180 | 60-240 |
| Motor Power(KW) | 3 | 3 | 4 | 7.5 | 11 |
| Weight(T) | 1 | 1 | 2 | 3 | 5 |
