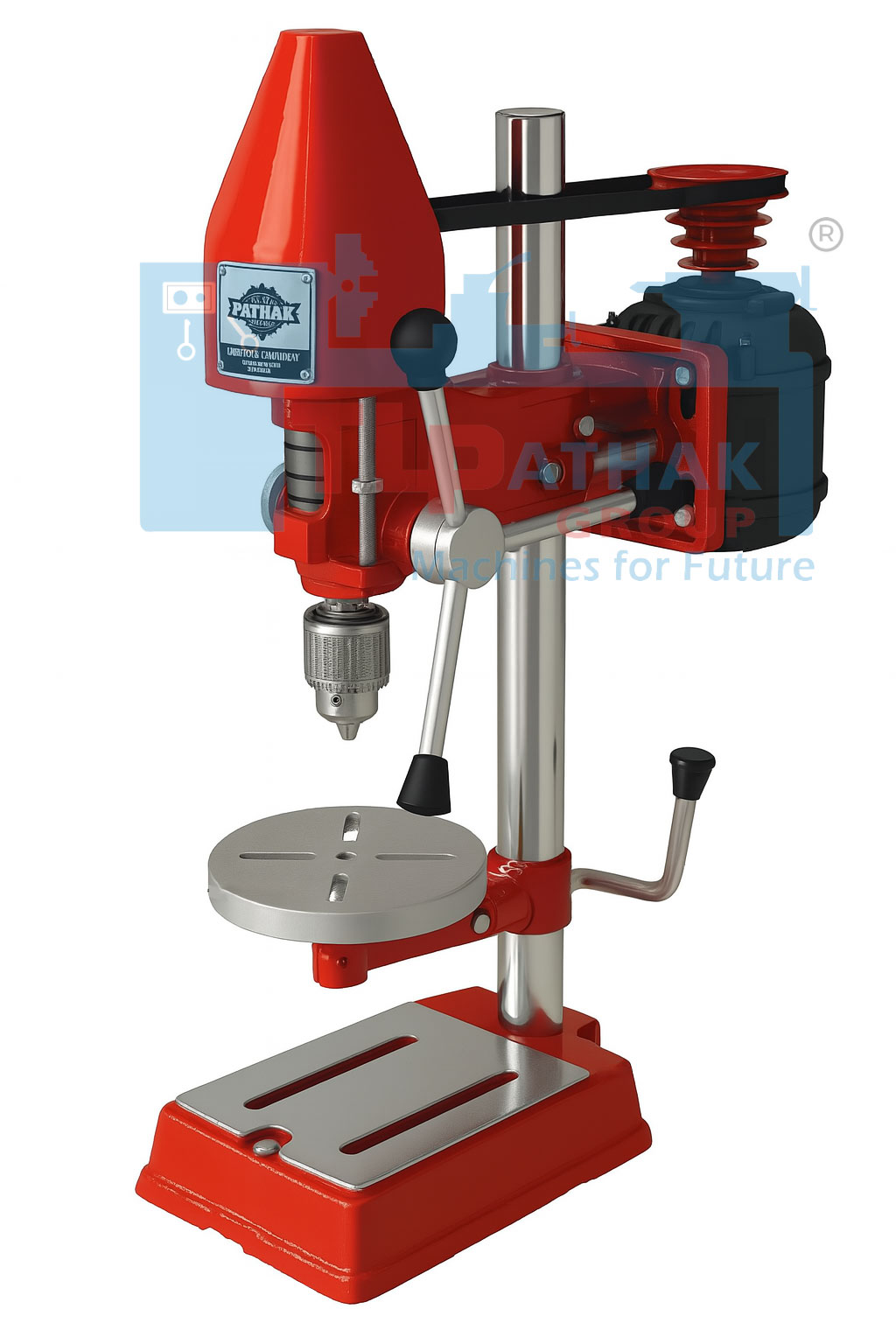

Bench Drill Machine-PD-12
Drill MachinesA Bench Drill Machine is a compact, high-precision drilling tool designed to be mounted on a workbench. It's ideal for small to medium-scale operations that require accurate, repeatable drilling in materials such as metal, wood, and plastic.
From ₹
20,000
To
35,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Drilling Machine With Magnetic Stand
| PARTICULARS | PD-12 |
| Drilling capacity in Steel | 13mm |
| Spindle Taper | JT-6/MT-2 |
| Spindle Travel | 87 |
| Pillar Diameter | 48 |
| Pillar Length | 625 |
| Distance btw center of spindle & pillar front | 150 |
| Max Distance btw Spindle & Table | 250 |
| Max Distance btw Spindle & Base | 363 |
| Table working space | 200 |
| Base Working Surface (Machined) | 175x175 |
| Overall size of base | 320x320 |
| No of Spindle Speeds | 4 |
| Range of Spindle Speeds (r p m) | 640-1040-1640-2540 |
| V Belt | A 36 |
| Motor | 1/2 H.P |
| Net Weight | 45Kg |
| Space Occupied (LxBxH) | 390x300x815 |
The colour of our bench drill machine 12 mm is red and we use 100% genuine products only for the manufacturing of this machine. We also provide a warranty on manufacturing defects. Our team also customizes the machine as per the demand of our customers about the range of the spindle speed, drilling capacity, dimension of the worktable surface, distance between spindle and column, and the weight.

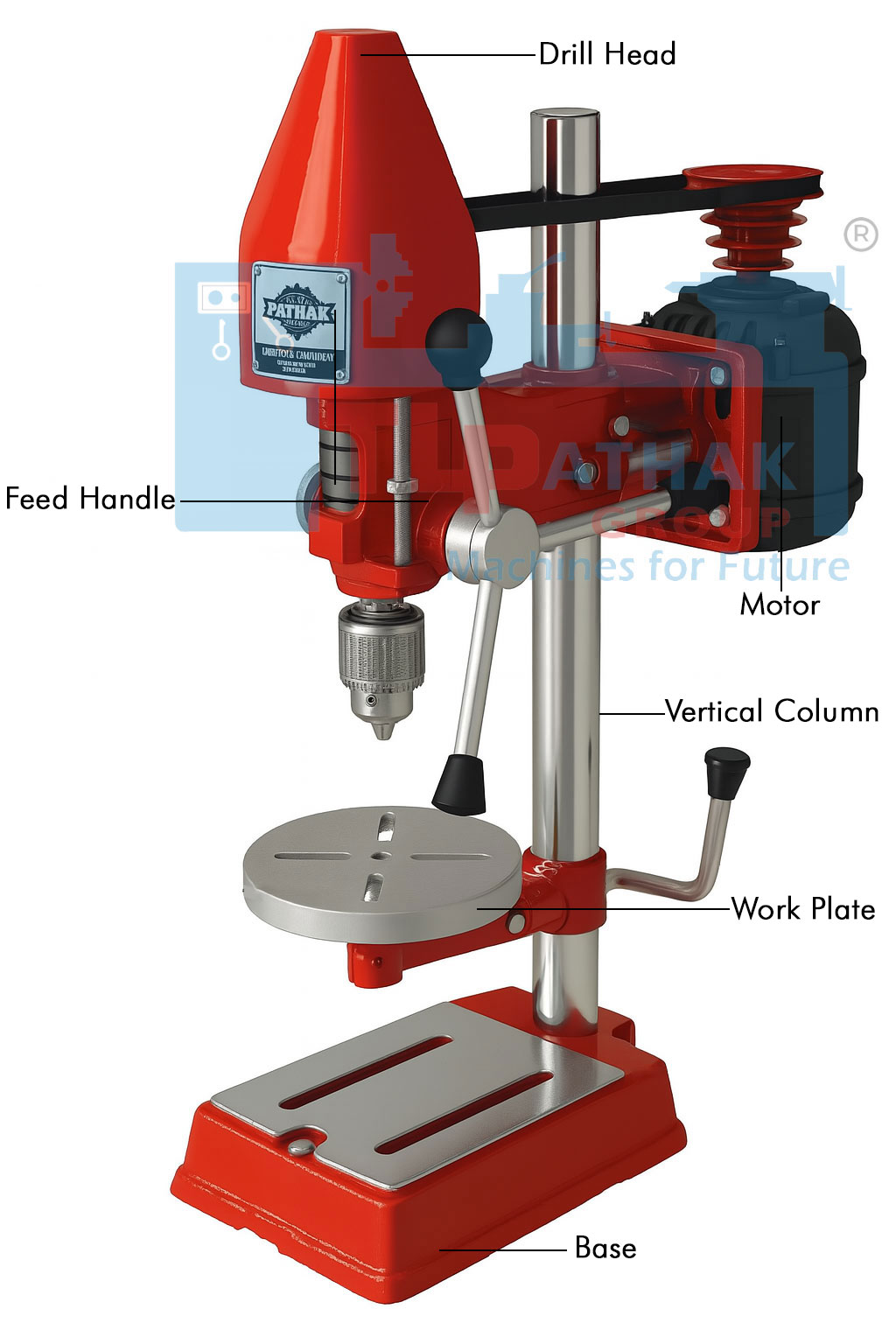

3D angled front view with all parts labeled for Bench Drill Machine
Key Components
| Drill Head: Contains the motor and spindle mechanism. |
| Motor: Powers the spindle via a belt and pulley system. |
| Feed Handle: Manually lowers the spindle and drill bit. |
| Spindle & Chuck: Holds and rotates the drill bit for cutting. |
| Quill: Supports the spindle's vertical motion. |
| Vertical Column: Provides vertical support and height adjustment for the table. |
| Work Table: Adjustable and tillable surface for positioning the workpiece. |
| Base: Heavy cast iron foundation that ensures stability and vibration control. |
