Vertical Machining Center

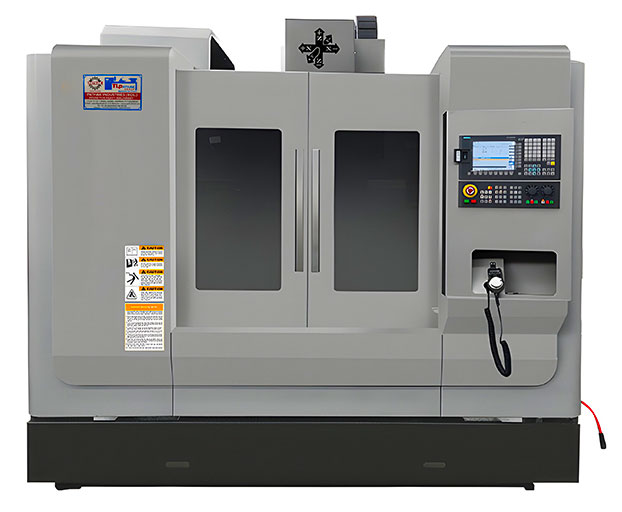

Milling MachinesThe Vertical Machining Center (VMC) by TL Pathak Group represents a pinnacle in precision engineering and advanced manufacturing technology. Designed for optimal vertical milling operations, this cutting-edge machine seamlessly blends efficiency with versatility. Its robust structure ensures stability during high-speed machining, delivering unparalleled accuracy in intricate workpieces. Equipped with state-of-the-art control systems, the VMC offers seamless programming and execution of complex tasks. The TL Pathak Group's VMC is engineered to enhance productivity across diverse industries, from aerospace to automotive. With a user-friendly interface and high-speed spindle, it empowers operators to achieve superior surface finishes and tight tolerances. This Vertical Machining Center stands as a testament to TL Pathak Group's commitment to innovation, quality, and precision in the ever-evolving landscape of manufacturing.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model Name | TLPVMC 600L | TLPVMC 650L | TLPVMC 850L | TLPVMC 855L | TLPVMC 1050L | TLPVMC 1160L | TLPVMC 1370L | TLPVMC 1580L |
| Worktable Size | 800x400 mm | 900x400 mm | 1000x500 mm | 1000x550 mm | 1000x500 mm | 1200x600 mm | 1400x700 mm | 1600x800 mm |
| T-Slots Size | 3-14x100 mm | 5-16x75 mm | 5-18x90 mm | 5-18x90 mm | 5-18x90 mm | 5-18x100 mm | 5-18x110 mm | 5-22x135 mm |
| X/Y/Z Axis Travel | 600/400/450 mm | 650/450/500 mm | 800/500/500 mm | 800/550/500 mm | 1000/500/500 mm | 1100/600/600 mm | 1300/700/700 mm | 1500/800/700 mm |
| Distance From Spindle Center to Column | 550 mm | 500 mm | 550 mm | 595 mm | 550 mm | 650 mm | 750 mm | 855 mm |
| Distance From Spindle Nose to Worktable Surface | 100-550 mm | 120-620 mm | 150-650 mm | 120-670 mm | 120-620 mm | 120-720 mm | 110-810 mm | 190-890 mm |
| Spindle Taper | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40/BT50 |
| Spindle Power | 5.5 K.W. | 5.5 K.W./7.5 K.W. | 7.5 K.W. | 7.5 K.W. | 7.5 K.W. | 11 K.W. | 11 K.W. | 11 K.W./15 K.W. |
| Max. Spindle Speed | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM |
| Max. Feed Speed | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min |
| Rapid Feed Speed (X/Y/Z) | 30/30/25 m/min | 20/20/12 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min |
| Tool Magazine Capacity | 12T/16T (optional) | 16T | 24T | 24T | 24T | 24T | 24T | 24T |
| Max. Length of Tool | 300 mm | 250 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Tool Change Time | 7 S./2.5 S. | 7 S. | 1.5 S. | 1.5 S. | 1.5 S. | 1.5 S. | 1.5 S. | 1.5 S. |
| +- Positioning Accuracy | +- 0.005 mm | +- 0.007 mm | +- 0.005 mm | +- 0.005 mm | +- 0.005 mm | +- 0.005 mm | +- 0.008 mm | +- 0.001 mm |
| +- Re-Positioning Accracy | +- 0.003 mm | +- 0.005 mm | +- 0.003 mm | +- 0.003 mm | +- 0.003 mm | +- 0.003 mm | +- 0.003 mm | +- 0.008 mm |
| Machine Dimension (LxWxH) | 1900x1700x2240 mm | 2300x2200x2400 mm | 2750x2300x2300 mm | 2800x2300x2300 mm | 2850x2300x2300 mm | 3350x2300x2550 mm | 3200x2540x2600 mm | 3800x2720x3610 mm |
| Max. Loading of Worktable | 300 kg | 400 kg | 500 kg | 600 kg | 500 kg | 800 kg | 1000 kg | 1500 kg |
| Machine Weight | 3500 kg | 3800 kg | 5300 kg | 5500 kg | 5400 kg | 6200 kg | 8200 kg | 13000 kg |
