Drilling Cum Milling Machine DM 40
Drill MachinesA Drilling Cum Milling Machine is a versatile tool that combines the operations of drilling and milling in one machine, making it ideal for workshops, tool rooms, and maintenance units. It allows users to perform various operations such as drilling, milling, boring, reaming, and tapping with precision and efficiency.
Advantages
- Performs both drilling and milling operations in a single setup.
- Saves space, cost, and time for small to medium-scale workshops.
- Rigid cast iron body for vibration-free operation.
- Ensures accuracy, stability, and durability during heavy cutting and drilling.
- Hardened and ground spindle made from alloy steel.
- Tapered bore (MT – Morse Taper) for various drill and milling tool holders.
- High accuracy bearings ensure smooth running and precision machining.
- Rectangular, precision-ground work table with T-slots for clamping work pieces.
- Can be moved longitudinally (X-axis), crosswise (Y-axis), and vertically (Z-axis).
- Hand wheels provided for precise movement in all directions.
- Multiple spindle speeds through gearbox or belt drive.
- Suitable for working with metals, alloys, wood, and plastics.
- Adjustable feed for fine drilling and milling operations.
- High drilling capacity (varies from 25 mm to 40 mm depending on model).
- Milling capacity with face and end mills for slotting, keyway cutting, and shaping jobs.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| MODEL | DM 40 |
| Capacity in Mild Steel | 40 |
| No.of Spindle Speeds | 80 to 3600 4+4=8 |
| Number of Auto Feed | .05 |
| Spindle Center to Column | 260 |
| Max. Travel of Spindle | 250 |
| Max. Dist Spindle Nose to Table | 500 |
| Max. Dist. Spindle Nose to Base | |
| Spindle Nose Bore Fitting | M.T.4 |
| Dia of Table | 228 *765 |
| Dia of RAM | 78 |
| Base Area Machined | 475 * 700 |
| Dia to Column | 108 |
| Total Height of the Machine | 1600 |
| H.P. of The Motor | 1.5 |
| RPM | 1440 |
| Vee Belt | B 56 |
| Swing | 45 L/R |
| End Mill Cap | 20 |
| Net Weight | 500 kgs |
We are one of the leading exporters ?and manufacturers of drilling cum milling machines with DM 40. We provide a comprehensive range of machines in the market with a commitment to quality and reliability. These machines are made under the supervision of our highly experienced professionals with the best quality raw material. We offer our machines at market justified rates

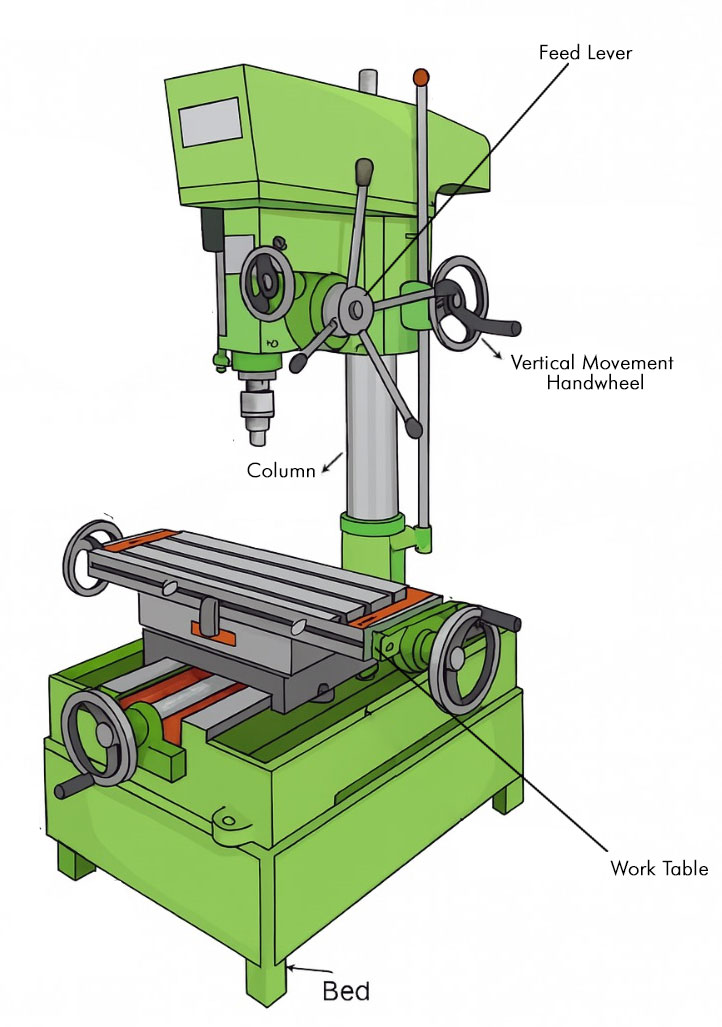

3D angled front view with all parts labeled for Drilling Cum Milling Machine DM 40
Key Features:
| Dual Operation: Combines drilling and milling functions in one compact unit. |
| Precision Table: Adjustable worktable with T-slots for clamping workpieces securely. |
| Multiple Spindle Speeds: Allows speed adjustment based on material and operation. |
| Vertical Movement: Spindle and headstock can be adjusted vertically for accurate depth control. |
| High Rigidity: Robust cast iron body ensures vibration-free operation and durability. |
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Drilling metal
Drilling wood
Drilling plastic
Machinery and equipment manufacturing
Sheet metal and chassis fabrication
