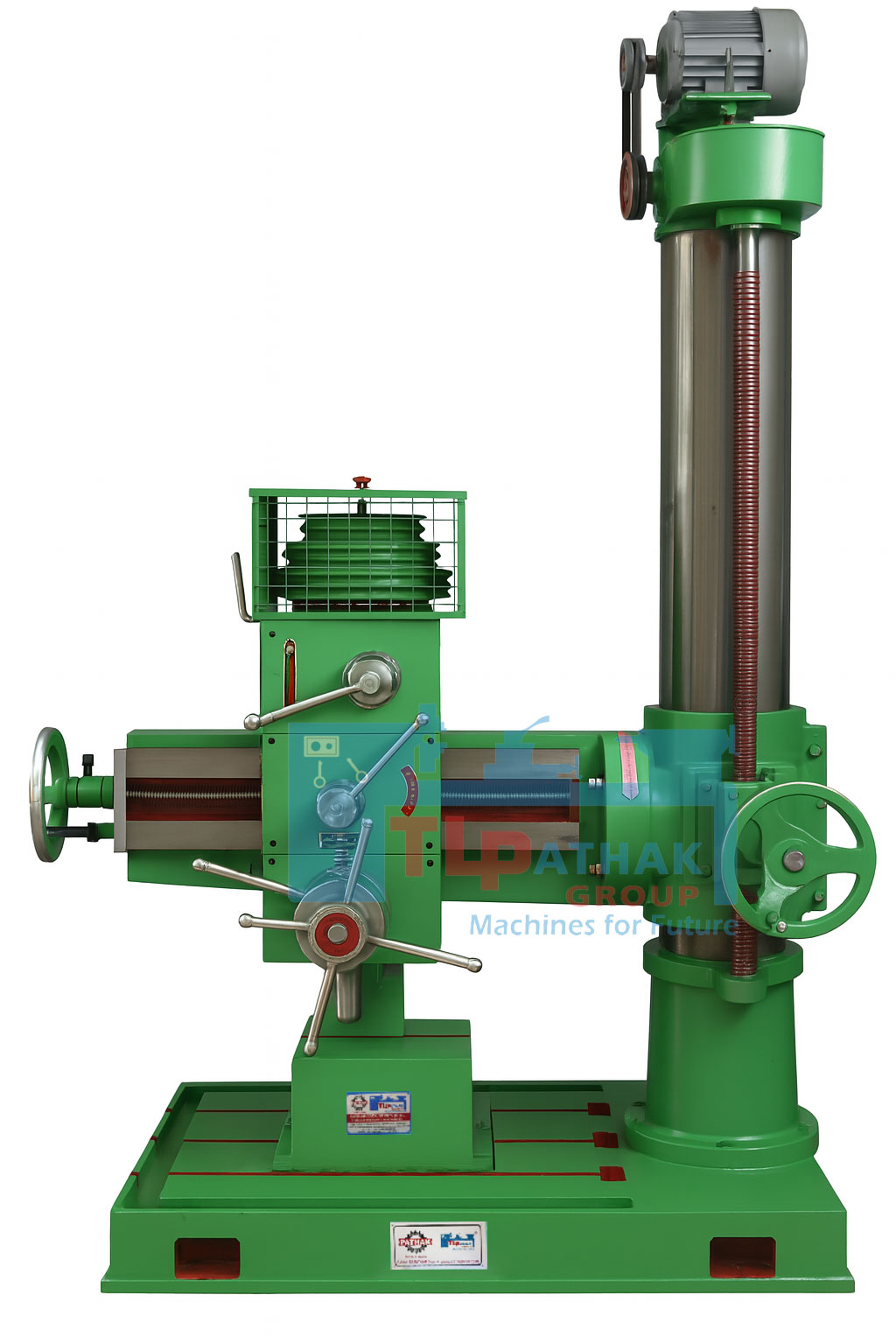

Radial Drill Machine PRD-38
Drill MachinesA Radial Drill Machine is a powerful drilling tool used to drill holes in large and heavy workpieces that cannot be easily moved. Its standout feature is the radial arm, which allows the drill head to slide and rotate over a wide area, offering excellent flexibility and reach.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | PRD-38 |
| Drilling Capacity (in steel) | 1.1/2 |
| Max.Dist.From spindle center to column | 36 |
| Min.Dist. From spindle center to column | 12 |
| Vertical travel of arm | 36 |
| Spindle travel | 7 |
| Range of spindle speeds | 190-520 |
| Power Required (R.P.M) for simple drive | 3H.P.(960) |
| Power Required (R.P.M) for Elevating Arm | - |
| Spindle Bore | M.T.NO-4 |
| Pillar Diameter | 8.3/4 |
| Spindle Diameter | 2.3/4 |
| Work Table | 15*15*12 |
| Working Surface of base | 31*21 |
| Floor Space Required | 54*27 |
| Approximate Weight | 1600kgs. |
We are considered a well-known wholesaler, trader, and exporter of radial drill machine 38 mm as we provide reliable and sustainable products with excellent performance and long functional life. Our distribution network is very wide as we are the biggest exporter in the industrial market. All of our clients are highly satisfied with our clients.

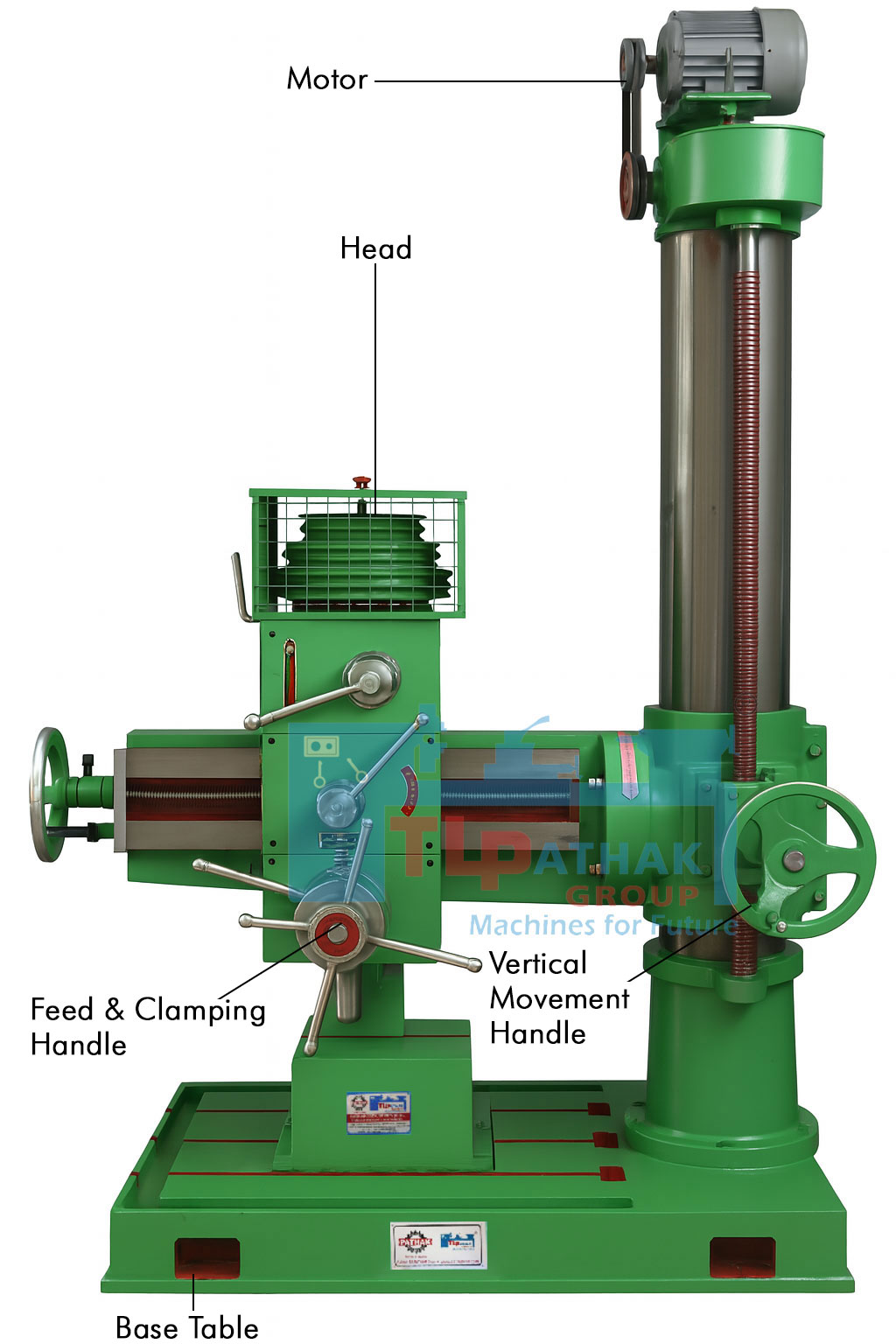

3D angled front view with all parts labeled for Radial Drill Machine
Key Features:
| Radial Arm Movement: The arm can rotate around the column and move horizontally for extended reach. |
| Vertical Column: Supports the arm and allows it to move up and down for different height adjustments. |
| Drill Head/Spindle: Mounted on the radial arm; it can be moved to drill at different positions without repositioning the workpiece. |
| Base: Large and heavy structure that supports the entire machine and workpiece. |
| Motorized Drive: Powers the spindle for smooth and consistent drilling operations. |
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Heavy Engineering
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
