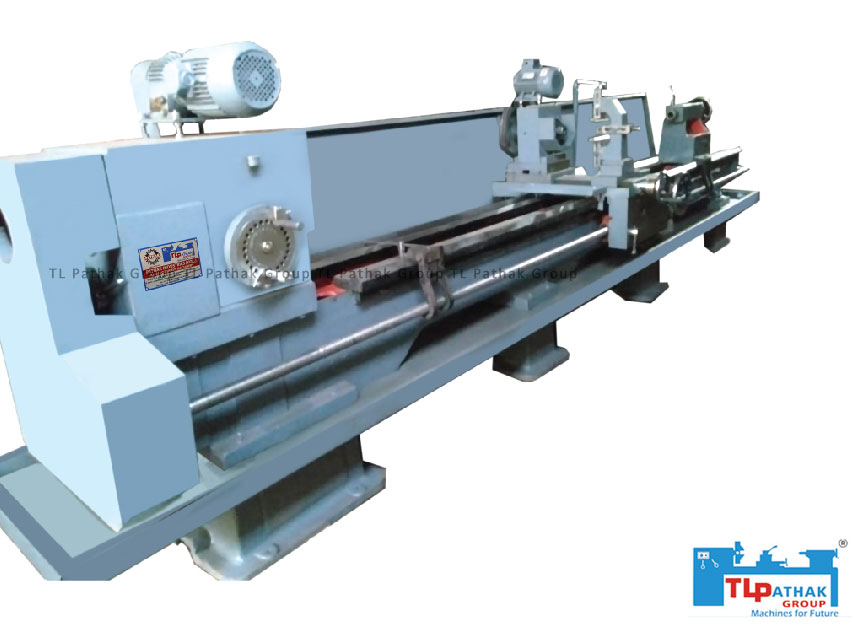

Thread Milling Machine
Threading MachinesThread mills are used for cutting internal and external threads. These machines are ideal for threading exotic materials and soft, nonferrous alloys. Here the tap breakage could be a problem sometimes. Threading Machines are the main spindle motor 3hp., Cutter head motor 2hp. Steady rest- Taper Turning Device -Dog chuck - coolant pump with tank - Chuck plate - Spindle sleeve 2 nos-dead center - change gear set for inch & mm - electric panel board. Optional Accessories: True Chuck, Machine Lamp. Thread mills also provide smaller cutting forces, allowing for the threading of thin-walled parts.
From ₹
485,000
To
1,254,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Technical Specification |
| Head stock oil bath with electronic drive of spindle |
| Milling head also oil bath |
| Bed length 1000 to 10,000mm |
| Bed width 375/450mm min/max |
| Admit between center 300 to 9000mm |
| Job diameter 20 to 300mm |
| Spindle bore 100mm |
| Main spindle rpm 3hp |
| Main spindle rpm 0.1 to 1rpm |
| Longitudinal feeds 0.1 to 200mm |
| Milling head capacity 25mm to 40mm |
| Milling head iso 40 |
| Milling head motor 2hp |
| Threading lead pitch 25 to 200mm |
| Taper turning attachment 300 to 9000mm |
| Spindle sleve (tape bore) mt-4/mt-5 |
| Lead screw diameter & pitch 50mm/2tpi |
| Number of multistarts 1440 |
| Multistarats accuracy 0.15 degree |
| Tail stock spindle diameter 50/75mm |
